Signal Spectrum Analyzer

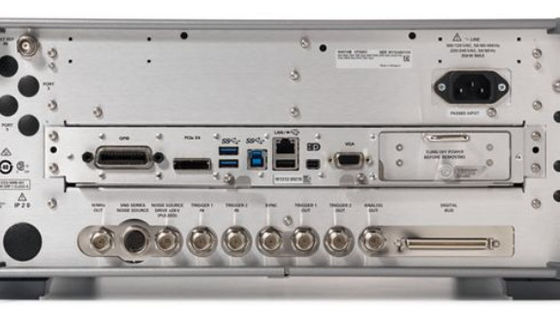

Created with Pixso. N9010B EXA Signal Analyzer 10 Hz To 44 GHz Fast Flexible General Purpose Signal Analysis
Detail Information
Frequency:
10 Hz To 44 GHz
DANL @1 GHz:
-170 DBm
Maximum Analysis Bandwidth:
40 MHz
Maximum Real-Time Bandwidth:
N/a
Phase Noise @1 GHz (10 KHz Offset):
-109 DBc/Hz
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

Fast Analysis N9010B EXA Signal Analyzer

,

44 GHz N9010B EXA Signal Analyzer

,

Keysight EXA Signal Analyzer N9010b

Product Description

Highlights

Fast, Flexible General-Purpose Signal Analysis up to 44 GHz

When enhancing a product and improving test throughput, your general-purpose signal analyzer should be ready for a wide range of challenging requirements. The fast, flexible N9010B EXA Signal Analyzer addresses diverse needs with a solid mix of speed and performance and the versatility of PathWave X-Series measurement applications.

  • See more with a wide frequency range of 10 Hz to 44 GHz with up to 40 MHz analysis bandwidth
  • Save test time in your spurious response measurements with the fast sweep capability
  • Get the most cost-effective analysis for millimeter-wave measurements
  • Measure small signals in the presence of large ones with best-in-class level accuracy, displayed average noise level (DANL), and third order intermodulation (TOI) distortion
  • Perform power measurements quickly at discrete frequency points with list-sweep mode
  • Simplify testing with PathWave X-Series measurement applications
  •




Key Specifications

 Frequency
DANL @1 GHz
Maximum Analysis Bandwidth
Maximum Real-Time Bandwidth
Phase Noise @1 GHz (10 kHz offset)
     10 Hz to 44 GHz
-170 dBm
40 MHz
n/a
-109 dBc/Hz
