Signal Spectrum Analyzer
Created with Pixso. N9042B UXA Signal Analyzer 2 Hz To 50 GHz Benchtop Type For 5G / Satellite / Radar

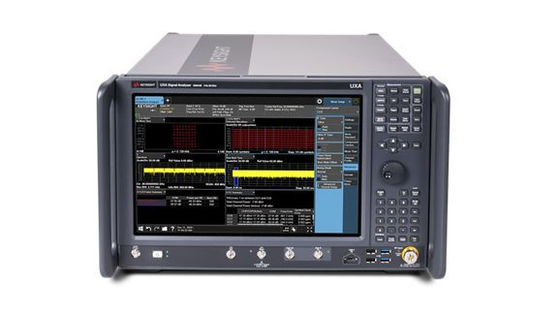

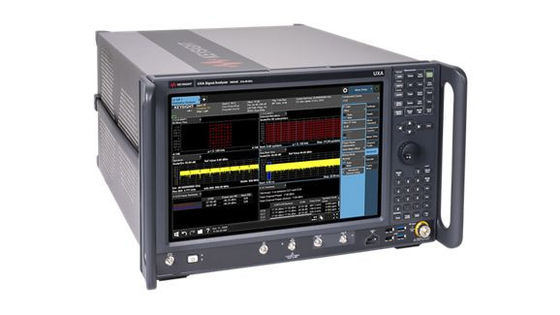

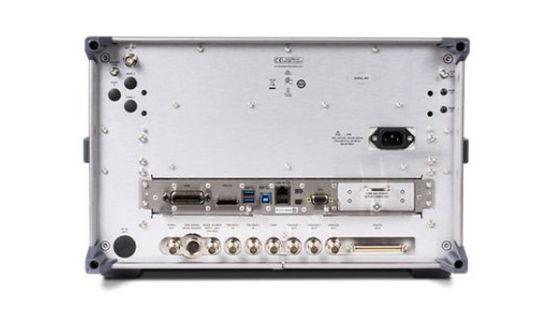

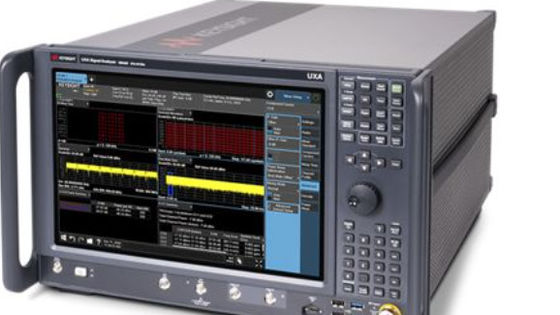

N9042B UXA Signal Analyzer 2 Hz To 50 GHz Benchtop Type For 5G / Satellite / Radar

Brand Name: Keysight
Model Number: N9042B UXA Signal Analyzer, 2 Hz to 50 GHz
MOQ: 1
Price: Negotiation
Delivery Time: 1~3 Working Days
Detail Information
Frequency:
2 Hz To 50 GHz, With V3050A 110 GHz
DANL @1 GHz:
-174 DBm
Maximum Analysis Bandwidth:
4 GHz
Maximum Real-Time Bandwidth:
2 GHz
Phase Noise @1 GHz (10 KHz Offset):
-135 DBc / Hz
Type:
Benchtop
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

UXA Signal Analyzer For Satellite

,

Benchtop Type UXA Signal Analyzer

,

UXA Signal Analyzer For 5G

Product Description

Highlights

Test the real performance of your millimeter-wave (mmWave) innovations in 5G, satellite, radar, and more with our N9042B UXA X-Series signal analyzer and measurement applications. The N9042B provides the industry's widest analysis bandwidth and deepest dynamic range to help you solve your most difficult mmWave challenges — tight design margins and timelines, complex modulation, and stringent standards.

  • Ensure your designs meet the latest standards with ready-to-use measurement applications and signal analysis software
  • See signals clearly with an unbanded, preselected sweep from 2 Hz to 50 GHz and 4 GHz of analysis bandwidth
  • Test the true performance of your 5G NR transmitter with the industry's best error vector magnitude (EVM)
  • Find out-of-band emissions or spurs quickly in your radar designs with the industry's best swept displayed average noise level (DANL)
  • Develop high-throughput satellite communication designs with 4 GHz of corrected analysis bandwidth

Key Specifications

Bandwidth Options:
1 GHz
1.5 GHz
2 GHz
4 GHz
DANL @1 GHz:
-174 dBm
Form Factor:
n/a
Frequency:
2 Hz to 50 GHz, with V3050A 110 GHz
Frequency Options:
26.5 GHz
44 GHz
50 GHz
with V3050A 50 GHz to 67 GHz
90 GHz
110 GHz
Height:
6U
Maximum Analysis Bandwidth:
4 GHz
Maximum Frequency:
50 GHz
Maximum Real-Time Bandwidth:
2 GHz
Overall Amplitude Accuracy:
± 0.24 dB
Performance Level:
◆◆◆◆◆◆
Phase Noise @1 GHz (10 kHz offset):
-135 dBc / Hz
Type:
Benchtop
TOI @1 GHz (3rd Order Intercept):
+22 dBm
