| Brand Name: | Rohde and Schwarz |
| Model Number: | FSV3030 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |

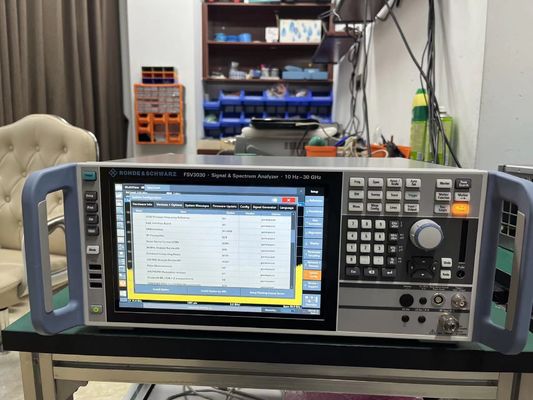

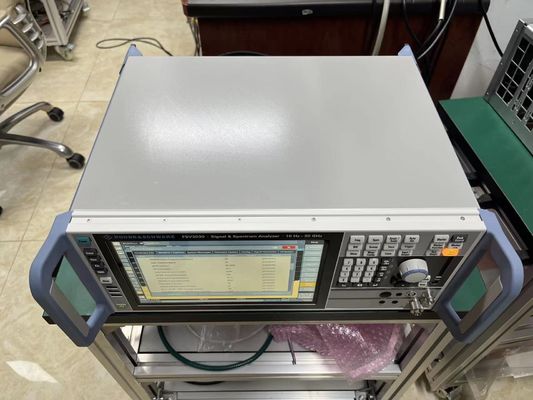

The Rohde & Schwarz FSV3030 Signal and Spectrum Analyzer features functions that make complex measurements fast and easy. Setting up RF parameters with touchscreen gestures is as easy as using your smartphone. The auto set feature automatically sets the most important parameters such as frequency, level and gating. The SCPI recorder, which translates manual operation into remote control command scripts, is the dream of any test system software engineer. The Rohde & Schwarz FSV3030 has been designed for high-speed measurements. Production lines benefit from fast measurement times for spectral measurements, highspeed signal demodulation and rapid switching between different measurement modes.
With 200 MHz of analysis bandwidth, the Rohde & Schwarz FSV3030 is ideal for analyzing wireless communications signals in R&D, system testing, verification and production. It allows capturing of two neighboring 5G NR carriers at once. This saves measurement time and makes it possible to analyze interactions and timing between the carriers. With the optional YIG bypass, the 200 MHz bandwidth is available up to the maximum frequency. The FSV3030 features an excellent dynamic range, which is beneficial not only for spectral measurements but also for analyzing and demodulating signals with a high crest factor, such as OFDM signals or signals with a high modulation order. Excellent EVM values better than 1% are possible with 160 MHz wide WLAN signals and also for 5G NR signals.
| FSV3-B1 | Side Carrying handles |
| FSV3-B10 | External Generator Control (SL) |
| FSV3-B11 | YIG preselector bypass (SL) |
| FSV3-B18 | Spare solid state drive |
| FSV3-B20 | Hard drive removable |
| FSV3-B24 | RF-Preamplifier, 30dB, 10 MHz to 30 GHz |
| FSV3-B25 | Electronic Attenuator, 0-25 dB in 1 dB steps (SL) |
| FSV3-B28V | 28V BNC connector for noise source control |
| FSV3-B3 | AM/FM demodulator for listening |
| FSV3-B4 | OCXO Precision frequency reference |
| FSV3-B5 | Additional Interfaces |
| FSV3-B6 | 10 gigabit ethernet port for instrument control |
| FSV3-K10 | GSM/EDGE/EDGE evolution/VAMOS measurements (SL) |
| FSV3-K100 | EUTRA/LTE FDD Downlink Measurments (SL) |
| FSV3-K101 | EUTRA/LTE FDD Uplink Measurments (SL) |
| FSV3-K102 | EUTRA/LTE Advanced Downlink Measurements (SL) |
| FSV3-K103 | EUTRA/LTE Advanced Uplink Measurements (SL) |
| FSV3-K104 | EUTRA/LTE TDD Downlink Measurements |
| FSV3-K105 | EUTRA/LTE TDD Uplink Measurments (SL) |
| FSV3-K106 | EUTRA/LTE NB-loT Downlink Measurements (SL) |
| FSV3-K144 | 5G NR R16 Extension for UL/DL (SL) |
| FSV3-K145 | 5G NR R15 UL Measurements (SL) |
| FSV3-K147 | 3GPP 5G-NR Combined DL ACLR/SEM and EVM Measurements (SL) |
| FSV3-K148 | 5G NR R16 Extension for UL/DL (SL) |
| FSV3-K18 | Power Amplifier Measurements (SL) |
| FSV3-K18D | Direct DPD Measurements (SL) |
| FSV3-K18F | Freq. Resp. Measurements (SL) |
| FSV3-K30 | Noise figure and gain measurements (SL) |
| FSV3-K33 | Security Write Protection for SSD (SL) |
| FSV3-K40 | Phase noise measurements (SL) |
| FSV3-K54 | EMI Measurements (SL) |
| FSV3-K544 | User defined frequency correction by SnP file |
| FSV3-K6 | Pulse measurements (SL) |
| FSV3-K60 | Transient Measurements (SL) |
| FSV3-K60C | Transient Measurements with chirp analysis (SL) |
| FSV3-K60H | Transient Measurements with hopping analysis (SL) |
| FSV3-K7 | Analog Modulation Analysis for AM, FM, PM (SL) |
| FSV3-K70 | Vector signal analysis (SL) |
| FSV3-K703 | 1 GHz frequency reference input and output |
| FSV3-K70M | Multi-modulation analysis (SL) |
| FSV3-K70P | BER Measurements with PRBS Data (SL) |
| FSV3-K70P | BER Measurements with PRBS Data (SL) |
| FSV3-K72 | 3GPP FDD (WCDMA) BS measurements (incl. HSDPA and HSDPA+) |
| FSV3-K73 | 3GPP FDD (WCDMA) MS measurements (incl. HSUPA and HSUPA+) |
| FSV3-K9 | Measurements with NRP Power sensors (SL) |
| FSV3-K91 | WLAN 802.11a/b/g Measurements (SL) |
| FSV3-K91AC | WLAN 802.11ac Measurements (SL) |
| FSV3-K91AX | WLAN 802.11ax Measurements (SL) |
| FSV3-K91N | WLAN 802.11n Measurments (SL) |
| FSV3-K91P | WLAN 802.11 a/b/g measurements (SL) |
Specifications for the ROHDE & SCHWARZ FSV3030 Signal and Spectrum Analyzer Include:
| Frequency Range | 10 Hz to 30 GHz |
| Bandwidth | 28 MHz (Up to 200 MHz) |
| Displayed average noise level (DANL) | –151 dBm (typ.) |
| Total measurement uncertainty | 0.29 dB |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
