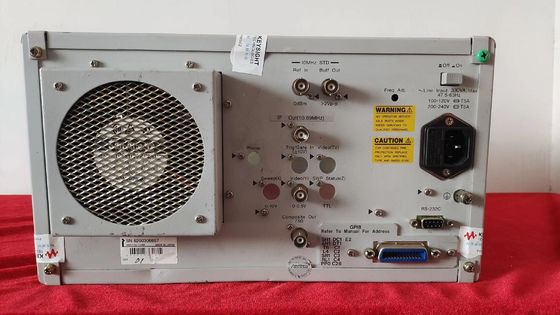

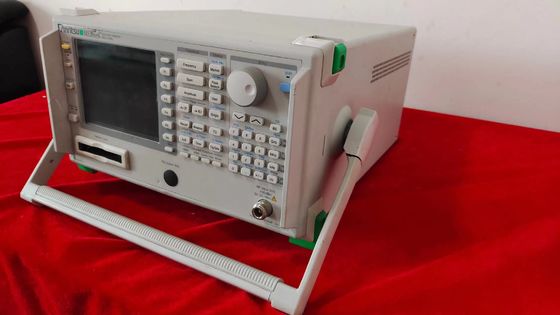

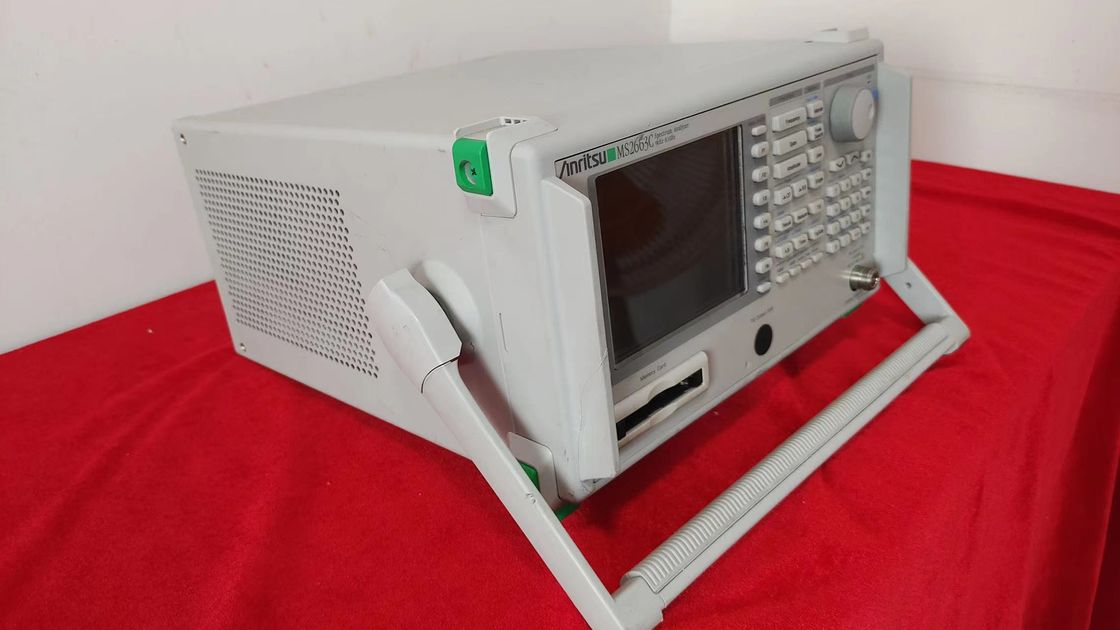

Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications

Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications

  • Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications
  • Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications
  • Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications
Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications
Product Details:
Place of Origin: Japan
Brand Name: Anritsu
Model Number: MS2663C
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: RF Spectrum Analyzer Frequency: 9 KHz - 8.1 GHz
Average Noise Level: -115 DBm - +30 DBm Form Factor: Benchtop Plug-In Portable
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Anritsu MS2663C

,

RF Spectrum Analyzer For Mobile Communications

,

9 KHz To 8.1 GHz Anritsu Spectrum Analyzer

Anritsu Spectrum Analyzer MS2663C 9 kHz to 8.1 GHz Spectrum Analyzer

Description of Anritsu MS2663C

The MS2663C covers a frequency range of 9 kHz to 8.1 GHz. This allows measurement of spurious frequencies of up to three times greater than the frequency bands used worldwide for mobile communications. The MS2663C has superior basic performance such as high C/N ratio, low distortion, and high frequency/level accuracies and are easy to operate. The MS2663C has a Measure function for evaluation of radio equipment (frequency counter, C/N, adjacent channel power, occupied frequency bandwidth, burst average power, and template decision function), and enables the Two-screen display and FM demodulation waveform display. The large selection of options means that a wider range of applications can be handled at reasonable cost.

Features:

  • Frequency counter
  • C/N
  • Adjacent channel power
  • Occupied frequency bandwidth
  • Burst average power
  • Noise power
  • PASS/FAIL limit lines
List of Options
01 Reference crystal oscillator
02 Narrow resolution bandwidth
04 High-speed time domain sweep
06 Trigger/gate circuit
07 AM/FM demodulator
08 Pre-amplifier
10 Centronics interface
12 QP detector
14 PTA parallel I/O
15 Sweep signal output
20 Tracking generator



Reference crystal oscillator improves accuracy
Narrow resolution bandwidth 30, 100, 300 Hz
High-speed time domain sweep 1.25 μs/div
Trigger/gate circuit Pre-trigger and post trigger available
AM/FM demodulator Outputs to loudspeaker or earphone connector
Pre-amplifier 100 kHz to 3 GHz, 20 dB
Centronics interface GPIB cannot be installed simultaneously
QP detector Requires Narrow resolution bandwidth option
PTA parallel I/O Cannot be installed with the Centronics interface option
Sweep signal output X, Z
DC coupled input Requires Narrow resolution bandwidth option
Tracking generator Built-in
Television monitor (Multi) M-NTSC, B/G/H/I/D PAL
75 W input Cannot be installed with QP detector, DC coupled input, and Tracking generator simultaneously
75 W tracking generator Cannot be installed with QP detector, DC coupled input, and Tracking generator simultaneously



Our service



One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.





FAQ


1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.



Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications 0Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications 1Anritsu MS2663C RF Spectrum Analyzer 9 KHz To 8.1 GHz For Mobile Communications 2
