Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In

Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In

  • Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In
  • Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In
  • Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In
Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight Agilent
Model Number: N1922A
Payment & Shipping Terms:
Minimum Order Quantity: 1 PCS
Price: Negotiation
Packaging Details: Carton
Delivery Time: 5-7 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Product Name: Power Sensor Frequency Range: 50 MHz To 40 GHz
Power Measurements: -35 DBm To +20 DBm Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Form Factor: Plug-In
High Light:

Keysight N1922A Wideband Power Sensor

,

50 MHz to 40GHz Wideband Power Sensor

,

Plug In Wideband Power Sensor

Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz to 40GHz

Description of Keysight Agilent N1922A P-Series Wideband Power Sensor



The N192XA sensors are the first to provide internal zero and calibration, by integrating a DC reference source and switching circuits into the power sensor. This feature eliminates the multiple connections associated with using an external calibration source, thus minimizing connector wear, test-time and measurement uncertainty.



Features of N1922A Power Sensor

  • Zero and calibrate while connected to the DUT
  • -35 dBm to +20 dBm wide dynamic range for peak power measurements
  • Calibration factors, linearity, temperature and bandwidth correction data stored in EEPROM
  • Precision 2.4mm connector as standard
  • Sensor cable fixed to sensor. Available cable lengths are 1.5m (5ft), 3m (10ft) and 10m (31ft)

The P-Series wideband power sensors are designed specifically for operation with the P-Series power meters for wide bandwidth power and time measurements. These sensors are the only Keysight power sensors that have their cable permanently wired (hard-wired) into the sensor. This provides better wide bandwidth specifications compared to having a removable cable. Refer to the Sensor Cable Lengths section in this guide for part number and cable length information. The standard P-Series power sensors include: – Power sensor 50 MHz to 18 GHz, order N1921A – Power sensor 50 MHz to 40 GHz, order N1922A – Documentation CD-ROM



List of Options

0B1 Add Manual Set
105 Fixed Cable Option Length 1.5M (5 Ft.)
106 Fixed Cable Option Length 3M (10 Ft.)
106 FIXED 3M (10FT) CABLE LENGTH
107 Fixed Cable Option Length 10M (31 Ft.)
1A7 Certificate of compliance calibration - ISO 17025 with test data, printed
A6J Certificate of compliance calibration - ANSI Z540 with test data, printed
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)











Our service


One-stop service from manufacture to shipping.

1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.

FAQ


1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide

2. What is your payment term?
T/T payment before shipment..
3. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

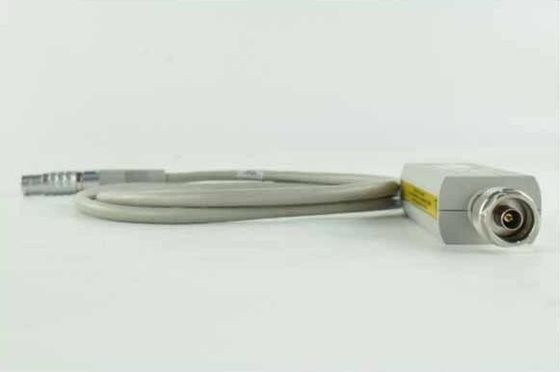

Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In 0

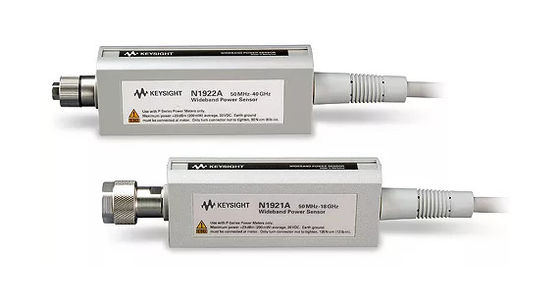

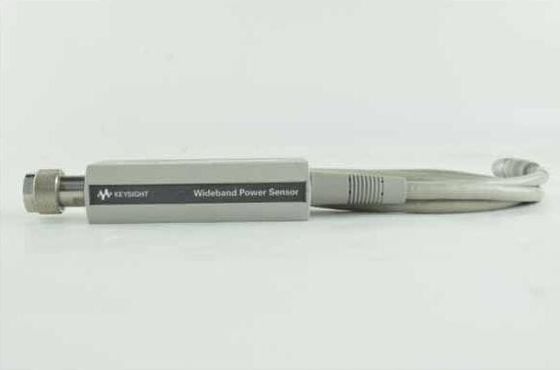

Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In 1Keysight Agilent N1922A P-Series Wideband Power Sensor 50 MHz To 40GHz Plug In 2
