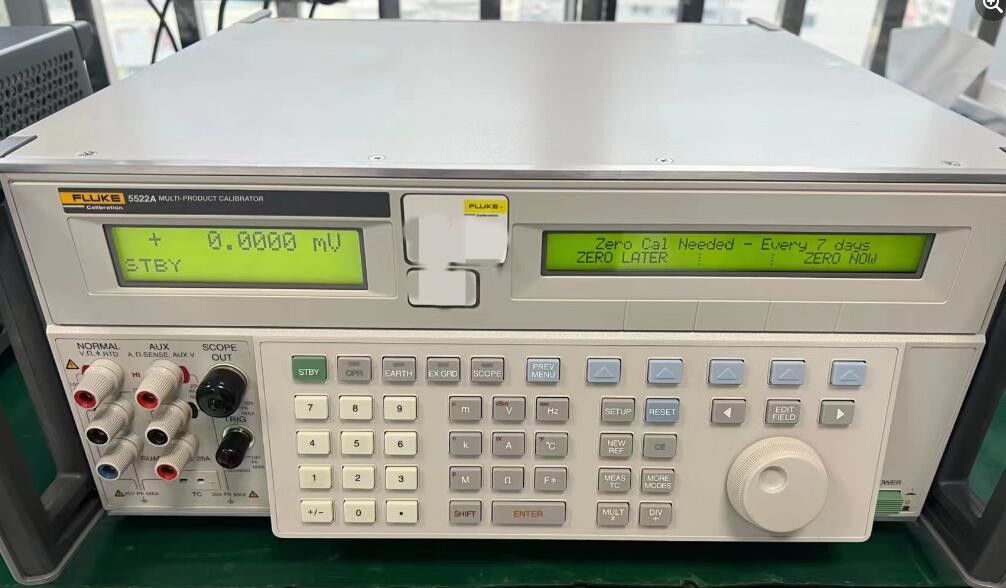

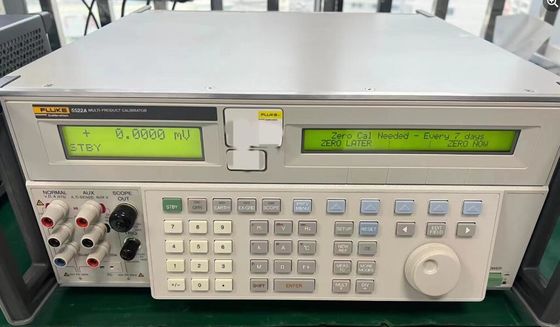

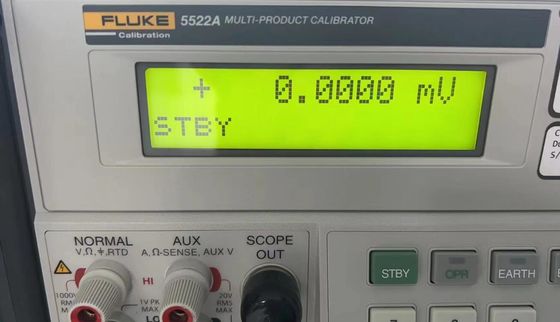

Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment

Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment

  • Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment
  • Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment
  • Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment
Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment
Product Details:
Place of Origin: USA
Brand Name: Fluke
Model Number: 5522A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1~3 working days
Payment Terms: T/T,Western Union, , MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Model Number: 5520A Brand Name: Fluke
Form Factor: Benchtop / Rackmount Frequency: 10 MHz
Condition: Used,Full Tested Interfaces: RS-232, IEEE 488

Used Fluke 5522A Multifunction Calibrator Multi-Product Test Equipment



Product Description Of Fluke 5522A



The 5522A Multi-Product Calibrator addresses a wide calibration workload and comes with internal and external protection features that protect it against damage and make it easier to transport for on-site or mobile calibration.

It is the ideal calibrator for metrology professionals who need to perform resistance calibration, voltage calibration, current calibration and more, and who want a transportable instrument that offers them a high return on investment.



The 5522A is a voltage calibrator, a resistance calibrator, a current calibrator and much more. It sources direct voltage and current, alternating voltage and current with multiple waveforms and harmonics, two simultaneous voltage outputs or voltage and current to simulate dc and ac power with phase control, resistance, capacitance, thermocouples and RTDs.

The 5522A can also measure thermocouple temperature, and pressure using one of 29 Fluke 700 Series pressure modules. Two options add the capability to calibrate oscilloscopes either 600 MHz or 1.1 GHz. And the 5520A-PQ Power Quality Option enables the 5522A to calibrate power

quality instrumentation to the standards of the IEC and other regulatory agencies.



The 5522A calibrator covers many of the electronic test tools you use to keep your company up and running, including:



  • Current clamps and clamp meters
  • Thermocouples and RTDs
  • Process calibrators
  • Data loggers
  • Strip and chart recorders
  • Watt meters
  • Power harmonics analyzers
  • Panel meters
  • Graphical multimeters
  • Power quality analyzers (with option)
  • Analog or digital handheld and bench oscilloscopes to 600 MHz or 1.1 GHz (with options)



Features:

  • Calibrates a wide variety of electrical test equipment
  • Robust protection circuits prevent costly damage from operator error
  • Resistance calibrator, voltage calibrator, current calibrator and more
  • Redesigned carrying handles make the 5522A easy to transport
  • Rugged optional carrying case with built-in handles and wheels and removable front/rear access doors for in-situ calibration in almost any environment
  • Remarkably affordable



List of Options:



1GHZ



1100 MHz / Oscilloscope Calibration Option



6



600 MHz / Oscilloscope Calibration Option



PQ



Power Quality Option



PQ/1GHz



Multiproduct Calibrator with Power Quality and 1100 MHz Oscilloscope Calibration Options



PQ/6



Multiproduct Calibrator with Power Quality and 600 MHz Oscilloscope Calibration Options



SC1100









Technical Parameters:

Summary Specifications

Function & Range
Direct volts 0 to ± 1020 V
Direct Current 0 to 20.5 A
Alternating volts 1 mV to 1020 V
10 Hz to 500 kHz
Volt*Hertz 1000 V@ 10 kHz/330 V@100 kHz
Alternating current 29 μA to 20.5 A
10 Hz to 3s0 kHz
Waveforms Sine, square, triangle, truncated sine
Resistance 0 MΩ to 1100 MΩ
Capacitance 220 pF to 110 mF
Power (phantom loads) 20.9 kW
Phase control 0.01°
Thermocouple (source and measure temperature) B, C, E, J, K L N R, S, T, U
10 μV/°C
RTD (source temperature) Pt 385-100 Ω, Pt 3926-100 Ω Pt 3916-100 Ω,
Pt 385-200 Ω, Pt 385-500 Ω, Pt385 1000 Ω,
PtNi 385-120 Ω, (Ni120), Cu 427 10 Ω

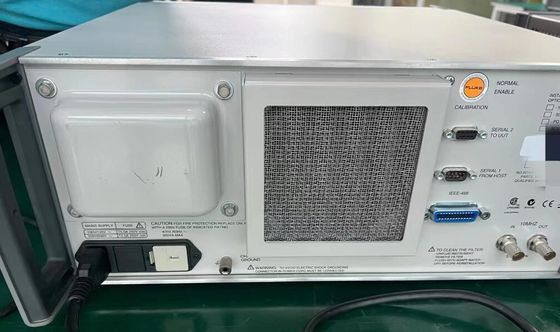

Interfaces RS-232, IEEE 488
Phase lock Yes
Frequency uncertainty <2.5 ppm
External frequency reference (10 MHz) Yes
Calibration Documentation 17025 accredited report of calibration included
Oscilloscope calibrator (optional) Levelled sine wave from 5 mV to 5.5 Vpp max, frequencies 50 kHz to 600 kHz and 3.5 Vpp max to 1100 MHz; edge rise times of < 300ps, multiple trigger functions, lowest dc, square wave and timing uncertainty
Power calibrator (optional) Composite harmonic, flicker simulation, sags and swells simulation modes
