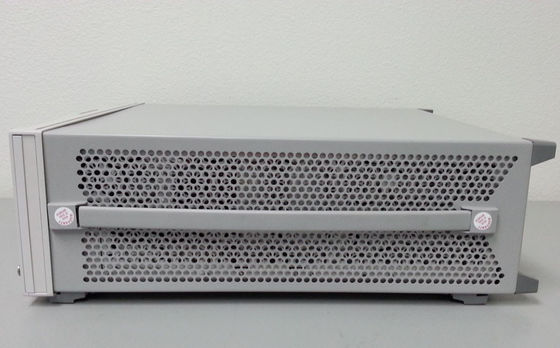

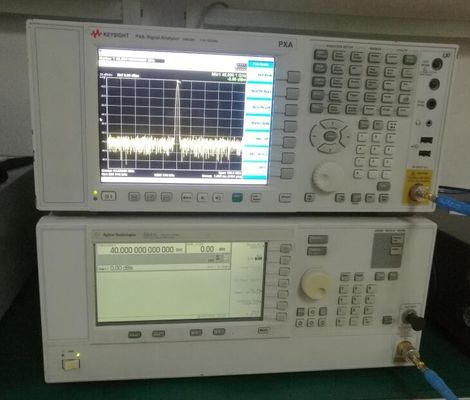

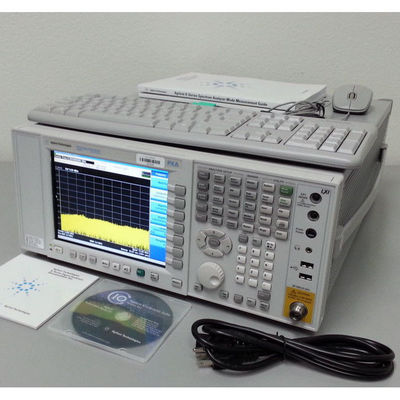

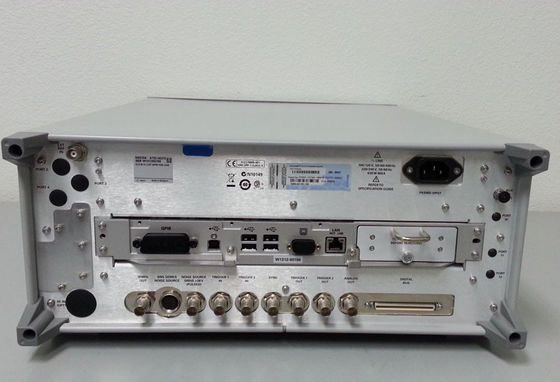

Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier

Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier

  • Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier
  • Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier
  • Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier
  • Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier
Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight Agilent
Model Number: N9030A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Carton
Delivery Time: 1~3 working days
Payment Terms: T/T, L/C, Paypal, Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Display Modes: Normal, Max Hold, Average, Persistence Weight: 2.4 Lb (1.1 Kg)
Dynamic Range: >90 DBc Trigger Modes: Edge, Pulse, Video, Slope, Alternate
Amplitude Accuracy: ±0.19 Input Impedance: 50 Ω
Dimensions: 4.7 X 8.7 X 1.7 In (120 X 220 X 44 Mm) Sweep Speed: 20 μs/div To 10 S/div

Product Description:

Signal Spectrum Analyzer is a powerful and versatile frequency spectral analyzer designed to meet the most demanding requirements of signal analysis. This device boasts a frequency range of 3 Hz to 50 GHz, 50 Ω input impedance, USB 2.0 output connector, 2.4 Lb (1.1 Kg) weight, and a dynamic range greater than 90 DBc. It is an ideal tool for analyzing spectral signals, enabling users to identify, measure and monitor signals in a variety of applications. This Signal Spectrum Analyzer offers a great degree of accuracy and reliability, perfect for advanced signal analysis and troubleshooting. With its superior performance, the Signal Spectrum Analyzer is a must-have for any laboratory, research facility or engineering project.



Functionality:

  • 3 Hz to 3.6, 8.4, 13.6, 26.5, 43, 44, or 50 GHz; internal preamplifier options up to 50 GHz
  • 10 MHz (standard), 25, 40, or 140 MHz analysis bandwidth
  • Extend frequency to 325 GHz and beyond with external mixing
  • View configuration choices for PXA instrument hardware


Performance:

  • ±0.19 dB absolute amplitude accuracy
  • +22 dBm third order intercept (TOI)
  • -172 dBm displayed average noise level (DANL) with preamplifier and noise floor extension
  • -83 dB (-88 dB nominal) W-CDMA ACLR dynamic range (with noise correction on)





Measurement Applications & Software:  ----------------------------------------------------------

  • PXA supports over 25 measurement applications, covering cellular communication, wireless connectivity, digital video, and general purpose. View full list of measurement applications
  • Advanced analysis of more than 70 signal formats; software runs inside the PXA. 89600B VSA software
  • MATLAB data analysis software for general purpose data analysis, visualization, and measurement automation. MATLAB software for X-Series
  • Agilent''s PowerSuite one-button power measurements included as standard



Automation & Communication Interface:  ---------------------------------------------------------

  • LXI class C compliant, SCPI and IVI-COM
  • USB 2.0, 1000Base-T LAN, GPIB
  • Programming remote language compatibility with PSA, 8566/68, 856x, and more
  • Common X-Series user interface/Open Windows® XP operating system

List of Options:

0BW Hard Copy Assembly-Level Service Guide
1A7 ISO 17025 compliant calibration
1CM Rack mount kit
1CM013A Rackmount Flange Kit 177.0mm H (4U) - Two Flange Brackets
1CN Front handle kit
1CP Rackmount and handle kit
1CR Rack slide kit
503 Frequency range, 3 Hz to 3.6 GHz
508 Frequency range, 3 Hz to 8.4 GHz
513 Frequency range, 3 Hz to 13.6 GHz
526 Frequency range, 3 Hz to 26.5 GHz
543 Frequency range, 3 Hz to 43 GHz
544 Frequency range, 3 Hz to 44 GHz
550 Frequency range, 3 Hz to 50 GHz
A6J ANSI Z540 compliant calibration
AB2 Hard Copy of X-Series Chinese Getting Started and Troubleshooting Guide
ALV Auxiliary log video output
AMG Cal + Uncertainties + Guardbanding (Accredited)
B1X Analysis bandwidth, 140 MHz/160 MHz
B1Y Analysis bandwidth extension 160 Mhz
B25 Analysis bandwidth, 25 MHz
B40 Analysis bandwidth, 40 MHz
B85 Analysis bandwidth, 85 MHz
BBA I/Q baseband inputs, analog
C35 APC 3.5 mm connector
CR3 Connector Rear, Wideband IF output
CRP Connector Rear, Programmable IF output
DP2 DP2 - Digital Processor, 2 GB Capture Memory
DVR DVD - ROM/CD-R/RW drive
EA3 Electronic attenuator, 3.6 GHz
EDP Enhanced display package
EFM USB storage device, 4GB, blank
EMC Basic EMC Functionality
EP1 Enhanced Phase Noise Performance
ESC External source control
EXM External mixing
FP2 Fast Power, up to 40 MHz Bandwidth
FS1 Fast Sweep Capability
FS2 Enhanced Fast Sweep Capability
FSA Mechanical attenuator- 2 dB steps, 0 to 70 dB
FT1 Freq. Mask Trigger >15 us signal duration
HDD Removable HDD
KB2 US 65 key USB keyboard
KYB USB Keyboard
LFE Low Frequency Enable 3 Hz
LNP Low Noise Path
LNP Low noise path
MLP Minimum loss pad, 50 to 75 ohm
MPB Microwave preselector bypass
N6141A EMI measurement application
N6141A-2FP EMI measurement application, fixed perpetual license
N6141A-2TP EMI measurement application, transportable perpetual license
N6149A IDEN/WIDEN/MotoTalk measurement application
N6149A-2FP IDEN, WIDEN, Moto Talk Measurement application, fixed perpetual license
N6149A-2TP IDEN/WIDEN/MotoTalk measurement application, transportable, perpetual license
N6152A Digital Cable TV measurement application.
N6152A-2FP DVB-C (J.83 Annex A/C) measurement application, fixed perpetual license
N6152A-2TP DVB-C (J.83 Annex A/C) measurement application, transportable perpetual license
N6152A-3FP J.83 Annex B measurement application, fixed perpetual license
N6152A-3TP J.83 Annex B measurement application, transportable perpetual license
N6153A DVB-T/H Measurement application
N6153A-2FP DVB-T/H Measurement application, fixed perpetual license
N6153A-2TP DVB-T/H Measurement application, transportable perpetual license
N6153A-3FP DVB-T2 measurement application, fixed perpetual license
N6153A-3TP DVB-T2 measurement application, transportable perpetual license
N6155A ISDB-T Measurement Application
N6155A-2FP ISDB-T Measurement Application,fixed perpetual license
N6155A-2TP ISDB-T measurement application , transportable perpetual license
N6155A-3FP ISDB-Tmm, Measurement Application, fixed perpetual license
N6155A-3TP ISDB-Tmm, measurement application, transportable perpetual license
N6156A DTMB (CTTB) Measurement Application
N6156A-2FP DTMB (CTTB) measurement application, fixed perpetual license
N6156A-2TP DTMB (CTTB) measurement application, transportable perpetual license
N6158A CMMB Measurement Application
N6158A-2FP CMMB Measurement Application,fixed perpetual license
N6158A-2TP CMMB measurement application, transportable perpetual license
N6171A MATLAB Software
N6171A-M01 MATLAB-Basic Package, individual license ? node-locked
N6171A-M02 MATLAB-Standard Package, individual license ? node-locked
N6171A-M03 MATLAB-Advanced Package, individual license ? node-locked
N9051A Pulse measurement software
N9051A-2FP Pulse measurement software, fixed perpetual, license
N9051A-2TP Pulse measurement software, fixed, transportable perpetual license
N9051A-3FP Phase and frequency measurements, fixed perpetual license
N9051A-3TP Phase and Frequency Measurements, transportable perpetual license
N9051A-4FP Extended analysis and statistics, fixed perpetual license
N9051A-4TP Extended Analysis and Statistics, transportable perpetual license
N9060A-2FP Spectrum Analyzer Measurement Application
N9060A-3FP Amplitude Correction and Limit Lines
N9060A-4FP TOI and Harmonics
N9060A-5FP ACP 18 Carrier
N9060A-6FP TV trigger and IQ analyzer enhancement
N9060A-7FP Zero Span, Register, Trace and Spurious Enhancements
N9060B-2FP Spectrum Analyzer Measurment Application
N9061A Remote Language Compatibility Application
N9061A-1FP Remote language compatibility, 8566/68, fixed perpetual license
N9061A-2FP Remote language compatibility, 856xE/EC, fixed perpetual license
N9062A SCPI Language Compatibility
N9062A-2FP SCPI language compatibility, RS
N9063A Analog Demodulation Measurement application
N9063A-2FP Analog Demodulation Measurement application, fixed perpetual license
N9063A-2TP Analog demodulation measurement application, transportable perpetual license
N9063A-3FP FM Stereo Measurement Application, fixed perpetual license
N9063A-3TP FM Stereo measurement application, transportable perpetual license
N9063A-AFP Analog Demod Enhancements
N9064A VXA Vector Signal Analysis Measurement Application
N9064A-1FP Vector signal analysis measurement application, fixed perpetual license
N9064A-1TP Vector signal analysis measurement application, fixed perpetual license
N9064A-2FP Flexible digital modulation analysis measurement application, fixed perpetual license
N9064A-2TP Flexible digital modulation analysis measurement application, fixed transportable license
N9064A-AFP Flex Dig. Demod Enhancement for Wi-SUN, VXA
N9068A Phase Noise Measurement Application
N9068A-2FP Phase Noise Measurement Application
N9068A-2TP Phase Noise measurement application, transportable perpetual license
N9068A-AFP Phase Noise Feature Enhancements, fixed perpetual license
N9068EM0D Phase Noise Measurement Application (post upgrade for N9068A-2FP)
N9069A Noise Figure Measurement application
N9069A-1FP Noise Figure Measurement application, fixed perpetual license
N9069A-1TP Noise Figure measurement t application, transportable perpetual license
N9069A-2FP Noise Figure Advanced Features
N9069A-AFP Noise Figure Feature Enhancements, fixed perpetual license
N9071A GSM/EDGE/Evo Measurement Application
N9071A-2FP GSM/EDGE measurement application, fixed perpetual, license
N9071A-2TP GSM/EDGE measurement application, transportable perpetual, license
N9071A-3FP EDGE Evo measurement application, fixed perpetual license
N9071A-3TP EDGE Evo measurement application, transportable perpetual license
N9071A-AFP GSM / EDGE feature enhancements, fixed perpetual license
N9071A-XFP Single Acquisition Combined GSM/EDGE Measurement Application
N9071A-XTP GSM/EDGE combined measurement application, transportable perpetual, license
N9072A cdma2000 Measurement Application
N9072A-2FP cdma2000 measurement application, fixed perpetual license
N9072A-2TP cdma2000 measurement application, transportable perpetual license
N9073A W-CDMA/HSPA+ Measurement Application
N9073A-1FP W-CDMA Measurement application, fixed perpetual license
N9073A-1TP W-CDMA measurement application, fixed transportable perpetual license
N9073A-2FP HSDPA / HSUPA Measurement application, fixed perpetual license
N9073A-2TP HSPA measurement application, transportable perpetual license
N9073A-3FP HSPA+ Measurement Application, fixed perpetual license
N9073A-3TP HSPA+ measurement application, transportable perpetual license
N9073A-BFP W-CDMA Measurement feature enhancements, fixed perpetual license
N9073A-XFP Single Acquisition Combined W-CDMA Measurement Application
N9073A-XTP W-CDMA single acquisition combined measurement application, transportable perpetual, license
N9074A Fixed WiMAX Single Acquisition Combined Measurement Application
N9074A-XFP Fixed WiMAX single acquisition combined measurement application, fixed perpetual, license
N9074A-XTP WiMAX single acquisition combined measurement application, fixed perpetual license?
N9075A Mobile WiMAX Measurement Application
N9075A-2FP Mobile WiMAX measurement application, fixed perpetual, license
N9075A-2TP Mobile WiMAX measurement application, transportable perpetual, license
N9076A 1xEV-DO Measurement application
N9076A-1FP 1xEV-DO Measurement application,fixed perpetual license
N9076A-1TP 1xEV-DO measurement application, transportable perpetual license
N9077A WLAN 802.11a/b/g/n Measurement Application
N9077A-2FP WLAN 802.11a/b/g Measurement Application, fixed perpetual license
N9077A-2TP WLAN 802.11a/b/g measurement application, transportable perpetual license
N9077A-3FP WLAN 802.11n, Measurement Application, fixed perpetual license
N9077A-3TP WLAN 802.11n, measurement application, transportable perpetual license
N9077A-4FP WLAN 802.11ac Measurement Application, fixed perpetual license
N9077A-4TP WLAN 802.11ac measurement application, transportable perpetual license
N9077A-5FP WLAN 802.11 List Sequence Measurement Application, fixed perpetual license
N9077A-5TP WLAN 802.11 List Sequence measurement application, transportable perpetual license
N9079A TD-SCDMA/HSPA Measurement Application
N9079A-1FP TD-SCDMA Measurement application, fixed perpetual license
N9079A-1TP TD-SCDMA measurement application, transportable perpetual license
N9079A-2FP HSPA measurement application, fixed perpetual license
N9079A-2TP HSPA measurement application, transportable perpetual license
N9080A LTE FDD Measurement Application
N9080A-1FP LTE-FDD Measurement Application, fixed perpetual license
N9080A-1TP LTE-FDD measurement application transportable perpetual license
N9081A Bluetooth Measurement Application
N9081A-2FP Bluetooth Measurement Application, fixed perpetual license
N9081A-2TP Bluetooth measurement application, transportable perpetual license
N9082A LTE TDD Measurement Application
N9082A-1FP LTE TDD Measurement Application, fixed perpetual license
N9082A-1TP LTE TDD measurement application transportable perpetual license
N9083A Multi-Standard Radio (MSR) Measurement Application
N9083A-1FP Multi-Standard Radio, MSR, Measurement Application, fixed perpetual license
N9083A-1TP Multi-Standard Radio, MSR, measurement application, transportable perpetual license
NF2 Noise Floor Extension
NFE Noise Floor Extension
NUL IM Nulling
P03 Preamplifier, 3.6 GHz
P08 Preamplifier, 8.4 GHz
P08
P13 Preamplifier, 13.6 GHz
P26 Preamplifier, 26.5 GHz
P43 Preamplifier, 43 GHz
P44 Preamplifier, 44 GHz
P50 Preamplifier, 50 GHz
PC2 Intel Core Duo CPU / T2500 @ 2 Ghz
PC4 Intel ® Core ™ i7 CPU L 620 @ 2.00 GHz
PC6 Intel Core i7 - 3615QE CPU @ 2.30 Ghz, 16 GB
PFR Precision frequency reference
RBE Resolution Bandwidth Extended
RT1 Real-time spectrum analyzer up to 85 MHz analysis bandwidth
RT2 Real-time spectrum analyzer up to 160 MHz analysis bandwidth
RTL Real Time Link
RTR Real-time Spectrum Recorder and Analyzer Application Example
SF1 Security Features, Exclude Launching Programs
SF2 Security Features, Prohibit Saving Results
SSD Additional removable solid state drive
TDS Time Domain Scan
UK6 Commercial calibration test data
W7X Operating system, Windows Embedded Standard 7
WIN10 Operating system, Windows Embedded Standard 10
WXP Operating system, Windows XP for Embedded Systems
YAV Y-axis video output

Our service:

  • One-stop service from manufacture to shipping.
  • Your inquiry related to our products or prices will be replied in 24hours.
  • Well-trained and experienced staffs to answer all your enquires influent English.
  • Distributor ship is offered for your unique desigh and some our current models.
  • Protection of your sales area, ideas of design and all your private information.



Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier 0Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier 1Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier 2Used N9030A PXA Signal Spectrum Analyzer 3 Hz to 50 GHz Low Cost Supplier 3

Contact Details
Shenzhen Meigaolan Electronic Instrument Co. Ltd

Contact Person: Lily

Tel: +8617764225585

Send your inquiry directly to us
Other Products
Shenzhen Meigaolan Electronic Instrument Co. Ltd
RA1-B2,F32 of Dongjianghaoyuan, Baomin Rd, Bao'an District, Shenzhen,China
Tel:86-755-27883980
Mobile Site Privacy Policy | China Good Quality RF Spectrum Analyzer Supplier. © 2023 - 2024 rf-spectrumanalyzers.com. All Rights Reserved.
