Keysight Agilent N5244A PNA-X Vector Network Analyzer 10 MHz-43.5GHz with 126 dB Dynamic Range and Built-in Second Source

Name: Keysight Agilent N5244A PNA-X Vector Network Analyzer 10 MHz-43.5GHz with 126 dB Dynamic Range and Built-in Second Source
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: N5244A
Availability: InStock

Brand Name:	Keysight Agilent
Model Number:	N5244A
MOQ:	1 set
Price:	Negotiable
Delivery Time:	1~3 working days
Payment Terms:	T/T,Western Union, MoneyGram

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

IF Output:

50 Ω, 0 DBm

Display Modes:

Normal, Max Hold, And Average

Accuracy:

±1.5 DB

Dynamic Range:

>110 DB

Trigger Modes:

Free Run, External, Video, Pulse, And Timeout

Resolution Bandwidth:

1 Hz To 1 MHz

Measurements:

Peak, Average, And Quasi-peak

Frequency Range:

10 MHz- 43.5GHz

Packaging Details:

Carton

Highlight:

43.5GHz Vector Network Analyzer

10 MHz Vector Network Analyzer

Product Description

Keysight Agilent N5244A PNA-X Vector Network Analyzer 10 MHz-43.5GHz

Product Overview

The PNA-X network analyzer is the world's most integrated and flexible single-connection microwave test engine for measuring active devices such as amplifiers, mixers, and frequency converters. You can choose from five frequency models to meet your specific device test needs: 13.5, 26.5, 43.5, 50, and 67 GHz. The PNA-X provides unrivaled configurability with a built-in second source, combiner, and internal signal-routing switches.

Key Features

10 MHz to 43.5 GHz frequency range
2- or 4-ports with two built-in sources
126 dB system and 129 receiver dynamic range, 32,001 points, 32 channels, 5 MHz IF bandwidth
High output power (+16 dBm), low harmonics (-60 dBc) and wide power sweep range (41 dB)
Best dynamic accuracy: 0.1 dB compression with +15 dBm input power at the receiver
Low noise floor of -111 dBm at 10 Hz IF bandwidth

Applications

S-parameters (CW and pulsed)
Noise figure
Gain compression
Intermodulation and harmonic distortion
Conversion gain/loss
True-differential stimulus
Millimeter-wave
Nonlinear waveform and X-parameter® characterization
Antenna test

X-parameters® is a registered trademark of Agilent Technologies. The X-parameter format and underlying equations are open and documented.

Available Options

Option Code	Description
008	Pulsed-RF Measurements
010	Time-domain measurements
020	Add IF inputs
021	Add pulse modulator to internal first source
022	Add pulse modulator to internal second source
025	Add four internal pulse generators
028	Noise figure measurements using standard receivers
080	Frequency offset measurements
081	Reference Channel Switch (Adds internal switch to R1 Path)(Standard Option w/080)
082	Scalar calibrated converter measurements
083	Vector and scalar calibrated converter measurements
084	Embedded LO measurements
086	Gain compression measurements
087	Intermodulation distortion measurements
088	Source phase control
118	Fast CW mode
1A7	ISO 17025 compliant calibration
1CM	Rack mount kit for installation without handles
1CP	Rack mount kit for installation with handles
200	2 ports, single source
219	Add extended power range and bias-tees to 2 port analyzer
224	Add internal second source, combiner and mechanical switches to 2-port analyzer
29	Corrected noise figure measurements
301	Application for use with standard CalPods
302	Application for use with temperature-characterized CalPods
400	4 ports, dual source
417	4-port dual source extended power range
419	Add extended power range and bias-tees to 4 port analyzer
423	Add internal combiner and mechanical switches to 4-port analyzer
460	Integrated true-mode stimulus application
510	Nonlinear component characterization
514	Nonlinear x-parameters
518	Nonlinear pulse envelope domain
520	Arbitrary load impedance X-parameters
551	N-port calibrated measurements
897	Built-in performance test software for Agilent inclusive calibration, perpetual license
898	Built-in performance test software for standards compliant calibration, perpetual license
A6J	ANSI Z540 compliant calibration
H85	Removes bias tees between source attenuators and test port couplers
N1966A	Pulse/IO Adapter
N8981A	Spare hard drive for use with 1.1 GHz Pentium M CPU board Recommended for use in secure environments
PS-S10	Remote scheduled productivity assistance. Select 1 to 999 hours.
PS-S20	Startup assistance
PS-S20-01	Recommended Startup assistance
PS-T10-PNA	PNA operator training for 8 students at the customer's site , H7215B-203
PS-T12-PNA	PNA programming for 8 students at the customer's site , H7215B-204
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-016-3	ISO 17025 Compliant Calibration - 3 years
R-50C-016-5	ISO 17025 Compliant Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-50J-001-3	Onsite System Verification - 3 years
R-50U-001-3	Onsite Agilent Calibration - 3 years
R-50U-002-3	Onsite ANSI Z540-1-1994 Calibration - 3 years
R-51B-001-3C	Return to Agilent Warranty - 3 years
R-51B-001-5C	Return to Agilent Warranty - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
R-51C-001-1CU	Onsite Warranty - 1 year
R-51C-001-3CU	Onsite Warranty - 3 years
UK6	Commercial calibration certificate with test data

Frequently Asked Questions

What is a RF Spectrum Analyzer?

A RF Spectrum Analyzer is an instrument used for measuring the amplitude of a signal as a function of frequency. It is mainly used for measuring the power of the spectrum of known and unknown signals.

What is the model number of the RF Spectrum Analyzer?

The model number is N5244A and it is manufactured by Keysight Agilent.

Where is the RF Spectrum Analyzer made?

The RF Spectrum Analyzer is made in Malaysia.

What is the minimum order quantity for the RF Spectrum Analyzer?

The minimum order quantity for the RF Spectrum Analyzer is 1 set.

What type of packaging is used for the RF Spectrum Analyzer?

The RF Spectrum Analyzer is packaged in a carton.

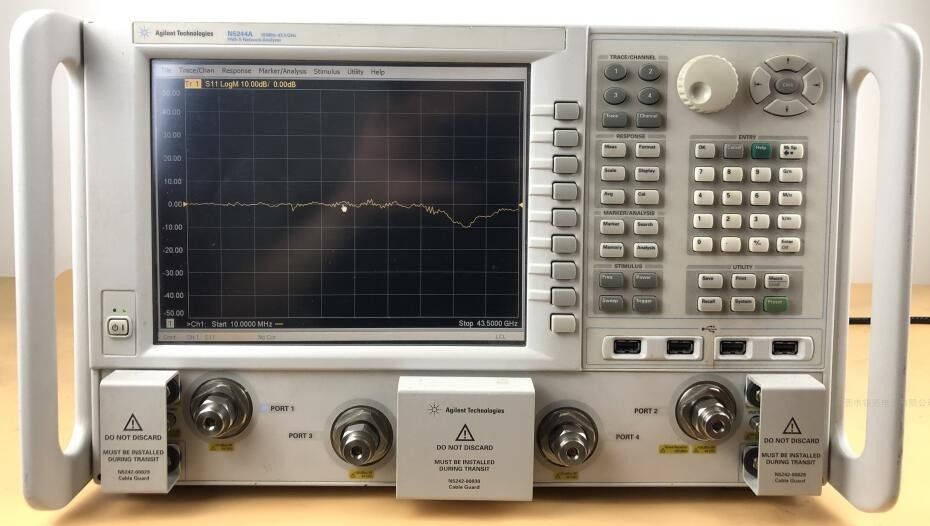

Product Images
