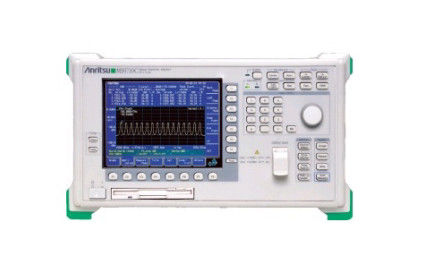

Anritsu MS9170C Optical Spectrum Analyser , Practical Optical Signal Analyzer

Name: Anritsu MS9170C Optical Spectrum Analyser , Practical Optical Signal Analyzer
Brand: Anritsu
SKU: MS9170C
Rating: 4.9 (190 reviews)

Product Details:

Place of Origin:	Taiwan
Brand Name:	Anritsu
Model Number:	MS9170C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	in stock

Contact Now

Detailed Product Description

Product Name:	Anritsu MS9170C	Measurement:	Fast
PDL:	+/- 0.05dB (C +L Band)	Tracking Function:	Tracking With Tunable Laser Source
Condition:	Pre-Owned	Level Linearity:	+/- 0.05dB (C +L Band)
High Light:	Anritsu Optical Spectrum Analyser , MS9170C Optical Spectrum Analyser , Practical Optical Signal Analyzer

Anritsu MS9170C Optical Spectrum Analyzer LUp To 50 GHz Channel Spacing

Description of Anritsu MS9710C

The MS9710C provides excellent wavelength accuracy, waveform shape, and new features. This OSA is an improved version of the popular MS9710B and features improved wavelength accuracy, resolution bandwidth, and signal-to-noise averaging. This diffraction grating spectrum analyzer covers a wide wavelength range from 600 to 1750 nm. The MS9710C features high power level accuracy, wide dynamic range, and high reception sensitivity. MS9710C has been enhanced with much better performance in the L-Band region between 1570 nm and 1620 nm..

Applications:

The MS9710C can measure wavelength, power level, and SNR for up to 300 DWDM channels. It can also be used for PMD and EDFA noise floor measurements

Tunable Laser Source Tracking. This internal function eliminates the need for an external controller to make measurements using an Anritsu TLS.

Internal Light Sources. Optional SLD, white light, and reference wavelength light sources can be installed in the MS9710C to simplify measurements.

Calibration with the built-in reference source is a one-button operation.

L-Band Measurements. Option 15 improves wavelength accuracy, resolution, power level flatness, and linearity in the 1570 to 1620 nm L-band region.

Feature:

Improved signal-to-noise measurement with left and right noise floor averaging
Tracking function with tunable laser source
Built-in attenuator for high power optical input
Optional built-in light source and reference wavelength
VGA output connector

List of Options

05	WAVELENGTH REF SOURCE
13	Wavelength reference & SLD light source
15	L BAND ENHANCEMENT OPTION
25	25 FC-APC connector
40	SC CONNECTOR
ES35	3YR CALIBRATION

Difficult problems in WDM transmission technology are the wavelength characteristics for the gain, and signal-to-noise ratio (SNR) between each channel. In evaluation, it is very important to measure this quantitatively. The MS9710B permits extremely quick and simple waveform analysis of up to 300 spectra. The waveform and level (SNR) of each peak exceeding the set threshold is displayed. Spectrum analysis for WDM communication system

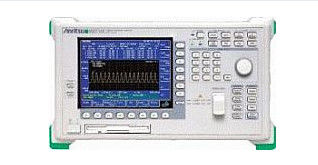

Anritsu MS9170C Optical Spectrum Analyser , Practical Optical Signal Analyzer 0
