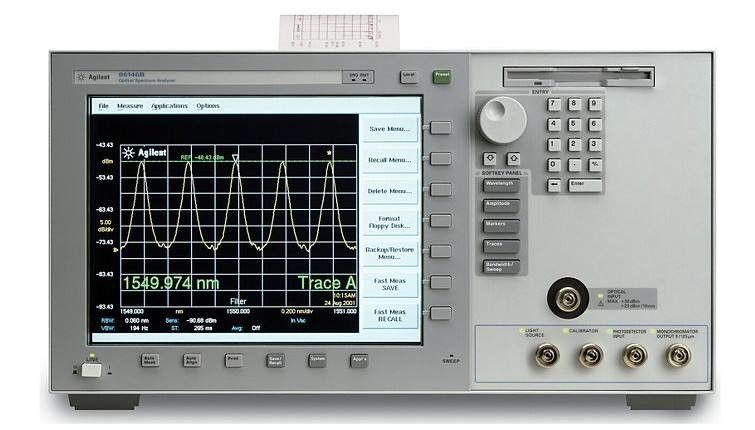

Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B

Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B

  • Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B
  • Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B
Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight (Agilent)
Model Number: 86141B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Optical Spectrum Analyzer Accuracy:: High Accuracy
Wavelength Range: 600 To 1700 Nm Speed: High Throughput
Condition: Pre-Owned Functions:: Tested, In Full Working Conditions
High Light:

Portable Optical Spectrum Analyzer

,

Flexible Optical Spectrum Analyzer

,

86141B

Keysight Agilent 86141B Benchtop Flexible Optical Spectrum Analyzer Discontinued
Description of  Keysight Agilent 86141B
  • The Agilent 86140B and 86142B optical spectrum analyzers are high performance benchtop instruments that offer a combination of flexibility, high accuracy and throughput for both R&D and manufacturing environments. These are complimented by the portable Agilent 86143B and 86145B, providing performance in a compact 14.5 kg package for environments where small size and weight are important. The 86141B is a flexible performance OSA featuring a monochromator output and photodiode input
.Feature:
  • Accelerate Test with Built-in Applications
    • Built-in applications take the uncertainty out of measurements for WDM systems, lasers, amplifiers, and passive components. These applications allow for fast, accurate, easy to use, upgradeable, and repeatable measurements of critical parameters. All of these applications can be added through a simple firmware upgrade.
  • WDM Application
    • The WDM application helps speed up the test process for DWDM subsystems, so increasing channel counts does not mean test time increases. The application can easily measure DWDM sub-system components, such as transmission sub-systems, optical add/drop multiplexers, and multiplexers/de-multiplexers.

Benchtop and Portable Solutions

  • Large color Display
    • A large 26.4 cm (10.4 in) color LCD display with exceptional brightness and clarity for ergonomic viewing.
  • Remote File Save
    • Save test data directly to a file share on a network drive to simplify test automation.
  • Graphical User Interface
    • Control the OSA from the front panel or with an external keyboard and mouse. You can even remotely control the OSA from a PC or workstation on the LAN.
  • Traces
    • Six independent traces with extensive trace math capability make it easy to see complex measurement data in a single graphical display.



List of Options
001 Internal programmable current source
002 Internal white light source
004 1300 / 1550nm internal EELED source
005 1550nm internal EELED source
006 Internal wavelength calibrator
030 10 dB external attenuator with non-angled FC/PC connectors
050 No optical sources
051 No calibrator
1CN Handle Kit
AB2 China Quick Users Guide (Chinese localization)
AX4 Rack Mount Flange Kit
AXE Rack flange kit with handles
H17 Improved preselector capability
OBO Do not include manuals
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data

Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B 0Portable Flexible Optical Spectrum Analyzer Keysight Agilent 86141B 1
