Keysight Agilent 8564EC Portable Spectrum Analyzer 9 kHz to 40 GHz Pre-Owned

Name: Keysight Agilent 8564EC Portable Spectrum Analyzer 9 kHz to 40 GHz Pre-Owned
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 8564EC
Availability: InStock

Brand Name:	Keysight/Agilent
Model Number:	8564EC
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

Product Name:

Spectrum Analyzer

Frequency:

9 KHz To 40 GHz

Form Factor:

Benchtop ( /B70 ) Plug-In ( /104 /944 /946 ) Portable Rackmount ( /C91 )

Average Noise Level:

-145 DBm - +11 DBm

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

Practical 8564EC Spectrum Analyzer

40GHz 8564EC Spectrum Analyzer

Agilent 8564EC

Product Description

Practical Agilent 8564EC Spectrum Analyzer Keysight 9kHz-40GHz

Keysight Agilent 8564EC Portable Spectrum Analyzer

The Agilent 8564EC portable, color display millimeter wave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 30 Hz to 40 GHz (preselected above 2.75 GHz) with a single coaxial connection.

The 8564EC combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a package built to withstand environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

Performance Specifications

±1.0 dB absolute amplitude accuracy
-149 dBm/Hz displayed average noise level (DANL)
<-113 dBc/Hz phase noise at 10 kHz offset

Key Features

Fast digital resolution bandwidths of 1 Hz to 3 MHz
Portable, MIL-PRF-28800, Class 3 rugged
Easily transfer screen image or trace data to PC with BenchLink software
Agilent's PowerSuite one-button power measurements as standard

Technical Specifications

Form Factor	Benchtop (/B70), Plug-In (/104 /944 /946), Portable, Rackmount (/C91)
Application Software	Phase Noise
Average Noise Level	-145 dBm - +11 dBm
Frequency	30 Hz (/006), 9 KHz to 40 GHz

Available Options

001 - Add Second IF output; rear panel connector

005 - Add alternate sweep output

006 - Low end frequency range to 30 Hz

007 - Digitized fast time domain sweeps (standard)

008 - Add signal identification

042 - Gray spectrum analyzer backpack

044 - Yellow spectrum analyzer backpack

0B0 - Do not include manuals

0Q8 - Factory Delivered Service Training

103 - Delete Precision Frequency Reference, and 1 Hz and 3 Hz RBWs

104 - Do not include mass memory module

1BN - MLTR Standard 45662A Calibration Certification

1BP - MLTR std 45662A calibration w/ test data

82350B - PCI High-Performance GPIB Interface Card

82357B - USB/GPIB Interface High-Speed USB 2.0

8ZE - Factory Refurbished

908 - Rack Flange Kit for Use without Handles

909 - Front Handle & Rack Flange Kit

910 - Additional operating and service manual

915 - Additional Service Manual

916 - Extra pocket-size Quick Reference Guide

944 - Mass memory module manual - U.S. - English

946 - Mass memory module manual - Japanese localization

AB2 - China Quick Users Guide (Chinese localization)

ABD - Germany Quick Users Guide (German localization)

ABE - Spain Quick Users Guide (Spanish localization)

ABF - France Quick Users Guide (French localization)

ABJ - Japan Quick Users Guide (Japanese localization)

ABZ - Italy Quick Users Guide (Italian localization)

B70 - BenchLink spectrum analyzer S/W

C90 - Factory installed rackmount kit with handles and flanges

C91 - Factory installed rackmount kit without handles and flanges

E35 - ACPR Test Set

E4444A - BenchLink Spectrum Analyzer Connectivity Software

E5810A - LAN/GPIB Gateway

EMI - EMI, 6dB BW in 100 kHz and 1 MHz resolution bandwidths

H35 - Firmware Upgrade for option K35

J67 - Bundles options UK6,006 & 007

K35 - System with CDMA Test Set Attaced

R-50C-011-3 - Agilent Calibration - 3 years

R-50C-011-5 - Agilent Calibration - 5 years

R-50C-021-3 - ANSI Z540-1-1994 Calibration - 3 years

R-50C-021-5 - ANSI Z540-1-1994 Calibration - 5 years

R-51B-001-3C - Return to Agilent Warranty - 3 years

R-51B-001-5C - Return to Agilent Warranty - 5 years

R-51B-001-C - Return to Agilent Warranty - 1 year

R08 - Signal identification retrofit kit

RMKT - Agilent Refurbished Product

UK6 - Commercial cal. certificate w/ test data

W30 - 3 Years Return for Repair Service

W32 - 3 Years Return for Calibration Service

W50 - 5 Year Customer Return Repair Service

W52 - 5 Years Return for Calibration Service

Frequently Asked Questions

Can you ship orders to Canada or Australia?

Yes, we can. We send orders worldwide.

What delivery method do you use and what is the delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other question?

You can contact us online or leave us messages below.

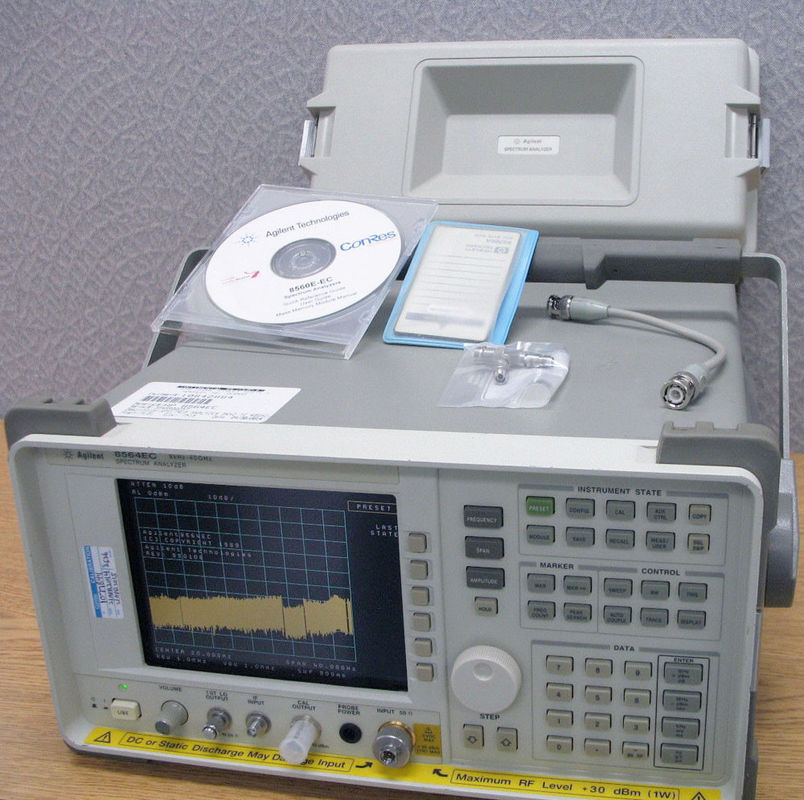

Product Images
