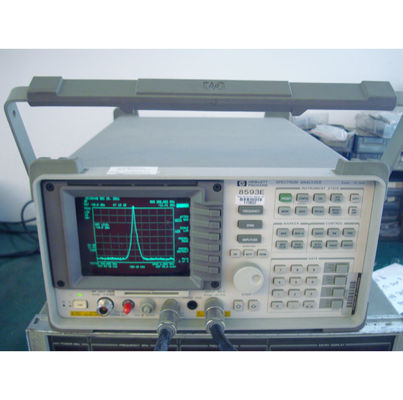

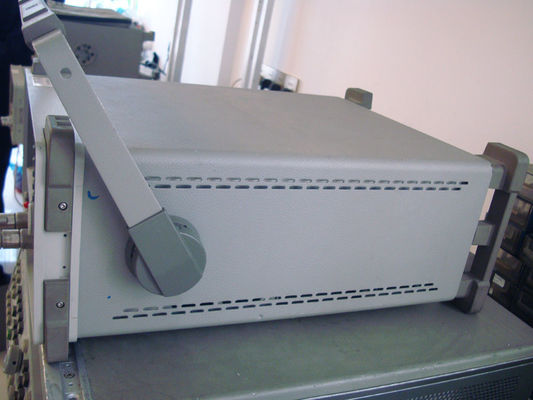

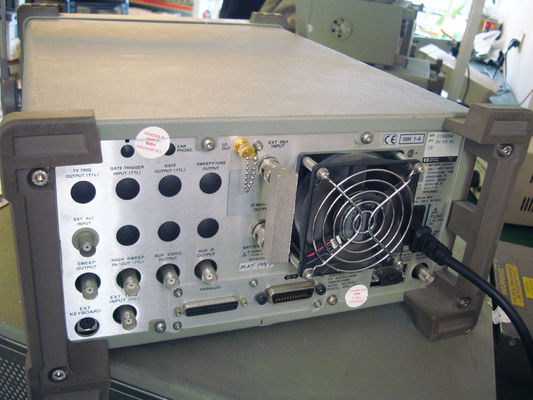

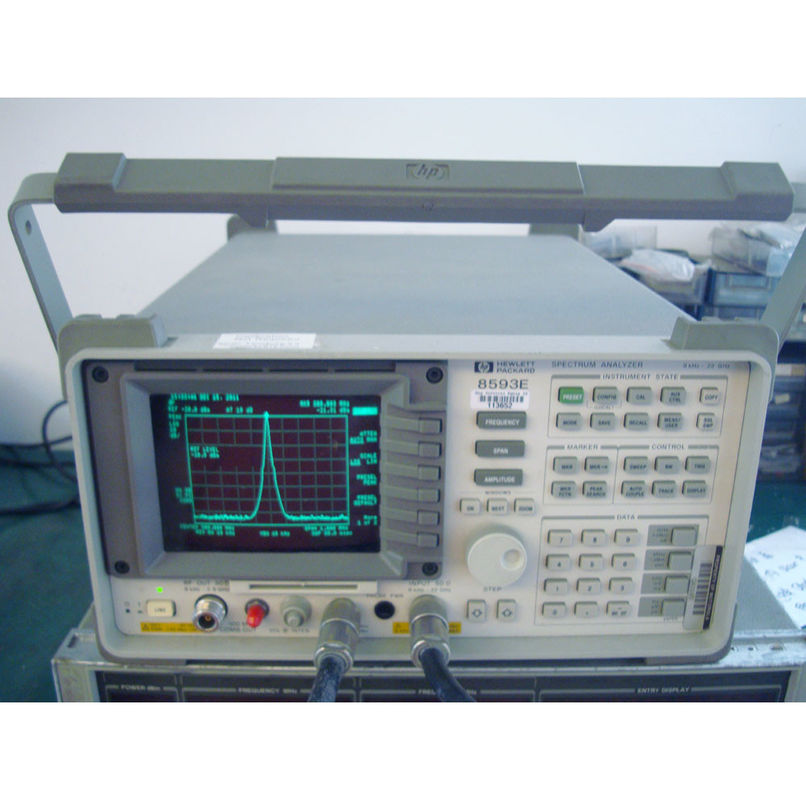

Agilent 8593E RF Spectrum Analyzer Portable With Dual Interfaces

Agilent 8593E RF Spectrum Analyzer Portable With Dual Interfaces

  • Agilent 8593E RF Spectrum Analyzer Portable With Dual Interfaces
  • Agilent 8593E RF Spectrum Analyzer Portable With Dual Interfaces
  • Agilent 8593E RF Spectrum Analyzer Portable With Dual Interfaces
Agilent 8593E RF Spectrum Analyzer Portable With Dual Interfaces
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight/Agilent
Model Number: 8593E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 9 KHz - 22 GHz
Form Factor: Portable Rackmount ( /909 ) Plug-In Average Noise Level: -129 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

8593E RF Spectrum Analyzer

,

Dual Interfaces RF Spectrum Analyzer

,

Portable 8593E Spectrum Analyzer

Keysight Agilent 8593E Portable Spectrum Analyzer 9 kHz to 22 GHz

Description of Keysight Agilent 8593E

The Agilent 8593E is an easy-to-use microwave spectrum analyzer that offers a wide range of performance, features, and optional capability to meet your measurement needs. Downloadable measurement personalities combine with optional plug-in performance to provide tailored solutions for your application.

Features:
  • Perform complex tests simply and quickly with measurement personalities that support applications like cable TV/broadcast, component test, electromagnetic compatibility, lightwave, and wireless communications
  • Four slot cardcage
  • Split screen display
  • One-button measurement routines
  • Advanced measurement functions
  • Dual interfaces
  • Built-in tracking generator
  • E4444A BenchLink software
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Portable
Rackmount ( /909 )
Plug-In
Application Software
Analong (AM/FM) ( /102 )
Cable TV
CDMAONE
Noise Figure ( /119 )
Average Noise Level
-129 dBm
Frequency
9 KHz - 22 GHz
26.5 GHz ( /027 )
9 KHz - 26.5 GHz ( /026 )
List of Options
001 75 ohm Input Impedance
003 Memory card reader
004 Precision Frequency Reference
009 Local Oscillator and Sweep + Tune Outputs (rear panel)
010 Built-in Tracking Generator, 50 Ohm (100 kHz-2.9 GHz)
012 DECT Source
015 Protective Soft Tan Carrying/Operating Case
016 Protective Soft Yellow Operating/Carrying Case
021 HPIB Interface
023 RS232-C interface
026 Frequency Extension to 26.5 GHz (APC 3.5 mm connector)
027 Frequency Extension to 26.5 GHz (Type-N connector)
040 Front Panel Protective Cover w/CRT Viewing Hood
041 GP-IB Interface and Parallel Printer Interface
042 Gray spectrum analyzer backpack
043 RS-232 Interface and Parallel Printer Interface
044 Yellow spectrum analyzer backpack
050 Improved Amplitude Accuracy for NADC-TDMA/PCS Bands
051 Improved Amplitude Accuracy for PDC Bands
052 Improved Amplitude Accuracy for PHS Band
053 Improved Amplitude Accuracy for CDMA/PCS Bands
0B0 Do not include manuals
0Q8 Factory Delivered Service Training
101 Fast Time-Domain Sweeps and Analog + Display
102 AM/FM Demodulator with Speaker and TV Sync Trigger
103 Quasi-Peak Detector and AM/FM Demodulator with Speaker
104 Oven
105 Time-Gated Spectrum Analysis
107 TV Receiver Video Tester
110 CT2 Demodulator
111 Group Delay with Compatible Tracking Generator
112 DECT demodulator card
119 Noise figure card
130 Narrow Resolution Bandwidths (30 Hz,100 Hz,300 Hz and 200 Hz EMI)
140 Narrow Resolution Bandwidths/Precision Frequency Reference
151 DSP, Fast ADC, and Digital Demodulator
160 PDC, PHS, NADC, and CDMA Firmware
161 NADC-TDMA firmware ROM for Option 151
162 PDC firmware for Option 151
163 GSM900/DCS1800 Firmware
180 TV Picture On Screen (NTSC, PAL, and SECAM)
301 TV Sync. Trigger Capability, Fast Time Domain Sweeps, AM/FM Demodulator, and Analog + Display
711 50/75 Ohm Matching Pad with 100V DC Block
8ZE Factory Refurbished
908 Rack Flange Kit for Use without Handles
909 Front Handle & Rack Flange Kit
910 Additional operating and service manual
915 Component Level Information and Service Guide
AB0 Taiwan Quick Users Guide (Chinese localization)
AB2 China Quick Users Guide (Chinese localization)
ABD Germany Quick Users Guide (German localization)
ABE Spain Quick Users Guide (Spanish localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ABZ Italy Quick Users Guide (Italian localization)
B70 BenchLink spectrum analyzer software
BD0 Code Division Multiple Access
BD1 Global System for Mobile Communication
BD2 North American Digital Cellular System
BD3 Pacific Digital Cellular System
BD4 Personal Handyphone System
E02
E04
E67 DECT ordering convenience pack
E85 RF/Microwave Measurements Option Bundle (not available on the 8591E)
H35
H95
K94 Group Delay Receiver w/50 uS sweep delay for 11758A
R01 Fast Time-Domain Sweeps and Analog + Display Retrofit Kit
R02 AM/FM Demodulator with Speaker and TV Sync. Trigger Circuitry Retrofit Kit
R04 Precision Frequency Reference Retrofit Kit
R05 CT-2 Demodulator Card Retrofit
R06 DECT Demodulator Card Retrofit
R07 TV Receiver/Video Tester Retrofit Kit
R15 Time-Gated Spectrum Analysis
R16 Protective Soft Yellow Operating/Carrying Case
R17 TV Receiver/Video Tester Retrofit Kit
R19 Noise Figure Card Retrofit Kit
R21 GPIB INTERFACE RETROFIT KIT
R23 RS-232 INTERFACE RETROFIT KIT
R24 Parallel Printer Interface Retrofit Kit
R25 Protective Soft Tan Operating/Carrying Case Retrofit Kit
R30 Narrow Resolution Bandwidths Retrofit Kit
R41 GPIB and Parallel Parallel Printer Interface Retrofit Kit
R43 RS-232 Interface and Parallel Printer Interface Retrofit Kit
R50 Improved Amplitude Accuracy for NADC-TDMA/PCS Bands Retrofit Kit
R51 Improved Amplitude Accuracy for PDC Bands Retrofit Kit
R52 Improved Amplitude Accuracy for PHS Bands Retrofit Kit
R53 Improved Amplitude Accuracy for CDMA Bands Retrofit Kit
R60 PDC/PHS/NADC/CDMA Firmware Retrofit Kit
R61 NADC firmware ROM retrofit kit - Opt 151
R62 PDC firmware for Option 151 retrofit kit
R63 GSM900/DCS1800 Firmware Retrofit Kit
R70 PDC/PHS/NADC/CDMA Firmware + Opt 151 Retrofit Kit
R71 NADC demod retrofit kit for 8590E Series
R72 PDC firmware and Option 151 retrofit kit
R73 DSP, Fast ADC, and Digital Demodulator with GSM800/DCS1800 Firmware Retrofit Kit
R80 TV Picture On Screen Retrofit Kit
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data



FAQ:
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
