products details

Home Products

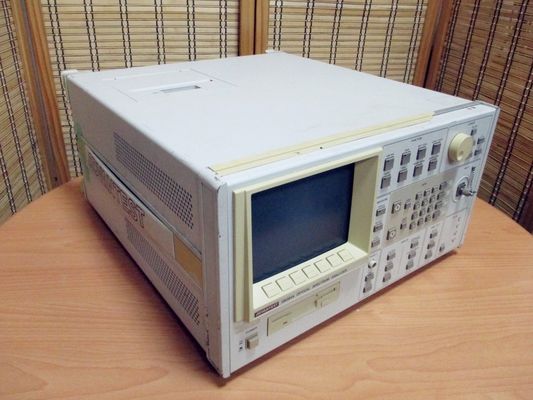

600nm-1750nm ADVANTEST Spectrum Analyzer , Q8381 Optical Spectrum Analyser

Name: 600nm-1750nm ADVANTEST Spectrum Analyzer , Q8381 Optical Spectrum Analyser
Brand: ADVANTEST
SKU: Q8381
Rating: 5 (106 reviews)

Brand Name:	ADVANTEST
Model Number:	Q8381
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

Japan

Product Name:

ADVANTEST Q8381

Wavelength Range::

600nm To 1750nm

Dynamic Range::

40 DB Or More

Condition:

Pre-Owned

Sweep Time::

1.0 Sec Or Less (with A Span Of 50 Nm Or Less)

Level Linearity::

+/-0.5/10 DB, ± 1.0/40 DB

Supply Ability:

in stock

Highlight:

600nm ADVANTEST Spectrum Analyzer

1750nm ADVANTEST Spectrum Analyzer

Q8381

Product Description

ADVANTEST Q8381 Optical Spectrum Analyser 600nm-1750nm High-Speed Measurement

Description of ADVANTEST Q8381

The Advantest Q8381 / 8Q8382 Optical Spectrum Analyzer is an ideal choice for use in spectrum and side mode ratio analysis of DFB laser diodes. The Q8381 / 8Q8382 analyzer features a measurement accuracy of 0.5 nm, which makes them suitable for wide-dynamic-range measurements of not only laser diode spectra, but also of optical-fiber or optical component loss.
In addition to a linear scaled level axis, these analyzers provide logarithmic scaling, thereby enabling a measurement to be completed in less than one second. The Q8381 / 8Q8382 Optical Spectrum Analyzer uses a high-speed sweep or adaptive mode, which allows for dramatically reduced measurement times.

Feature:

Wavelength: 600 to 1750nm
Accuracy 5nm
Measurement range: -80 to +10dBm
Dynamic range 40dB
GPIB
Optical Spectrum Analyzer
Measurement Wavelength Range: 600 to 1750nm with >/ 5nm Accuracy
Measurement Range: -80 to +10dBm

Configuration:

Connector Type: FC
Fiber Type: Freespace
Wavelength Range: 0.6 to 1.75 μm
Measuring Range:
-80 dBm to +10 dBm (1.1 μm to 1.6 μm)
-70 dBm to +10 dBm (0.7 μm to 1.6 μm)
-60 dBm to +10 dBm (0.6 μm to 1.75 μm)
Max input: +10 dBm
Resolution: 0.1, 0.2, 0.5, 1.0, 2.0, 5.0 nm

600nm-1750nm ADVANTEST Spectrum Analyzer , Q8381 Optical Spectrum Analyser 0

600nm-1750nm ADVANTEST Spectrum Analyzer , Q8381 Optical Spectrum Analyser 1

600nm-1750nm ADVANTEST Spectrum Analyzer , Q8381 Optical Spectrum Analyser 2
