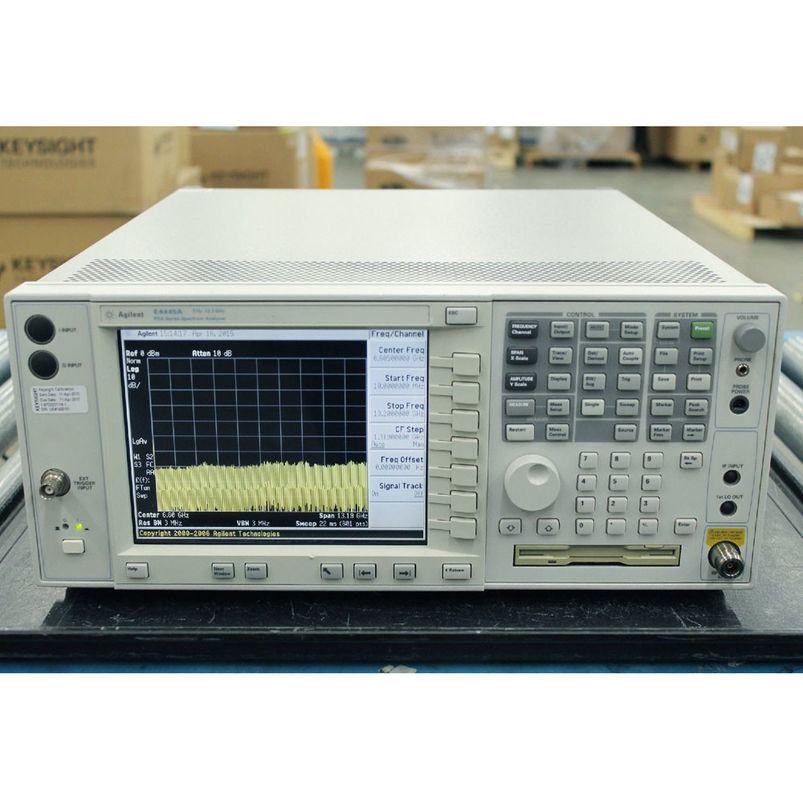

Keysight Agilent E4446A PSA Spectrum Analyzer 3 Hz to 44 GHz Pre-Owned Rackmount RF Analyzer

Name: Keysight Agilent E4446A PSA Spectrum Analyzer 3 Hz to 44 GHz Pre-Owned Rackmount RF Analyzer
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: E4446A
Availability: InStock

Brand Name:	Keysight/Agilent
Model Number:	E4446A
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

Product Name:

Spectrum Analyzer

Frequency:

3 Hz To 44 GHz

Form Factor:

Rackmount ( /1CM /1CP )

Average Noise Level:

-155 DBm - +19 DBm

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

Multipurpose E4446A Spectrum Analyzer

Portable E4446A Spectrum Analyzer

Keysight E4446A

Product Description

Multipurpose E4446A Spectrum Analyzer Portable For Keysight Agilent

Keysight Agilent E4446A PSA Spectrum Analyzer, 3 Hz to 44 GHz

Product Overview

The Agilent E4446A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 44 GHz. With optional external mixing, the frequency coverage extends to 110 GHz with the Agilent external mixer, and to 325 GHz with other vendors' mixers.

Migration from PSA to PXA

The PXA N9030A, Agilent's next-generation high-performance signal analyzer, combines the PSA's technical excellence with state-of-the-art technologies, making it a logical form-fit-functional replacement for the PSA. The new PXA N9030A offers greater performance, wider analysis bandwidth, and more powerful connectivity.

Performance Specifications

±0.19 dB absolute amplitude accuracy
-154 dBm displayed average noise level (DANL)
-118 dBc/Hz phase noise at 10 kHz offset
81 dB W-CDMA ACLR dynamic range

Analysis Bandwidth

10 MHz analysis bandwidth (Option B7J for the Basic mode)
Optional 40 or 80 MHz analysis bandwidth to capture and measure complex signals
-78 dB (nominal) third order intermodulation for 40 or 80 MHz analysis bandwidth
Up to 300 MHz analysis bandwidth for calibrated VSA measurements

System Flexibility

Flexible platform with 16 optional, easy-to-use built-in measurement personalities and hardware options
Agilent's PowerSuite one-button power measurements included as standard

Available Options

Option Code	Description
015	6 GHz return-loss Measurement Accessory Kit
045	Millimeter Wave Accessory
071	Digital Demodulation H/W for S/N USUS4142/MY4140 Changed to B7J on newer models
0B0	Do not include manuals
0B1	Add Manual Set
0BV	Service Documentation, Component Level
0BW	Service Documentation, Assembly Level
107	Audio input 100 kOhm
110	RF/uW internal preamplifier
111	USB device side I/O interface
115	512 MB user memory
117	Secure memory erase
119	Noise Figure Hardware Kit. Standard on all models S/N > US4222/MY4100.
122	80 MHz bandwidth digitizer
123	Switchable MW Preselector Bypass
124	Y-axis video output
140	40 MHz bandwidth digitizer
1A7	PSA Series ISO 17025 compliant calibration with test data
1CM	Rackmount Kit
1CN	Handle kit
1CP	Rack mount kit with handles
1CR	Rack slide kit
1DS	RF internal preamplifier
202	GSM w/edge measurement personality
204	1xEV-DO Measurement Personality
210	HSDPA/HSUPA measurement personality
211	TD-SCDMA measurement personality
212	TD-SCDMA Modulation Analysis Measurement Personality
213	HSPA/8PSK for TD-SCDMA Modulation Analysis Measurement Personality
214	1xEV-DV measurement personality
215	External Source Control Measurement Personality
217	WLAN Measurement Personality
219	Noise figure measurement personality
226	Phase noise measurement personality
230	Benchlink web remote control software
233	Built-in measuring receiver personality
235	Wide BW digitizer external cal wizard
239	EMC measurement personality
23A	AM/FM/PM triggering for measuring receiver
23B	CCITT filter for audio measurements
241	Flexible digital modulation analysis
266	Programming code compatibility suite measurement personality
423	Switchable Microwave Preselector Bypass. Available for all models with S/N
426	Gated Sweep Hardware. Standard on all models >S/N US/MY4336.
515	Attenuator to RF Cable
516	40 MHz BW IF output - low band
517	Boris DIF --with opt 122 or 124
518	Natasha DIF -- no opt 122 or 124
520	Preselector bias cable - no opt HNQ
627	Required for all options except HT1
628	Required for all options except 111
629	Required for 110 or 123 or 110 with 123
630	Required for option 110 without 123
631	Required for 123 without 110
632	Required for option 110 with 123
633	Required for all options except HS1, HS7 and HT1
701	Delete TV Sync. Trigger Capability, Fast Time Domain Sweeps, AM/FM Demodulator and Analog + Display
903	POWER CORD
A6J	PSA Series ANSI Z540 compliant calibration with test data
AB1	Korea Quick Users Guide (Korean localization)
AB2	China Quick Users Guide (Chinese localization)
ABA	U.S. Quick Users Guide (English localization)
ABD	Germany Quick Users Guide (German localization)
ABE	Spain Quick Users Guide (Spanish localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ABZ	Italy Quick Users Guide (Italian localization)
ANE	64 MB Flash Ram Memory. Shipped Standard on all 46A/47A/48A Models. Shipped Standard on all models >US/MY4222
ATP04	ATP LEADTIME ITEM FOR E4446A-H7L
ATP05	ATP LEADTIME ITEM FOR E4446A-HB2
ATP06	ATP LEADTIME ITEM FOR E4446A-HGT
ATP07	ATP LEADTIME ITEM FOR E4446A-HN9
ATP08	ATP LEADTIME ITEM FOR E4446A-JMP
AYZ	External mixing
B78	CDMA2000 Measurement Personality
B7J	Digital demodulation hardware
BAB	3.5 mm RF input connector
BAC	CDMAOne Measurement Personality
BAE	NADC,PDC Measurement Personality
BAF	W-CDMA Measurement Personality
H25	25 MHz IF Output
H26	High Band Preamplifier (Discontinued) Replaced by option 110.
H47	E4446A-H47 is a temporary option to pre-order the E4447A for export to China.
H70	70 MHz IF Output
H7L	Auxiliary Wideband Log Video Output
HB2	21.4 MHz IF Output
HB6	Prevent Unauthorized F/W upgrade
HBA	Rear Panel RF Input
HN8	Wideband Preselector Bypass (No Preselector)
HN9	80 MHz wide baseband IF output at 321.4 MHz for frequencies less than 3.05 GHz
HNQ	I/Q Front Panel Output connectors with hardware for use with 89600A.
HS1	Increase level of security write protects to user files
HS7	Security erase software
HT1	GPS Interface Card for Trimble GPS
HX4	140 MHz IF output on rear panel
HY7	Improved Gain 70 MHz IF Output
JMP	Rear panel jumper cable
N6171A	MATLAB Software
N6171A-M01	MATLAB - Basic Package
N6171A-M02	MATLAB - Standard Package
N6171A-M03	MATLAB - Advanced Package
N9051A	Pulse measurement software
N9051A-2FP	Pulse measurement software, fixed, perpetual, license
N9051A-3FP	Phase & Frequency Measurements
N9051A-4FP	Extended Analysis & Statistics
PS-S20-01	Recommended Startup assistance
R-50C-001	Standard Calibration w/data. Replaced UK6
R-50C-002	Traceable Calibration standards compliant initial receipt. (ANSI-Z540/17025)
R-50C-011-3	Agilent Calibration - 3 years
R-50C-011-5	Agilent Calibration - 5 years
R-50C-016-3	ISO 17025 Compliant Calibration - 3 years
R-50C-016-5	ISO 17025 Compliant Calibration - 5 years
R-50C-021-3	ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5	ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C	Return to Agilent Warranty - 3 years
R-51B-001-5C	Return to Agilent Warranty - 5 years
R-51B-001-C	Return to Agilent Warranty - 1 year
R-52A-001-3	3 Year Calibration License (Commercial)
R-52A-001-L	Lifetime Calibration License (Commercial)
R-52A-002-3	3 Year Calibration License (Z540/17025)
R-52A-002-L	Lifetime Calibration License (Z540/17025)
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UE2	Firmware Kit. CD-ROM.
UK6	Commercial Cal Certificate with Data
