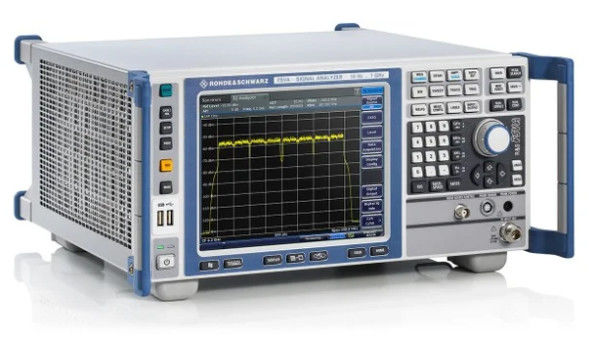

40 GHz Touchscreen Signal Spectrum Analyzer Rohde And Schwarz FSVA40

40 GHz Touchscreen Signal Spectrum Analyzer Rohde And Schwarz FSVA40

  • 40 GHz Touchscreen Signal Spectrum Analyzer Rohde And Schwarz FSVA40
  • 40 GHz Touchscreen Signal Spectrum Analyzer Rohde And Schwarz FSVA40
40 GHz Touchscreen Signal Spectrum Analyzer Rohde And Schwarz FSVA40
Product Details:
Place of Origin: Germany
Brand Name: Rohde and Schwarz
Certification: FCC
Model Number: FSVA40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Signal Analyzer Frequency: 40 GHz
Warranty: One Month Usage: Spectroradiometer Integrating Sphere Spectrum Analyzer For Led
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

40 GHz Signal Spectrum Analyzer

,

Touchscreen Signal Spectrum Analyzer

,

FSVA40

Rohde and Schwarz FSVA40 10 Hz to 40 GHz Spectrum Analyzers (Signal Analyzers)



Description of FSVA40 Spectrum and Signal Analyzer



Frequency range up to 4/7/13.6/30/40 GHz Up to 160 MHz signal analysis bandwidth Convenient, intuitive operation with touchscreen based user interface 0.4 dB level measurement uncertainty up to 7 GHz Low displayed average noise level (DANL) (e.g. typ. –168 dBm (1 Hz) for the R&S®FSVA) High third-order intercept (TOI) (e.g. typ. 20 dBm for the R&S®FSVA) Very low phase noise (e.g. typ. –118 dBc (1 Hz) at 1 GHz and 10 kHz offset for the R&S®FSVA) General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11ac), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000®/1xEV-DO, Bluetooth® Frequency range up to 500 GHz with harmonics mixers Keeping test data confidential with removable solid state or hard disk drives Features Broadband signal analysis Wealth of functions and performance for effective use in labs Rich set of PC software completes the measurement option portfolio Brief Description The R&S®FSV and the R&S®FSVA are a family of versatile signal and spectrum analyzers for users working in the development, production, installation and servicing of RF systems.



List of Options
FSV-B21 LO/IF Ports for External Mixers
FSV-B24 Preamplifier, 9 kHz to 13.6 GHz
FSV-B4 OCXO, Precision Reference Frequency
FSV-B5 Additional Interfaces (IF/video output, AUX port, trigger output, two additional USB ports)
FSVA-B11 YIG preselector bypass
FSVA-B40 40 MHz Analysis Bandwidth

Product Overview

The FSV and the FSVA are a family of versatile signal and spectrum analyzers for users working in the development, production, installation and servicing of RF systems.

Its high dynamic range and low phase noise make the FSVA the perfect instrument for demanding spectral measurements such as ACLR measurements on narrowband signals and phase noise measurements with the FSV-K40 option.

The optional YIG preselector bypass allows signal analysis with up to 160 MHz analysis bandwidth over the instrument’s full frequency range, up to 40 GHz.

Together with the PC based VSE signal analysis software and the VSE-K6 pulse measurement option, the FSVA signal and spectrum analyzer delivers an in-depth pulse analysis solution. The software displays all relevant parameters such as pulse duration, pulse period, pulse rise and fall times, power drop across a pulse and intrapulse phase modulation, and produces a trend analysis over many pulses.





FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
