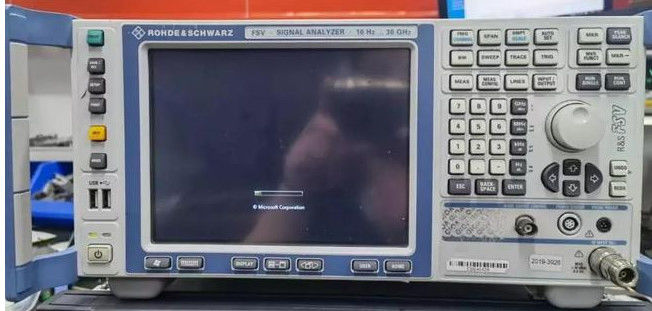

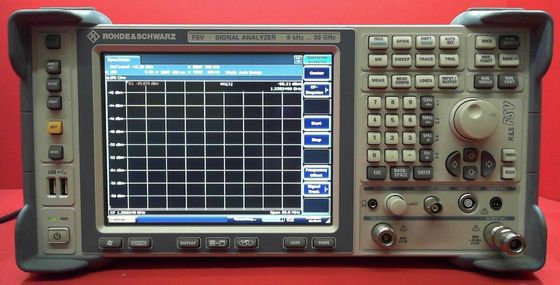

Used Vector EMI Signal Spectrum Analyzer Rohde & Schwarz FSV30

Used Vector EMI Signal Spectrum Analyzer Rohde & Schwarz FSV30

  • Used Vector EMI Signal Spectrum Analyzer Rohde & Schwarz FSV30
  • Used Vector EMI Signal Spectrum Analyzer Rohde & Schwarz FSV30
Used Vector EMI Signal Spectrum Analyzer Rohde & Schwarz FSV30
Product Details:
Place of Origin: Germany
Brand Name: Rohde and Schwarz
Certification: FCC
Model Number: FSV30
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Signal Analyzer Frequency: 30 GHz
Warranty: One Month Usage: Spectroradiometer Integrating Sphere Spectrum Analyzer For Led
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Highlight:

Vector Signal Spectrum Analyzer

,

EMI Signal Spectrum Analyzer

,

Rohde & Schwarz FSV30

FSV30 Rohde & Schwarz Spectrum Signal Analyzer Used



Description of FSV30 Spectrum and Signal Analyzer



Additional Features:

  • Frequency range: 10 Hz to 30 GHz
  • Up to 160 MHz signal analysis bandwidth
  • Convenient, intuitive operation with touchscreen based user interface 5 GHz
  • 0.4 dB level measurement uncertainty up to 7 GHz
  • –110 dBc (1 Hz) phase noise at 10 kHz frequency offset
  • +15 dBm third-order intercept (TOI)
  • Displayed average noise level (DANL) in 1 Hz bandwidth: –155 dBm at 1 GHz, –147 dBm at 30 GHz; with R&S FSV-B24 preamplifier: –162 dBm at 30 GHz
  • General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics
  • Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11 AC), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000®/1xEV-DO, Bluetooth®
  • Frequency range up to 500 GHz with harmonics mixers
  • Keeping test data confidential with removable solid state or hard disk drives

Supported Technologies;

  • WLAN 802.11a/b/g/j/p/n/AC
  • WCDMA/HSPA/HSPA+
  • 3GPP LTE
  • GSM/EGPRS/EDGE/EDGE Evolution/VAMOS
  • CDMA2000® 1xEV-DO
  • CDMA2000® 1xRTT
  • TD-SCDMA
  • AM
  • FM
  • PM

The R&S FSV30 is a versatile signal and spectrum analyzer for users working in the development, production, installation and servicing of RF systems. The R&S FSV30 is the ideal instrument for all general-purpose measurement tasks – on the bench, in production, and in the field. It provides digital modulation analysis for the latest cellular and wireless standards with up to 160 MHz analysis bandwidth for measurements on components, chipsets and base stations.

Typical measurement tasks include standard-compliant spectrum emission mask measurements as well as spurious emission and adjacent channel leakage ratio (ACLR) measurements. Measurement applications for EMI diagnostics, phase noise, noise figure, analog demodulation and vector signal analysis complete the range of functions offered by the versatile R&S FSV.



Options:



B22 Preamplifier option
B24 RF Preamplifier (9 kHz to 40 GHz)
B25 Electronic Attenuator, 1 dB steps
B29 Frequency Range Extension to 20 Hz
B3 Audio demodulator
B4 OCXO Reference Frequency
B5 Additional Interfaces
K100 Analysis of EUTRA/LTE FDD Downlink Signals
K101 Analysis of EUTRA/LTE FDD Uplink Signals
K14 Spectrogram Measurements
K30 Noise Figure and Gain Measurements
K40 Phase Noise Measurement Application
K7 Analog Modulation Analysis for AM, FM, fM
K70 Vector Signal Analysis
K72 Analysis of 3GPP FDD Base Station Signals incl. HSPA+
K82 Analysis of CDMA2000® Base Station Signals
K84 Analysis of 1xEV-DO Base Station Signals
K9 Power Sensor Measurement with R&S®NRP Power Sensors




FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
