Signal Spectrum Analyzer
Created with Pixso. FCC Touchscreen Signal And Spectrum Analyzer , R&S FSV7 9 KHz To 7 GHz

FCC Touchscreen Signal And Spectrum Analyzer , R&S FSV7 9 KHz To 7 GHz

Brand Name: Rohde and Schwarz
Model Number: FSV7
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Germany
Certification:
FCC
Product Name:
Signal Analyzer
Frequency:
7 GHz
Warranty:
One Month
Usage:
Spectroradiometer Integrating Sphere Spectrum Analyzer For Led
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Packaging Details:
carton
Supply Ability:
in stock
Highlight:

FCC Signal And Spectrum Analyzer

,

Touchscreen Signal And Spectrum Analyzer

,

R&S FSV7

Product Description

FSV7 Rohde & Schwarz Spectrum Signal Analyzer Used



Description of FSV7 Spectrum and Signal Analyzer





Additional Features:

  • Frequency range: 10 Hz-7 GHz
  • Up to 160 MHz signal analysis bandwidth
  • Convenient, intuitive operation with touchscreen based user interface 5 GHz
  • 0.4 dB level measurement uncertainty up to 7 GHz
  • –110 dBc (1 Hz) phase noise at 10 kHz frequency offset
  • +15 dBm third-order intercept (TOI)
  • Displayed average noise level (DANL) in 1 Hz bandwidth: –155 dBm at 1 GHz, –147 dBm at 30 GHz; with R&S FSV-B24 preamplifier: –162 dBm at 30 GHz
  • General-purpose measurement applications for phase noise, noise figure, vector signal analysis, analog demodulation, EMI diagnostics
  • Wireless measurement applications for LTE (including LTE-Advanced), WLAN (including IEEE 802.11 AC), WCDMA/HSPA+, TD-SCDMA, GSM/EDGE, CDMA2000®/1xEV-DO, Bluetooth®
  • Frequency range up to 500 GHz with harmonics mixers
  • Keeping test data confidential with removable solid state or hard disk drives

Supported Technologies:

  • WLAN 802.11a/b/g/j/p/n/AC
  • WCDMA/HSPA/HSPA+
  • 3GPP LTE
  • GSM/EGPRS/EDGE/EDGE Evolution/VAMOS
  • CDMA2000® 1xEV-DO
  • CDMA2000® 1xRTT
  • TD-SCDMA
  • AM
  • FM
  • PM

The R&S FSV7 is a versatile signal and spectrum analyzer for users working in the development, production, installation and servicing of RF systems. The R&S FSV7 is the ideal instrument for all general-purpose measurement tasks – on the bench, in production, and in the field. It provides digital modulation analysis for the latest cellular and wireless standards with up to 160 MHz analysis bandwidth for measurements on components, chipsets and base stations.

Typical measurement tasks include standard-compliant spectrum emission mask measurements as well as spurious emission and adjacent channel leakage ratio (ACLR) measurements. Measurement applications for EMI diagnostics, phase noise, noise figure, analog demodulation and vector signal analysis complete the range of functions offered by the versatile R&S FSV.


List of Options

B22 Preamplifier option
B24 RF Preamplifier (9 kHz to 40 GHz)
B25 Electronic Attenuator, 1 dB steps
B29 Frequency Range Extension to 20 Hz
B3 Audio demodulator
B4 OCXO Reference Frequency
B5 Additional Interfaces
K100 Analysis of EUTRA/LTE FDD Downlink Signals
K101 Analysis of EUTRA/LTE FDD Uplink Signals
K14 Spectrogram Measurements
K30 Noise Figure and Gain Measurements
K40 Phase Noise Measurement Application
K7 Analog Modulation Analysis for AM, FM, fM
K70 Vector Signal Analysis
K72 Analysis of 3GPP FDD Base Station Signals incl. HSPA+
K82 Analysis of CDMA2000® Base Station Signals
K84 Analysis of 1xEV-DO Base Station Signals
K9 Power Sensor Measurement with R&S®NRP Power Sensors



FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

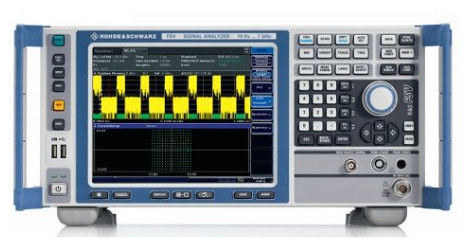

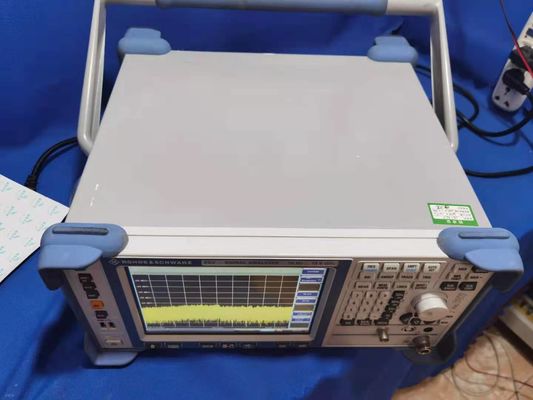

FCC Touchscreen Signal And Spectrum Analyzer , R&S FSV7 9 KHz To 7 GHz 0FCC Touchscreen Signal And Spectrum Analyzer , R&S FSV7 9 KHz To 7 GHz 1
