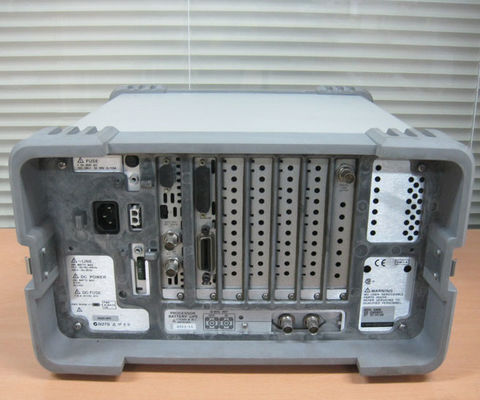

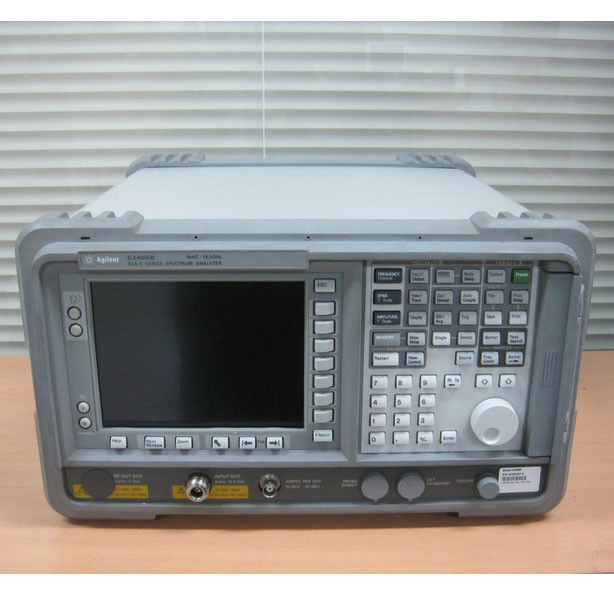

E4405B ESA-E RF Spectrum Analyzer 9kHz-13.2GHz Keysight Agilent

E4405B ESA-E RF Spectrum Analyzer 9kHz-13.2GHz Keysight Agilent

  • E4405B ESA-E RF Spectrum Analyzer 9kHz-13.2GHz Keysight Agilent
  • E4405B ESA-E RF Spectrum Analyzer 9kHz-13.2GHz Keysight Agilent
E4405B ESA-E RF Spectrum Analyzer 9kHz-13.2GHz Keysight Agilent
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight/Agilent
Model Number: E4405B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: RF Spectrum Analyzer Frequency: 100 Hz To 13.2 GHz
Form Factor: Portable/Rackmount ( /K45 ) Average Noise Level: -166 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

E4405B RF Spectrum Analyzer


13.2GHz RF Spectrum Analyzer


Portable ESA E Spectrum Analyzer

Keysight Agilent E4405B ESA-E Spectrum Analyzer 9 kHz to 13.2 GHz

Description of Keysight Agilent E4405B

Customers looking for a general purpose spectrum analyzer will appreciate the flexibility of the ESA spectrum analyzer that can be used for a wide range of applications from aerospace and defense to the manufacturing line. Browse the ESA Brochure.

Customers who wish to take advantage of the ESA flexibility but who need a faster analyzer for the manufacturing line, or connectivity to LAN/USB in addition to GPIB, or want to do in depth signal analysis with 89600B VSA software will benefit from the new EXA signal analyzer. The EXA signal analyzer now comes standard with many of the ESAs optional features and yet offers more applications than the ESA.



  • 0.4 dB overall amplitude accuracy
  • +16 dBm TOI
  • -167 dBm DANL, with internal preamp
  • 1 Hz narrow resolution bandwidth (optional)

Measurement Application Software

  • Phase Noise, Noise Figure, GSM/EDGE, cdmaOne and more view full list of measurement applications
  • Agilent''s PowerSuite one-button power measurements as standard


  • Fast delivery and favorably priced
  • Segmented sweep for up to 32 discontinuous spans in one sweep
  • Rugged and portable for lab grade performance in the field
  • 5 minute warm-up to guaranteed measurement accuracy

Configuration Selections

  • Standard express analyzer E4405B-STD for faster delivery time, includes options AYX, BAA.
  • Standard express analyzer with tracking generator E4405B-STG for faster delivery time, includes options 1DN, AYX, BAA.
  • Communications test express analyzer E4405B-COM for faster delivery time, includes options 1D5, 1DR, B7D, BAA.
  • Custom configuration for maximum flexibility with standard delivery time.
List of Options
042 Gray spectrum analyzer backpack
044 Yellow spectrum analyzer backpack
060 Reduced emissions
0B0 Do not include manuals
0B1 Add Manual Set
0BV Service Documentation, Component Level
0BW Service Documentation, Assembly Level
106 Bluetooth FM demodulator
120 Enhanced Wide Offset Phase Noise and ACPR Dynamic Range
1A7 ESA Series ISO 17025 compliant calibration with test data
1AX RS-232 and Centronics interface
1CP Rackmount and handle kit
1D5 High stability frequency reference
1D6 Time-gated spectrum analysis
1D7 50 -75 ohm minimum loss pad(s)
1DN Tracking generator
1DP 75 Ohm input impedance
1DR Narrow resolution bandwidths
1DS Preamp
219 Noise figure measurement personality and hardware
225 License Pre-Installed Cable fault location personality
226 License Pre-Installed Phase noise measurement personality
227 License Pre-Installed Cable TV measurement personality
228 License Pre-Installed Bluetooth measurement personality
229 License Pre-Installed Modulation Analysis meas. Personality
230 BenchLink web remote control software
231 ESA to 89600 series software link update
252 License Pre-Installed EDGE upgrade to GSM Measurement Personality
266 HP8568/8566B code compatibility
290 859x programming code compatibilty
304 Bluetooth premium opt. Bundle
545 Standard frequency reference
A4H GPIB and Centronics interface
A4J IF, Sweep, and Video Ports
A5D 12 Vdc power cable
A6J ESA Series ANSI Z540 compliant calibration with test data
AB0 Taiwan Quick Users Guide (Chinese localization)
AB1 Korea Quick Users Guide (Korean localization)
AB2 China Quick Users Guide (Chinese localization)
ABD Germany Quick Users Guide (German localization)
ABE Spain Quick Users Guide (Spanish localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ABZ Italy Quick Users Guide (Italian localization)
AKT Russia - Russian localization (includes English manual set)
AXT Add transit case
AYQ FM demodulation and quasi peak detector
AYT Gray soft carrying/operating case
AYU Yellow soft carrying/operating case
AYX Fast time domain sweep
AYZ External Mixing
B70 BenchLink spectrum analyzer S/W
B72 Increase memory to 16MB
B74 RF and Digital communications (1D5, 1D6, 1DR, 1DS, B7D B7E)
B75 Performance opts. Bundle (1D5, 1DR, 1DS )
B7B TV trigger and picture on screen
B7D Digital signal processing and fast ADC
B7E RF communications hardware
B7K Cable fault measurement kit
BAA FM demodulation
BAC License Pre-Installed CDMAOne Measurement Personality
BAH License Pre-Installed GSM/GPRS measurement personality
COM Communication test analyzer (1D5, 1DR, B7D, B7E, BAA)
H70 70 MHz IF Output
HSB Permits use with TEK 1405 NTSC TV sideband adapter by providing LO out
HYQ Quasi peak detector
J36 FM Deviation Personality Enhancement
K41 Connectorized rackmount kit for rear access of RF IN
K45 Connectorized rackmount kit includes 5 cables and rackmount kit
R-50C-011-3 Agilent Calibration - 3 years
R-50C-011-5 Agilent Calibration - 5 years
R-50C-016-3 ISO 17025 Compliant Calibration - 3 years
R-50C-016-5 ISO 17025 Compliant Calibration - 5 years
R-50C-021-3 ANSI Z540-1-1994 Calibration - 3 years
R-50C-021-5 ANSI Z540-1-1994 Calibration - 5 years
R-51B-001-3C Return to Agilent Warranty - 3 years
R-51B-001-5C Return to Agilent Warranty - 5 years
R-51B-001-C Return to Agilent Warranty - 1 year
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
STD Standard analyzer (AYX, BAA)
STG Standard analyzer with tracking generator (1DN,AYX, BAA)
UK6 Commercial cal. Certificate w/test data
UK9 Front panel cover
UKB 100 Hz low frequency extension
