Tektronix P80318 Handheld Differential Impedence TDR Probe ; 18GHz, 100 Ohm For The DSA8300


Description of TEK P80318

The P80318 Differential TDR Probe provides effective solutions for characterizing board impedance and electrical signal characteristics. With an input impedance of 100 ohms (Ω) and a bandwidth of 18 GHz, the P80318 Handheld Differential TDR Probe enables highly accurate impedance measurements of differential transmission lines. The probe step setting enables the probe to examine a wide range of impedances and differential line spacings.

The P80318 can be used as a stand-alone probe, but is primarily designed to work with the 80A02 ESD protection module.

The P80318 18 GHz variable pitch handheld differential TDR probe delivers high performance and ensures fast, accurate backplane and block measurement.

The difference between the P80318 and P80318X probes is that the latter has an additional housing, which is convenient if the base housing needs to be repaired.

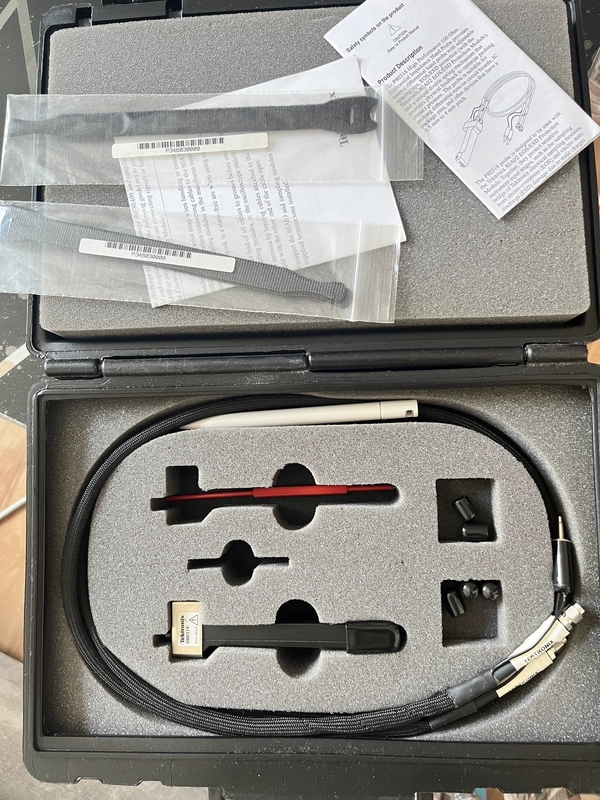

Features of TEK P80318:

• Bandwidth 18 GHz
• 50 Ohm resistance (differential resistance 100 Ohm)
• Differential Passive Handheld Probes with Dual SMA Cable Set
• Soft storage case
• User Manual
• Three replaceable terminals against short circuits
