• Direct power monitoring on PC
• Average power (RMS value)
• Peak envelope power (PEP) and crest factor
• Average burst power
• Complementary cumulative distribution function (CCDF)

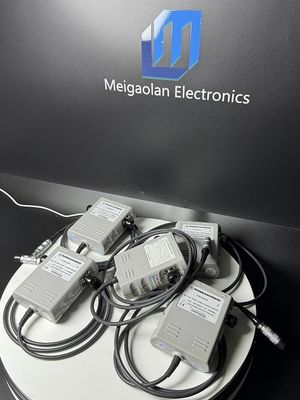

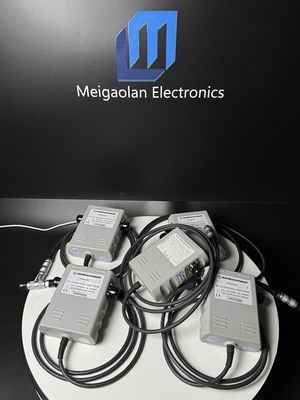

Key Facts of Rohde And Schwarz NRT-Z14 Directional Power Sensors

• Frequency range:25 MHz to 1 GHz

• Measurement range AVG:6 mW to 120 W, PEP:0.4 to 300W

• Low insertion loss

• Measurement of average power, average burst power, peak power, crest factor, CCDF and mismatch

• Can be used in traditional analog radio and broadcast frequency bands

Average power (RMS value) of Rohde And Schwarz NRT-Z14 Directional Power Sensors

• This function returns the average value of the power for any type of test signal (modulated, unmodulated or several carriers). It features a measurement range of 35 dB to 40 dB and high measurement accuracy.

Peak envelope power (PEP) and crest factor of Rohde And Schwarz NRT-Z14 Directional Power Sensors

• Both parameters provide information on the peak power of a modulated envelope and describe the overdrive characteristics of transmitter output stages. The result of the crest factor measurement is referenced to the average power and displayed in dB. Measurements are performed using a video bandwidth that is adjustable in several steps, so that even short-time and high-power peaks can be determined.​

Average burst power of Rohde And Schwarz NRT-Z14 Directional Power Sensors

• This function can be used to measure modulated and unmodulated bursts based on the average power and the duty cycle. Both can be defined by the user or determined automatically by the power sensor.

Complementary cumulative distribution function (CCDF) of Rohde And Schwarz NRT-Z14 Directional Power Sensors

• This function measures the probability of the peak envelope power exceeding a preset threshold so that the amplitude distribution of signals with an unknown envelope can be determined.​
