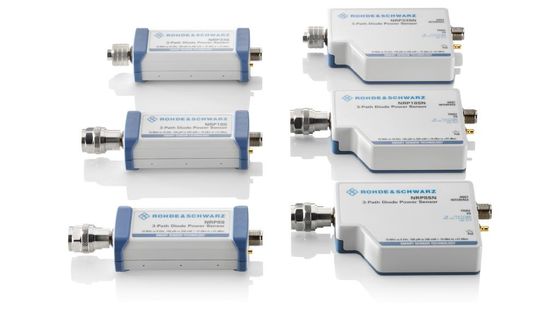

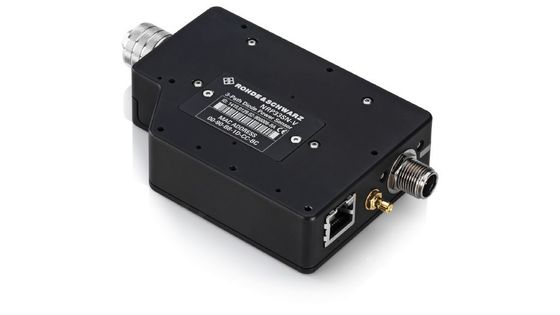

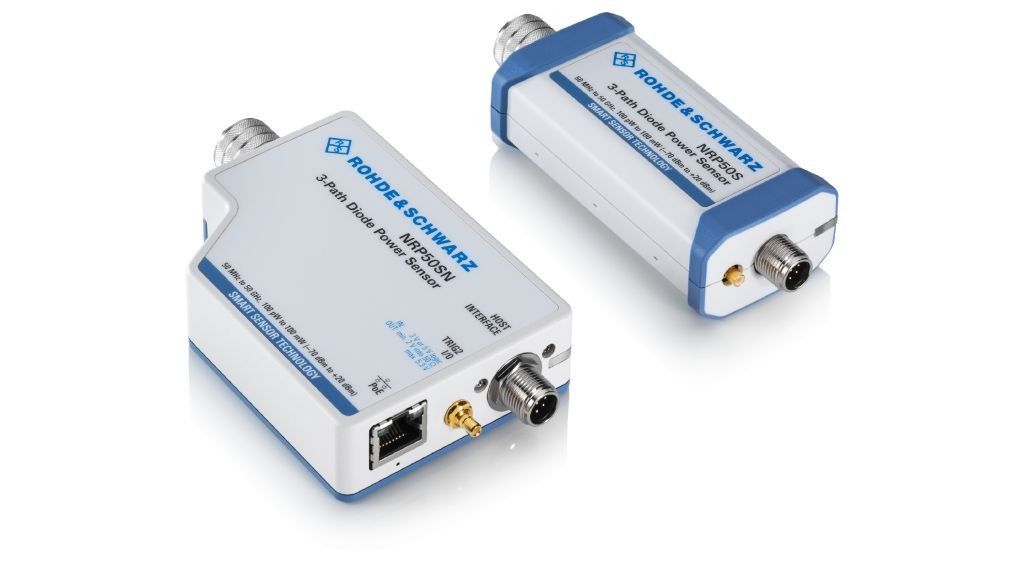

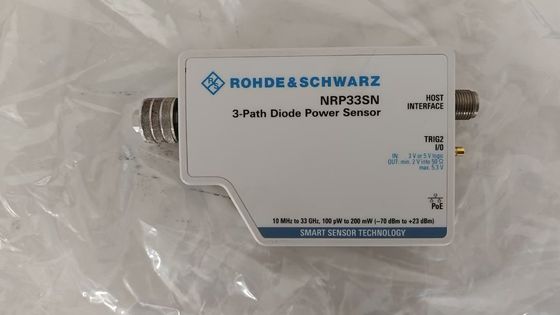

R&S NRPxxS NRP33S NRP33SN NRP33SN-V three-path diode power sensors

Description of NRPxxS NRP33S NRP33SN NRP33SN-V three-path diode power sensors

The R&S®NRPxxS/SN power sensors use three separate diode paths, each operated in the optimum detector range. As a result, the average power can be determined with high accuracy independent of the modulation type. Measurement results are hardly affected by interfering signals or harmonics. The R&S®NRPxxS/SN power sensors therefore behave in a way similar to thermal power sensors but offer significantly higher speed. They provide up to 93 dB dynamic range with an excellent lower measurement limit of –70 dBm.

Key features of NRPxxS NRP33S NRP33SN NRP33SN-V three-path diode power sensors

The most important features for accurate and uncomplicated power measurements are top measurement accuracy and speed as well as simple operation on a base unit or a computer. The NRP sensors provide these characteristics in a comprehensive portfolio of LAN and USB power sensors.

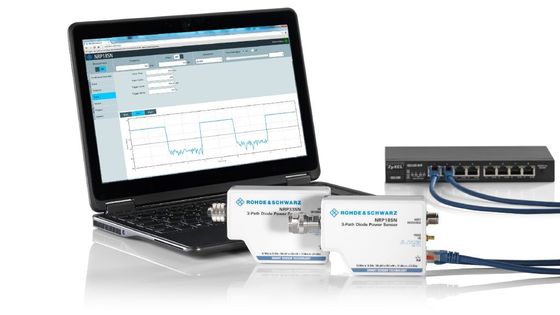

All NRP sensors are independent measuring instruments. Using a USB adapter, you can directly connect them to a computer and operate them via the R&S NRPV software.

Functions and performance features:
● Fully characterized power sensors
● Minimized measurement uncertainty
● Intelligent averaging function minimizes measurement time
● Versatile measurement functions
Additional features:
● USBTMC for easy system integration
● Built-in trigger I/O port
● Sensor status at a glance with status LED
● Detachable cables for flexible operation

Sensor tour of NRPxxS NRP33S NRP33SN NRP33SN-V three-path diode power sensors

List of Available models
