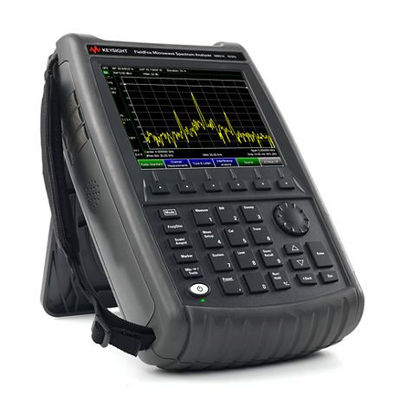

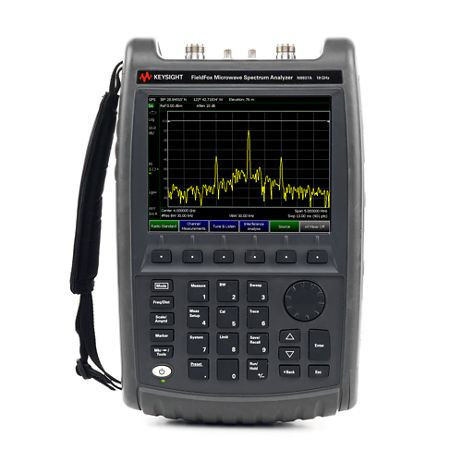

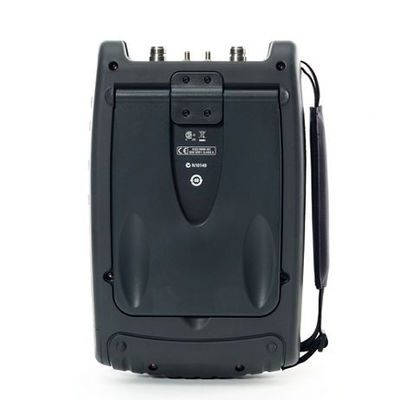

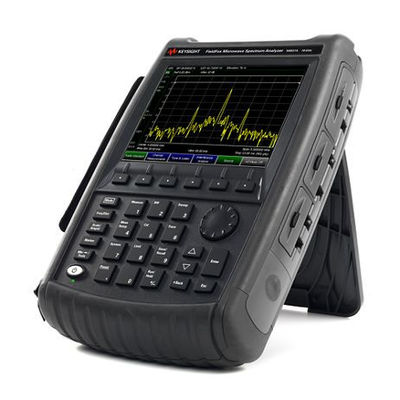

Keysight N9937A FieldFox Handheld Microwave Spectrum Analyzer, 18 GHz Max Frequency

Brand Name: Keysight
Model Number: N9937A
MOQ: 1 set
Price: Negotiable
Delivery Time: 1~3 Working Days
Payment Terms: T/T,Western Union
Detail Information
Place of Origin:
U.S.A
Certification:
ISO17025
Frequency Range:
5 KHz To 18 GHz
Number Of Built-In Ports:
2
Maximum Frequency:
18GHz
Weight:
3.0 Kg Or 6.6 Lb. Including Battery
Dimensions ( H X W X D):
292 X 188 X 72 Mm (11.5 In X 7.4 In X 2.8 In)
Frequency Reference Accuracy:
± 0.7 Ppm (spec) + Aging, ± 0.4 Ppm (typical) + Aging
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

N9937A FieldFox Handheld Microwave Spectrum Analyzer

,

Keysight N9937A Handheld Microwave Spectrum Analyzer

,

18 GHz Handheld Microwave Spectrum Analyzer

Product Description

Highlights of N9937A FieldFox Handheld Microwave Spectrum Analyzer

Never Sacrifice Capability or Portability

Keysight's FieldFox handheld spectrum analyzers are equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. Choose the Keysight FieldFox configuration that best meets your needs.

  • Make accurate spectrum analyzer measurements (± 0.5 dB) without warmup.
  • Capture intermittent signals with 10 MHz gap-free, real-time bandwidth.
  • Characterize radar pulse profiles with a portable solution.
  • Perform over-the-air measurements for 5G TF and LTE.
  • Capture I/Q data for RF signal monitoring and analysis.
  • Use GPS/GNSS for geolocation and timestamping.
  • Carry one lightweight unit at 3.0 kg (6.6 lb).



What's included:

  • AC/DC adapter
  • Localized power cord
  • Rechargeable Li-ion battery
  • Soft carrying case with backpack and shoulder straps
  • Quick Reference Guide



Options of N9937A FieldFox Handheld Microwave Spectrum Analyzer

Functionality
N9937A-030 Remote control capability
N9937A-208 USB power sensor measurements versus frequency
N9937A-209 Extended range transmission analysis (ERTA)
N9937A-220 Full-band tracking generator
N9937A-235 Pre-amplifier
N9937A-236 Interference analyzer and spectrogram
N9937A-238 Spectrum analyzer time gating
N9937A-302 USB power sensor support
N9937A-307 GPS receiver
N9937A-309 DC bias variable-voltage source
N9937A-310 Built-in power meter
N9937A-312 Channel scanner
N9937A-320 Reflection measurements (return loss, VSWR and scalar measurements)
N9937A-330 Pulse measurements
N9937A-350 Real-time spectrum analyzer (RTSA)
N9937A-351 I/Q analyzer
N9937A-355 Analog demodulation
N9937A-356 Noise figure measurements
N9937A-370 Over the air LTE FDD measurements
N9937A-377 Over the air 5G TF measurements
N9937A-352 Indoor and outdoor mapping
N9937A-358 EMF measurements
N9937A-371 Over the air LTE TDD measurements
N9937A-361 EMI measurements
N9937A-353 IQ streaming
