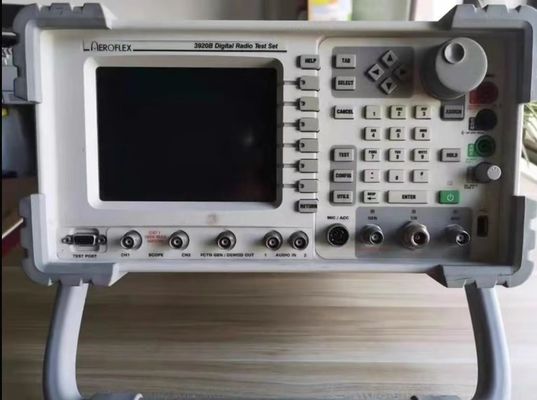

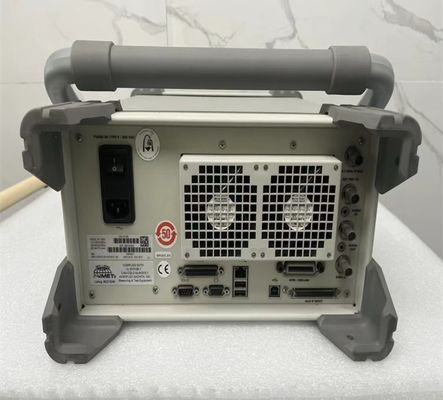

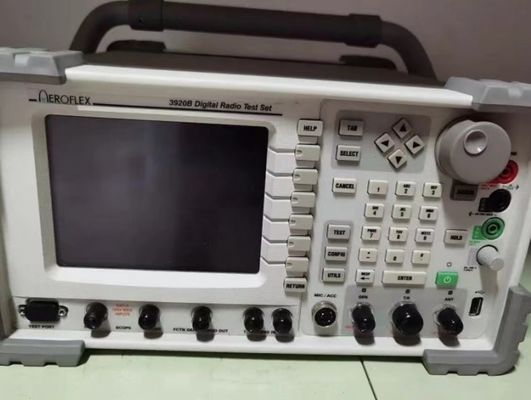

Aeroflex IFR Viavi 3920B Series Analog and Digital Radio Test Platform New Generation PMR Test Platform

Description of IFR3920B

The 3920 is the latest in next generation portable test for advanced professional analog and digital radio communications. Building upon a long-standing reputation for excellence in professional radio communication test, the 3920 from Aeroflex sets a new benchmark for quality, ease of use, performance and value.

Introducting the 3920B, the latest radio test solution from Aeroflex for engineering, production and field service applications. The Aeroflex 3920B features an improvement to the RF signal generator phase noise specification of -110 dBc/Hz at 10 kHz offset. The instrument provides a comprehensive range of general purpose analog measurement facilities as well as advanced digital test options. The 3920B includes many standard features as well as a host of optional test capabilities and digital personalities.

The Aeroflex 3920B Digital Radio Test Set replaces the Aeroflex 3920. The 3920B now includes a low phase noise signal generator. This greatly improves the performance for tests like receiver selectivity, or adjacent channel measures such as adjacent channel rejection ratio.

To make you more productive, the Aeroflex 3920B is not only simple to use but has features that makes testing a radio quick and repeatable. The 3920B features easy-to-read meters with Pass/Fail color coding for instant Go/NoGo testing. With these easy-to-configure meters, you can set up unique Pass/Fail parameters for each radio type that you are testing. When used with the save/recall locations, this allows for instant recall of the test parameters, so semi-technical or non-technical individuals can simply key the radio and test. The meters will display “Green” for good, “Red” for high and “Blue” for low. A quick glance and the operator will know that the radio is within established test parameters.

Platform:
Within the 3920 Series is a Pentium based processor coupled with a stable Linux platform provides a solid foundation for a powerful systems based test solution capable of addressing many different technologies. Three powerful digital signal processors can deliver unparalleled performance to address many different test requirements with ease. An internal 40 GB hard drive provides virtually unlimited storage for user setups, screen shots and test data. Files can be easily transferred to a USB thumb drive for external storage or processing. Setup files can be easily transferred from one instrument to another.

The platform also supports the ability to add software options to expand the measurement and signaling capabilities for communications systems that utilize advanced digital modulation and protocols.

Benefits

• The 3920B features a low phase noise RF signal generator for performing critical receiver testing required on critical communication radios.
• The 3920B includes many standard features as well as a host of optional test capabilities, digital personalities, and the Auto-Test II Alignment capability.
• The instrument provides a comprehensive range of general-purpose analog measurement facilities as well as advanced digital test options.
• To make you more productive, the 3920B is not only simple to use but has features that make testing a radio quick and repeatable.
• The 3920B features easy-to-read meters with Pass/Fail color coding for instant Go/NoGo testing. With these easy-to-configure meters, you can set up unique Pass/Fail parameters for each radio type that you are testing.
• Includes a host of automatic test and alignment for the most popular radios in the industry.

Standards and technologies supported

• AM
• FM
• SSB
• P25
• P25 Phase 2
• DMR (MOTOTRBO™)
• NXDN™
• TETRA
• dPMR

Key Technical Specifications

• Frequency Range: 10 MHz to 2.7 GHz
• Timebase: 0.01 ppm + aging
• Generate level range: +10 dBm to -130 dBm with ±1 dB accuracy (typical)
• Generator phase noise: <-110 dBc/Hz @ 10 kHz offset
• RF analyzer range: -130 dBm to 125 watts measurement range
• Direct input power: 50 W Continuous, 125 W Cyclical

List of Options
