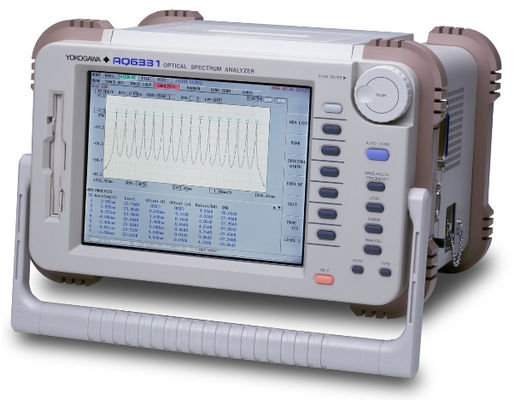

| Brand Name: | Ando |
| Model Number: | AQ6331 |
| MOQ: | 1 set |
| Price: | Negotiation |
| Payment Terms: | T/T |
Feature:
● Compact and lightweight: Approx. 10 kg
● Wavelength accuracy: ±0.02 nm (1520-1580 nm) ±0.05 nm (1580-1620 nm)
● Wavelength resolution: 0.05 nm (min.)
● Dynamic range: 55 dB (peak ±0.4 nm) 40 dB (peak ±0.2 nm)
● Internal wavelength calibration With a built-in wavelength reference
● One-key-operation With a built-in user programming function
● Unique long-term measurement function To monitor DWDM system stability and performance
● Various built-in analysis functions
Specifications
| Applicable fiber | Single mode fiber (10/125 µm) |
| Applicable Connector | FC-PC (Standard) |
| Wavelength range | 1200 to 1700 nm |
| Wavelength accuracy | ±0.02 nm (1520 to 1580 nm), < ±0.05 nm (1580 to 1620 nm), ±0.3 nm (1200 to 1700 nm) |
| Wavelength linearity | ±0.01 nm (1520 to 1580 nm), < ±0.02 nm (1580 to 1620 nm) |
| Wavelength reproducibility | ±0.005 nm (1 min.) |
| Wavelength resolution | 0.05 nm (Resolution setting: 0.05 nm, 1520 to 1620 nm) 0.1 nm (Resolution setting: 0.1 nm, 1520 to 1620 nm) Resolution setting: 0.05, 0.1, 0.2, 0.5, 1.0 nm Resolution accuracy: < ±5% (Resolution setting: ≤ 0.2 nm) |
| Measurement level range | -90 to +20 dBm (1200 to 1600 nm, sensitivity: HIGH3) -80 to +20 dBm (1600 to 1700 nm, sensitivity: HIGH3) |
| Level accuracy | ±0.3 dB typ. (1550 nm, 1600 nm) |
| Polarization dependency | ±0.05 dB (1550 nm, 1600 nm) |
| Level linearity | ±0.05 dB (Input power: 0 to -50 dBm, sensitivity: HIGH 1 to 3 |
| Level flatness | ±0.1 dB (1520 to 1580 nm) ±0.2 dB (1520 to 1620 nm) |
| Level reproducibilit | ±0.02 dB (1550 nm, 1600 nm) |
| Dynamic range | 55 dB (1523 nm, peak ±0.4 nm, 0.05 nm resolution) 40 dB (1523 nm, peak ±0.2 nm, 0.05 nm resolution) |
| Return loss | 30 dB typ. (Optical input, 1550 nm, 1600 nm) |
| Sweep time | Approx. 0.5 sec. (Span: 50 nm, sensitivity: NORMAL HOLD, number of sampling: AUTO, average: 1 |
| Functions | |
| Measurement condition | Auto-configuration, span, sensitivity (NORMAL HOLD/AUTO, HIGH 1/2/3), averageing, number of sampling (11 to 20001, AUTO), sweep between markers, 0-nm sweep, pulse light measurement |
| Trace display | 3 individual Traces (Max/Min, rolling avarage, data calculation), frequency/wavelength axis |
| Data analysis | WDM, EDFA, PMD, SMSR, search (Peak, Bottom), spectral width, notch-width, delta-marker, line marker |
| Others | Program, long-term measurement, wavelength self-calibration |
| Memories | FDD (3.5-inch 2HD), Internal memory (2MB) |
| Data output | Built-in high-speed printer |
| Interfaces | GP-IB, RS-232C, Keyboard (IBM compatible), Mouse (PS/2), Video (SVGA), Printer (Centronics), PCMCIA (1 x Type 3 or 2 x Type 2) |
| Display | 8.4-inch color LCD (800 x 600 dots) |
| Power requirements | AC100 to 120 V, AC200 to 240 V, 48 to 63 Hz, approx. 100 VA |
| Environmental conditions | Operating temperature: 0 to 50°C Storage temperature: -20 to 60°C Humidity: 90% or less (no condensation) |
| Dimensions and mass | Approx. 315(W) x 200(H) x 255(D) mm, approx. 10 kg |
| RMS | REMOTE MODEM SW |
| TC | TRANSIT CASE |
FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
|
|
