Keysight (Agilent) N2819A Differential Probe with AutoProbe, 10:1, 800 MHz

 Description of N2819A Differential Probe with AutoProbe

The N2819A differential probe provides superior high-speed differential signal measurements required for today’s high-speed power measurements, vehicle bus measurements and high-speed digital system designs. The N2819A differential probes offer 10:1 attenuation setting, allowing them to be used for a broad range of applications. The probe comes with a variety of probe tip accessories for use with large and small components in tight places. The probe also comes with a DC blocking capacitor to block out unwanted DC components of the input signal.

The differential probes have an input resistance of 200 kΩ and low input capacitance of 1 pF to minimize circuit loading. The N2819A probe is compatible with select InfiniiVision and Infiniium oscilloscope with 50 Ω AutoProbe interface input. The probe is powered directly by the InfiniiVision and Infiniium AutoProbe interface. For use with non-AutoProbe input oscilloscope, use the N2793A.

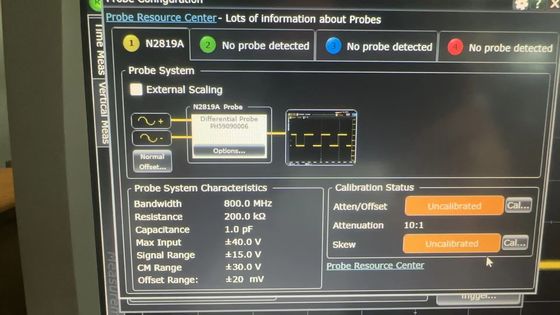

Specifications of N2819A Differential Probe with AutoProbe

• Wide dynamic range for various applications: ±15V differential, ±30V common mode
• High input resistance and low input capacitance for low probe loading: 200 kΩ//1pF between inputs
• Direct connection to AutoProbe interface (no power supply required)
• Ideal for high-speed power measurements, digital differential buses, and vehicle serial buses (CAN, LIN, FlexRay)

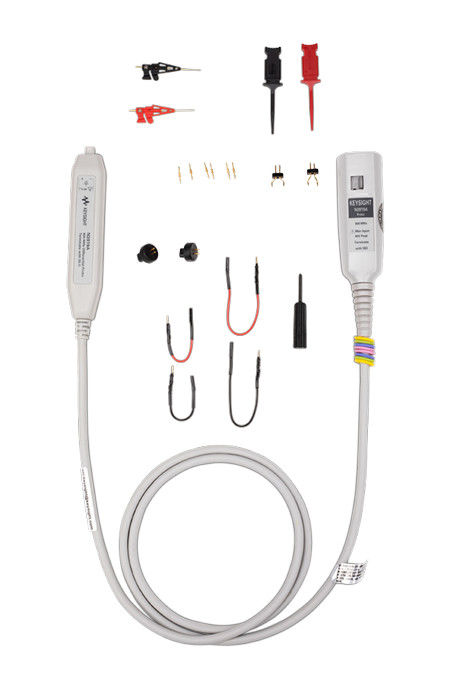

Standard accessories of N2819A

– 2 pincer clips (black and red)

– 2 micro IC clips (black and red)

– 2 extension leads, 0.8 mm J-P, 5 cm (black and red)

– 2 extension leads, 0.8 mm J-P, 10 cm (black and red)

– 2 DC blocking capacitors (30 kHz - 1 GHz, 100V max)

– 2 variable pitch spacing adapters

– 6 single signal pins, 0.8 mm

– 1 screw driver for offset adjustment
