Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis

Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis

  • Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis
  • Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis
Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis
Product Details:
Place of Origin: Germany
Brand Name: Rohde and Schwarz
Model Number: FSP40
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 9kHz - 40GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Rohde Schwarz FSP40 RF Spectrum Analyzer

,

Signal Analysis RF Spectrum Analyzer

,

40GHz RF Spectrum Analyzer

Rohde and Schwarz FSP40 General purpose Spectrum Analyzer 9kHz to 40 GHz


Features:



  • The FSP40 is a 40 GHz Spectrum Analyzer from Rohde & Schwarz. A spectrum analyzer measures the power of spectrums of known and unknown signals. Spectrum analyzers collect information such as the magnitude of an input signal compared to its frequency. As a frequency analyzer, spectrum analyzers' main use is to document and analyze electrical input signals as well as spectral compositions of other signals.
  • The Rohde & Schwarz FSP40 Spectrum Analyzer is capable of testing spurious emissions stipulated in the GSM specifications and has a firmware to allow adjacent-channel power (ACP) measurement to the W-CDMA/third-generation partnership project (3GPP).
  • This measurement is implemented in the Rohde & Schwarz FSP40 by automatic test routines which make all necessary settings, measurements and filtering. The electronic attenuator for a spectrum analyzer increases the availability for use in production and allows a number of switching operations in a wear-and-tear-free setting range of 30 dB in 5 dB steps.

Highlights:

  • 21 cm TFT colour display
  • 1 Hz to 10 MHz RBW
  • RMS detector for fast and reproducible measurements on digitally modulated signals
  • Frequency range 9 kHz to 3GHz, 7 GHz, 13 GHz, 30 GHz and 40 GHz
  • Resolution bandwidth 1 Hz to 10 MHz
  • Displayed average noise level -155 dBm (1 Hz)
  • Phase noise -113 dB (1 Hz) at 10 kHz
  • Channel filters from 100 Hz to 5 MHz and RRC filters
  • FFT filters from 1Hz to 30 kHz
  • EMI bandwidths and quasi-peak detector
  • Measurement functions for TOI, MC ACP(R), OBW, CCDF, APD, etc
  • Measurement applications for cellular standards and general purpose, e.g. phase noise, noise figure, etc
Specifications:
Frequency range 9 kHz to 40 GHz
Frequency resolution aging 1×10–6/year, with option ¸FSP-B4: 1×10–7
Spectral purity
Phase noise typ. –113 dBc (1 Hz) in 10 Hz carrier offset
Phase noise typ. 3 Hz
Sweep time
Span >10 Hz 2.5 ms to 16000 s
Span 0 Hz (zero span) 1 µs to 16000 s
Resolution bandwidths 10 Hz to 10 MHz, FFT filter: 1 Hz to 30 kHz, channel filter, EMI bandwidths
Video bandwidths 1 Hz to 10 MHz
Display range DANL up to +30 dBm
Displayed average noise level
40 GHz typ. –120 dBm
Total measurement uncertainty, f < 3GHz 0.5 dB
Linear level display 0.2 dB (0 dB to –70 dB)



List of Options
FSP-B1 Rugged Case, carrying handle (factory-fitted)
FSP-B3 AM/FM Audio Demodulator
FSP-B4 OCXO Reference Frequency
FSP-B6 TV Trigger/RF Power Trigger
FSP-B9 Internal Tracking Generator 9 kHz to 3 GHz, I/Q modulator, for all ¸FSP models
FSP-B10 External Generator Control for all ¸FSP models
FSP-B15 Pulse Calibrator for ¸FSP
FSP-B16 LAN Interface 100BT for all ¸FSP models with Windows XP (1164.4391.xx
FSP-B18 Removable Flash Disk
FSP-B19 Second Flash Disk for FSP-B18
FSP-B20 Extended Environmental Specification
FSP-B21 LO/IF Ports for External Mixers
FSP-B25 Electronic Attenuator, 0 dB to 30 dB, 5 dB steps, integrated preamplifier for ¸FSP3 and ¸FSP7
FSP-B28 Trigger Port for ¸FSP for indication of trigger conditions
FSP-B29 Frequency Range Extension 20 Hz for FSP13/30
FSP-B29 Frequency Range Extension 20 Hz for FSP40
FSP-B30 DC Power Supply for Spectrum Analyzers ¸FSP
FSP-B31 Battery Pack for Spectrum Analyzers ¸FSP
FSP-B32 Spare Battery Pack for Spectrum Analyzers  FSP
FSP-B70 Demodulation Hardware and Memory Extension
FS-K5 GSM/EDGE Application Firmware, Mobile
FS-K7 AM/FM/ϕM Measurement Demodulator
FS-K9 Power Sensor Measurements
FS-K30 Application Firmware for Noise Figure and Gain Measurements
FS-K40 Application Firmware for Phase Noise Measurements
FS-K72 3GPP BTS/Node B FDD Application Firmware
FS-K73 3GPP UE FDD Application Firmware
FS-K74 3GPP HSDPA BTS Application Firmware
FS-K76 3GPP TD-SCDMA BTS Application Firmware
FS-K77 3GPP TD-SCDMA UE Application Firmware
FS-K82 3GPP TD-SCDMA UE Application Firmware
FS-K83 CDMA2000® 1xEV-DV MS Application Firmware
FS-K84 CDMA2000® 1xEV-DO BTS Application Firmware
FS-K85 CDMA2000®-1xEV-DO MS Application Firmware
FS-K90 WLAN 802.11a TX Measurements Application Firmware
FS-K93 WiBro IEEE 802.16 OFDMA Measurements Application Firmware





FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

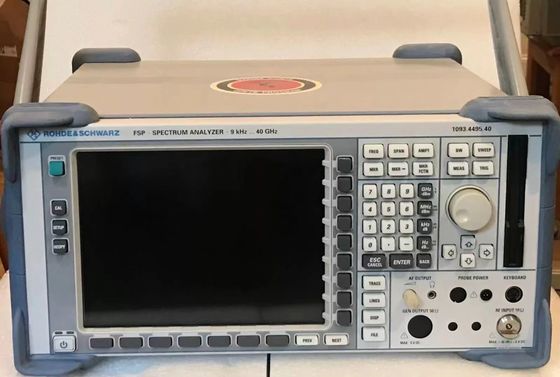

Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis 0

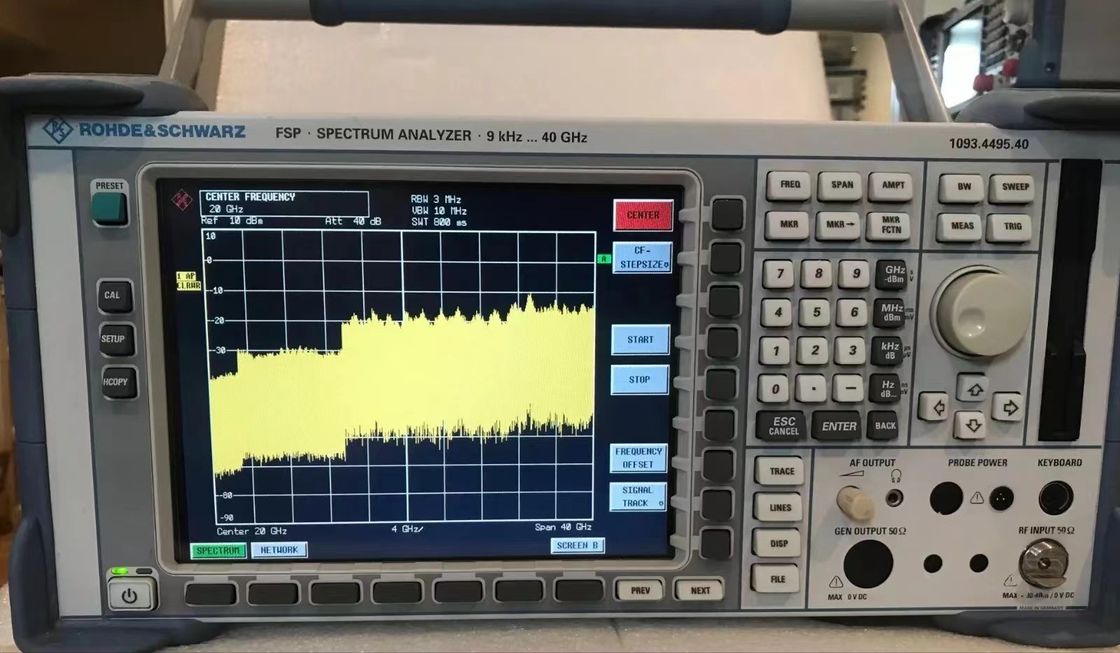

Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis 1



Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis 2

Rohde Schwarz FSP40 40GHz RF Spectrum Analyzer for Signal Analysis 3
