5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000

5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000

  • 5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000
  • 5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000
  • 5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000
  • 5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000
5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000
Product Details:
Place of Origin: Germany
Brand Name: Rohde and Schwarz
Certification: ISO:17025 Accredited Calibration
Model Number: FPL1003
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Instrument Type: Signal And Spectrum Analyzer Frequency: 5 Hz To 26.5 GHz
Form Factor: Benchtop Max. Analysis Bandwidth: 40 MHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Rohde And Schwarz FPL1000

,

5Hz-26.5Hz RF Spectrum Analyzer

,

26.5Hz RF Spectrum Analyzer

Rohde and Schwarz FPL1000 RF Spectrum Analyzer 2 Hz to 26.5 GHz



Description of FPL1000 Spectrum Analyzer

In an RF lab, the R&S®FPL1000 family is as indispensable as an oscilloscope or multimeter. It is a single instrument for many measurement tasks. It can be used for spectrum analysis along with highly accurate power measurements for power sensors and analysis of analog and digitally modulated signals.


Features:

  • SSB phase noise: typ. –108 dBc (1 Hz) at 10 kHz
  • Frequency range 5 kHz to 26.5 GHz
  • 40 MHz analysis bandwidth (option)
  • Lightweight with small footprint
  • DANL with preamplifier: typ. –163 dBm from 10 MHz to 2 GHz

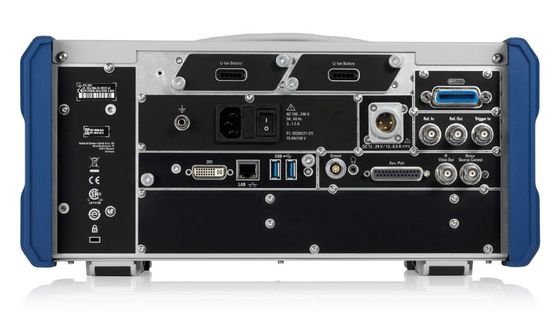

5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000 0

List of Options





FPL1-B4

OCXO accurate reference frequency

High precision frequency reference

FPL1-B5

Additional interfaces

Video out,IF out,noise source control,AUX port.connector for R&S NRP

FPL1-B9 Internal generator up to 3 GHz
FPL1-B9 Internal generator for 7/14/26.5 GHz
FPL1-B10

GPIB interface

Additional interface for remote control by GPIB, plug-in unit

FPL1-B11

YIG preselector bypass

Enables full 40 MHz bandwidth analysis in frequencies up to 26.5 GHz

FPL1-B19

Second hard disk (SSD)

(mounted on PC board)

FPL1-B22 RF preamplifier for 3/7.5 GHz
FPL1-B22 RF preamplifler for 14 GHz
FPL1-B22 RF Amplifier 26.5GHz
FPL1-B25 1 dB Steps for electronic attenuator
FPL1-B30 DC Power supply for 12/24 V supply
FPL1-B31 Li-lon battery pack
FPL1-B40

40 MHz analysis bandwidth

Enables the use of 40 MHz bandwiidth for R&S ZNLx-B1 spectrum analysis option

FPL1-K7 AM/FM/PM analog modulation analysis
FPL1-K9 Measurements with R&S NRP power sensors
FPL1-K40 Phase nosie measurement application
FPL1-K54 EMI measurement application
FPL1-K70 Vector signal analysis
FPL1-K70M Muti-modulation analysis
FPL1-K70P BER measurements with PRBS data

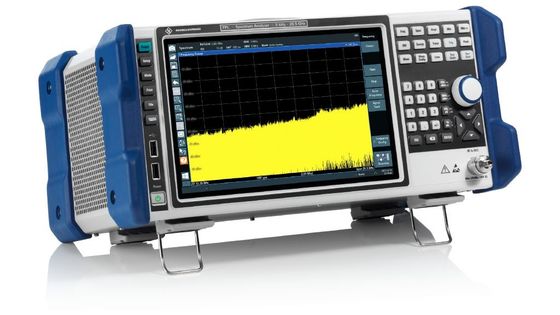

5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000 1



FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

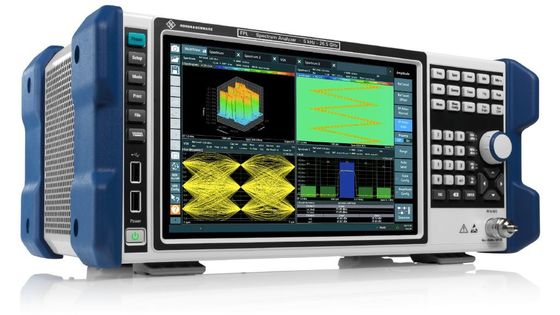

5Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000 25Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000 35Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000 45Hz-26.5Hz Signal RF Spectrum Analyzer Rohde And Schwarz FPL1000 5
