Anritsu MS2724B HandHeld Spectrum Master Analyzer High Performance 20Ghz

Anritsu MS2724B HandHeld Spectrum Master Analyzer High Performance 20Ghz

  • Anritsu MS2724B HandHeld Spectrum Master Analyzer High Performance 20Ghz
Anritsu MS2724B HandHeld Spectrum Master Analyzer High Performance 20Ghz
Product Details:
Place of Origin: USA
Brand Name: Anritsu
Certification: CNAS
Model Number: MS2724B
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 9 KHz To 20 GHz
Form Factor: Handheld Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Calibrated: Yes
High Light:

MS2724B HandHeld Spectrum Master Analyzer

,

Anritsu HandHeld Spectrum Master Analyzer

,

20Ghz HandHeld Spectrum Master Analyzer

 Anritsu MS2724B High Performance 20Ghz HandHeld Spectrum Master Analyzer
Description of Anritsu MS2724B:

The Anritsu MS2724B is the most advanced ultra-portable spectrum analyzer on the market, featuring unparalleled performance at a modest price.



Introduction
Continuous frequency coverage from 9 kHz to 20 GHz gives the wireless professional the performance needed for the most demanding measurements in harsh RF and physical environments. Whether you need spectrum monitoring, WiFi and WiFi5 installation and testing, RF and microwave signal measurements or cellular signal measurements, the MS2724B Spectrum Master is the tool to make your job easier and more productive.



High Performance Highlights
•  9 kHz to 20 GHz Input
•  1 Hz to 3 MHz RBW Range
•  Very Low Phase Noise (–104 dBc/Hz typical at 10 kHz offset at 2 GHz)
• Built-in AM/FM/SSB Demodulator
•  Built-in Preamplifier
•  65 dB Step Attenuator
•  True RMS Detection
•  2+ Hours of Battery Life
•  3.4 kg (7.5 lb)
•  3G Modulation options
•  GPS Receiver option
•  Quasi-peak detector and CISPR bandwidths





Smart Measurements
Occupied Bandwidth: Measures 99% to 1% power channel of a signal. Channel Power: Measures the total power in a specified bandwidth.
C/I: Measures carrier to interference ratio.
ACPR: Measures power levels in the channels immediately above and below the center channel.
Field Strength: Uses antenna calibration tables to measure dBm/meter2or dBmV/meter.





Upper/Lower Limit
Fixed and segmented: Each upper and lower limit can be made up of between one and 40 segments.

Functions
Multiple Marker: Display up to six markers on screen. Eachmarker includes a delta marker, effectively allowing up to 12 markers on screen. The user may also set marker 1 to be the reference for 6 delta markers.
Marker Table: Display a table of up to six marker frequency and amplitude values plus delta marker frequency offset and amplitude.
SPECIFICATIONS:
Frequency  Range: 9 kHz to 20 GHz
Preamp 100 kHz to 4 GHz
Tuning Resolution: 1 Hz
Frequency  Reference: Aging: ±1 ppm per 10 years
Accuracy: ±0.3 ppm (25 ºC ± 25 ºC) + aging
Frequency Span: 10 Hz to 20 GHz plus 0 Hz (zero span)
Span Accuracy: Same as frequency reference accuracy
Sweep Time: Zero span: 10 µs to 600s
Spans >0 Hz: Sweep time is automatically optimized.
Can be manually increased
Sweep Time Accuracy: ±2% in zero span
Sweep Trigger Free run, Single, Video, External
Resolution Bandwidth: (–3 dB) 1 Hz to 3 MHz in 1-3 sequence ±10%,
200 Hz, 9 kHz, 120 kHz when quasi-peak detector selected,
10MHz demodulation bandwidth
Video Bandwidth: (–3 dB) 1 Hz to 3 MHz in 1-3 sequence
SSB Phase Noise:
Offset from carrier:

10, 20 and 30 kHz
100 kHz
1 MHz
10 MHz
Max Max
9 kHz to 13 GHz 13 GHz to 20 GHz
–95 dBc/Hz –91 dBc/Hz
–97 dBc/Hz –93 dBc/Hz
–105 dBc/Hz –102 dBc/Hz
–120 dBc/Hz –116 dBc/Hz
Amplitude
Measurement Range : DANL to +30 dBm
Display Range: 1 to 15 dB/div in 1 dB steps. Ten divisions displayed.
Amplitude Units: Log Scale Modes: dBm, dBV, dBmv, dBµV
Linear Scale Modes: nV, µV, mV, V, kV, nW, µW, mW, W, kW
Attenuator Range 0 to 65 dB
Attenuator Resolution: 5 dB steps





FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .

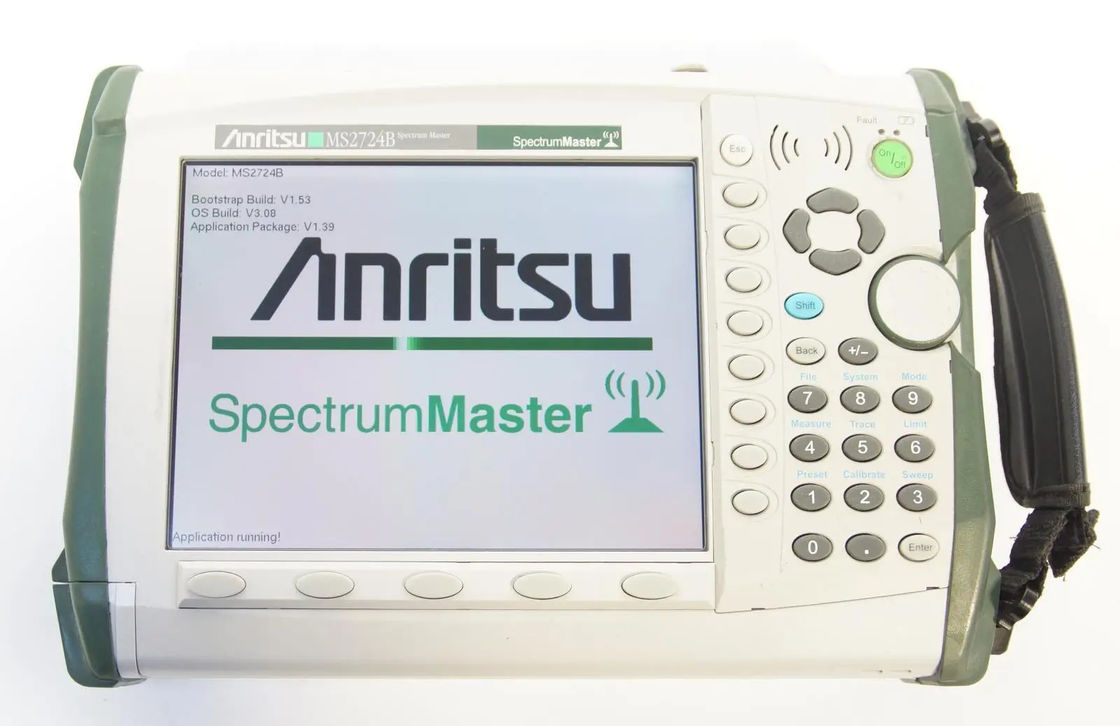

Anritsu MS2724B Spectrum Analyzer 100kHz to 20GHz - Picture 1 of 4
