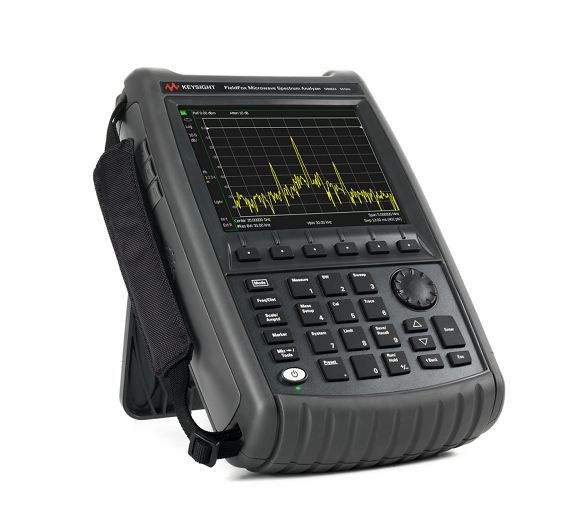

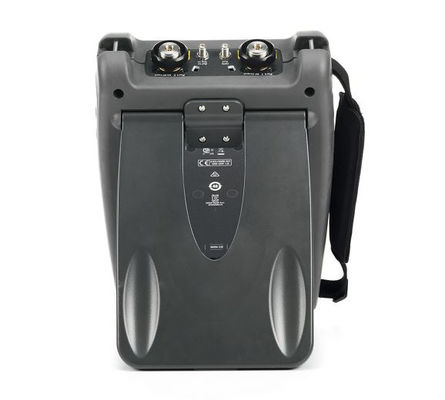

Portable Keysight Agilent N9962A FieldFox Handheld Microwave Analyzer 50 GHz

Portable Keysight Agilent N9962A FieldFox Handheld Microwave Analyzer 50 GHz

  • Portable Keysight Agilent N9962A FieldFox Handheld Microwave Analyzer 50 GHz
  • Portable Keysight Agilent N9962A FieldFox Handheld Microwave Analyzer 50 GHz
Portable Keysight Agilent N9962A FieldFox Handheld Microwave Analyzer 50 GHz
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight
Model Number: N9962A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Handheld Microwave Analyzer Frequency: 50 GHz
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Portable: Yes
High Light:

Portable Handheld Microwave analyzer

,

50 GHz Handheld Microwave analyzer

,

Keysight Agilent N9962A FieldFox

Portable Keysight (Agilent) N9962A FieldFox Handheld Microwave Analyzer, 50 GHz





Description of   Keysight (Agilent) N9962A




  • 50 GHz max frequency
  • Accurate spectrum analyzer measurements (± 0.5 dB) without preheating
  • Intuitive spectrogram display and recording make it easy to locate interference signals
  • Lightest all-in-one analyzer at only 7.1 lb. (3.2 kg)
  • The 10mhz gap-free real-time bandwidth captures intermittent signals
  • Combined with the USB power sensor, average power and pulse power can be easily measured, and combined with the time gating function, pulse parameters can be measured
  • A portable solution enables characterization of radar pulses
  • Perform air interface measurements for 5gTF and LTE
  • Capture I/Q data for RF signal monitoring and analysis
  • Provides geolocation and time stamp using GPS/GNSS

The N9962A is a portable microwave spectrum analyzer that uses battery power. Optional features include a full-band tracking generator and preamplifier, interference analyzer, time gating, VSWR, reflection, built-in power meter and GPS receiver.



Maximum Frequency 50 GHz
Minimum Frequency 9 kHz
SA Start Frequency 5 kHz
System Dynamic Range 110 dB
Cable and antenna analyzer No
Output Power up to 4 dBm
Appearance factor n/a
Number of Built-In Ports 2 ports
Instrument Type

Spectrum Analyzer

Spectrum Analyzer Yes - Standard
Measuring function Signal analysis Real-time spectrum analysis
Overall amplitude accuracy ±3dB
Types Handheld
System Features
  • Built-In DC Source
  • GPS Receiver - Internal Only
  • Remote Control Capability
Power Measurement Using USB Sensor
  • Frequency-Offset
  • Frequency-Offset
  • RF Pulse Test with Peak Sensor
Standard Attenuator Range 30 dB
Standard Attenuator Step 5 dB
DANL @1 GHz -159 dBm
Maximum Analysis Bandwidth 10 MHz
Phase Noise @1 GHz (1 MHz offset) -113 dBc/Hz
Phase Noise @1 GHz (10 kHz offset) -111 dBc/Hz
Phase Noise @1 GHz (30 kHz offset) -108 dBc/Hz
TOI @1 GHz (3rd Order Intercept) +13 dBM
Maximum Real-Time Bandwidth 10 MHz
Bandwidth Options 10 MHz (standard)





List of Options
030 Remote Control Capability
208 USB Power Sensor Measurements Versus Frequency
209 Extended Range Transmission Analysis (ERTA)
210 Vector Network Analyzer Transmission/Reflection
235 Pre-amplifier
236 Interference Analyzer and Spectrogram
238 Spectrum Analyzer Time Gating
302 USB power sensor support
307 GPS Receiver
309 DC Bias Variable Voltage Source
310 Built-in Power Meter
312 Channel Scanner
320 Reflection measurements (return loss, VSWR and scalar measurements)
330 Pulse Measurements
350 Real-time Spectrum Analyzer (RTSA)
351 I/Q Analyzer (IQA)
355 Analog Demodulation
356 Noise Figure measurements
370 Over the air LTE FDD measurements
377 Over the air 5G TF measurements
358 EMF measurements
352 Indoor and outdoor mapping
371 Over the air LTE TDD measurements
361 EMI measurements
353 IQ streaming
1A7 Calibration + Uncertainties + Guardbanding (Not Accredited)
A6J ANSI Z540-1-1994 Calibration
