Brand Name: | Keysight/Agilent |
Model Number: | E4446A |
MOQ: | 1 set |
Price: | Negotiation |
Payment Terms: | T/T |
The Agilent E4446A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 44 GHz. With optional external mixing, the frequency coverage extends to 110 GHz with the Agilent external mixer, and to 325 GHz with other vendors'' mixers. Agilent external mixer offerings.

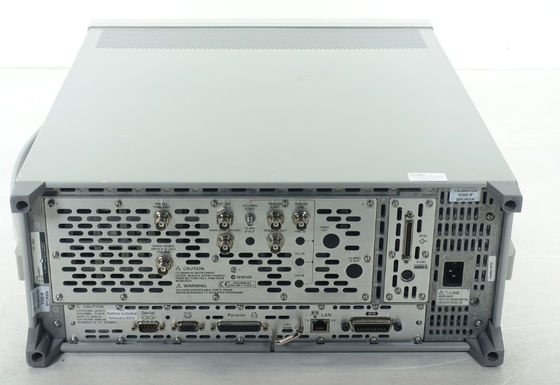

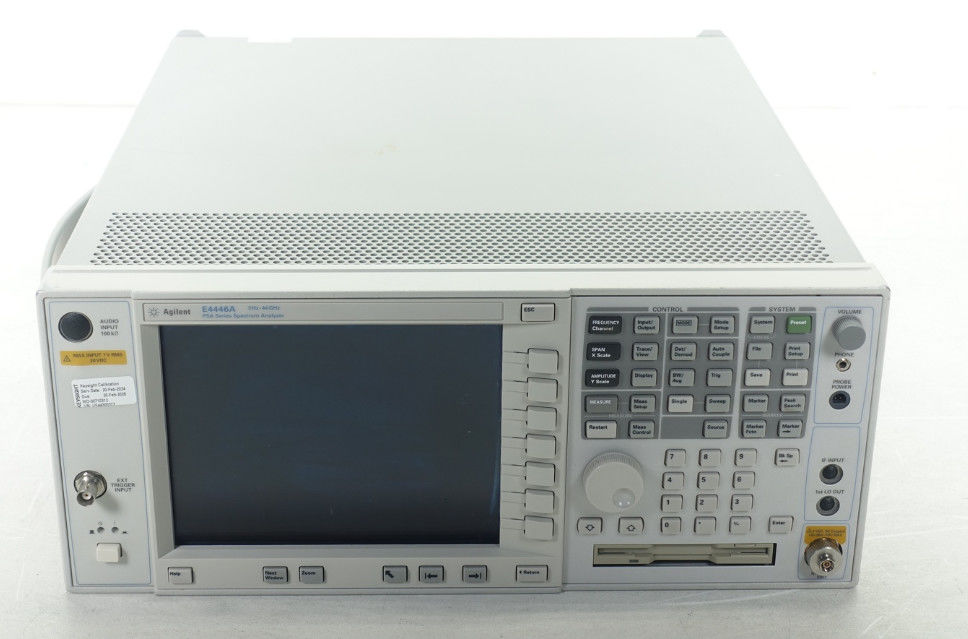

Agilent E4446A PSA Spectrum Analyzer
The Agilent E4446A delivers high-performance spectrum analysis up to 44GHz with a powerful one-click measurement, a common feature set, and a leading combination of flexibility, speed, accuracy, and dynamic range.
From millimeter wave and phase noise measurement to stray search and modulation analysis, the PSA family offers a unique and comprehensive range of high-performance solutions for R&D and manufacturing engineers in the cellular and emerging wireless communications, aerospace and defense sectors.
Migration from PSA to PXA:
The PXA N9030A, Agilent’s next-generation high-performance signal analyzer, combines the PSA’s technical excellence with state-of-the-art technologies, making it a logical form-fit-functional replacement for the PSA. The new PXA N9030A offers greater performance, wider analysis bandwidth, and more powerful connectivity.
015 | 6 GHz return-loss Measurement Accessory Kit |
045 | Millimeter Wave Accessory |
071 | Digital Demodulation H/W for S/N USUS4142/MY4140 Changed ot B7J on newer models |
0B0 | Do not include manuals |
0B1 | Add Manual Set |
0BV | Service Documentation, Component Level |
0BW | Service Documentation, Assembly Level |
107 | Audio input 100 kOhm |
110 | RF/uW internal preamplifier |
111 | USB device side I/O interface |
115 | 512 MB user memory |
117 | Secure memory erase |
119 | Noise Figure Hardware Kit . Standard on all models S/N > US4222/MY4100. |
122 | 80 MHz bandwidth digitizer |
123 | Switchable MW Preselector Bypass |
124 | Y-axis video output |
140 | 40 MHz bandwidth digitizer |
1A7 | PSA Series ISO 17025 compliant calibration with test data |
1CM | Rackmount Kit |
1CN | Handle kit |
1CP | Rack mount kit with handles |
1CR | Rack slide kit |
1DS | RF internal preamplifier |
202 | GSM w/edge measurement personality |
204 | 1xEV-DO Measurement Personality |
210 | HSDPA/HSUPA measurement personality |
211 | TD-SCDMA measurement personality |
212 | TD-SCDMA Modulation Analysis Measurement Personality |
213 | HSPA/8PSK for TD-SCDMA Modulation Analysis Measurement Personality |
214 | 1xEV-DV measurement personality |
215 | External Source Control Measurement Personality |
217 | WLAN Measurement Personality |
219 | Noise figure measurement personality |
226 | Phase noise measurement personality |
230 | Benchlink web remote control software |
233 | Built-in measuring receiver personality |
235 | Wide BW digitizer external cal wizard |
239 | EMC measurement personality |
23A | AM/FM/PM triggering for measuring receiver |
23B | CCITT filter for audio measurements |
241 | Flexible digital modulation analysis |
266 | Programming code compatibility suite measurement personality |
423 | Switchable Microwave Preselector Bypass. Available for all models with S/N |
426 | Gated Sweep Hardware. Standard on all models >S/N US/MY4336. |
515 | Attenuator to RF Cable |
516 | 40 MHz BW IF output - low band |
517 | Boris DIF --with opt 122 or 124 |
518 | Natasha DIF -- no opt 122 or 124 |
520 | Preselector bias cable - no opt HNQ |
627 | Required for all options except HT1 |
628 | Required for all options except 111 |
629 | Required for 110 or 123 or 110 with 123 |
630 | Required for option 110 without 123 |
631 | Required for 123 without 110 |
632 | Required for option 110 with 123 |
633 | Required for all options except HS1, HS7 and HT1 |
701 | Delete TV Sync. Trigger Capability, Fast Time Domain Sweeps, AM/FM Demodulator and Analog + Display |
903 | POWER CORD |
A6J | PSA Series ANSI Z540 compliant calibration with test data |
AB1 | Korea Quick Users Guide (Korean localization) |
AB2 | China Quick Users Guide (Chinese localization) |
ABA | U.S. Quick Users Guide (English localization) |
ABD | Germany Quick Users Guide (German localization) |
ABE | Spain Quick Users Guide (Spanish localization) |
ABF | France Quick Users Guide (French localization) |
ABJ | Japan Quick Users Guide (Japanese localization) |
ABZ | Italy Quick Users Guide (Italian localization) |
ANE | 64 MB Flash Ram Memory. Shipped Standard on all 46A/47A/48A Models. Shipped Standard on all models >US/MY4222 |
ATP04 | ATP LEADTIME ITEM FOR E4446A-H7L |
ATP05 | ATP LEADTIME ITEM FOR E4446A-HB2 |
ATP06 | ATP LEADTIME ITEM FOR E4446A-HGT |
ATP07 | ATP LEADTIME ITEM FOR E4446A-HN9 |
ATP08 | ATP LEADTIME ITEM FOR E4446A-JMP |
AYZ | External mixing |
B78 | CDMA2000 Measurement Personality |
B7J | Digital demodulation hardware |
BAB | 3.5 mm RF input connector |
BAC | CDMAOne Measurement Personality |
BAE | NADC,PDC Measurement Personality |
BAF | W-CDMA Measurement Personality |
H25 | 25 MHz IF Output |
H26 | High Band Preamplifier (Discontiued) Replaced by option 110. |
H47 | E4446A-H47 is a temporary option to pre-order the E4447A for export to China. |
H70 | 70 MHz IF Output |
H7L | Auxiliary Wideband Log Video Output |
HB2 | 21.4 MHz IF Output |
HB6 | Prevent Unauthorized F/W upgrade |
HBA | Rear Panel RF Input |
HN8 | Wideband Preselector Bypass (No Preselector) |
HN9 | 80 MHz wide baseband IF output at 321.4 MHz for frequencies less than 3.05 GHz |
HNQ | I/Q Front Panel Output connectors with hardware for use with 89600A. |
HS1 | Increase level of security write protects to user files |
HS7 | Security erase software |
HT1 | GPS Interface Card for Trimble GPS |
HX4 | 140 MHz IF output on rear panel |
HY7 | Improved Gain 70 MHz IF Output |
JMP | Rear panel jumper cable |
N6171A | MATLAB Software |
N6171A-M01 | MATLAB - Basic Package |
N6171A-M02 | MATLAB - Standard Package |
N6171A-M03 | MATLAB - Advanced Package |
N9051A | Pulse measurement software |
N9051A-2FP | Pulse measurement software, fixed, perpetual, license |
N9051A-3FP | Phase & Frequency Measurements |
N9051A-4FP | Extended Analysis & Statistics |
PS-S20-01 | Recommended Startup assistance |
R-50C-001 | Standard Calibration w/data. Replaced UK6 |
R-50C-002 | Traceable Calibration standards compliant initial receipt. (ANSI-Z540/17025) |
R-50C-011-3 | Agilent Calibration - 3 years |
R-50C-011-5 | Agilent Calibration - 5 years |
R-50C-016-3 | ISO 17025 Compliant Calibration - 3 years |
R-50C-016-5 | ISO 17025 Compliant Calibration - 5 years |
R-50C-021-3 | ANSI Z540-1-1994 Calibration - 3 years |
R-50C-021-5 | ANSI Z540-1-1994 Calibration - 5 years |
R-51B-001-3C | Return to Agilent Warranty - 3 years |
R-51B-001-5C | Return to Agilent Warranty - 5 years |
R-51B-001-C | Return to Agilent Warranty - 1 year |
R-52A-001-3 | 3 Year Calibration License (Commercial) |
R-52A-001-L | Lifetime Calibration License (Commercial) |
R-52A-002-3 | 3 Year Calibration License (Z540/17025) |
R-52A-002-L | Lifetime Calibration License (Z540/17025) |
RMKT | Agilent Refurbished Product (Do Not Use - Certiprime Option) |
UE2 | Firmware Kit. CD-ROM. |
UK6 | Commercial Cal Certificate with Data |
FAQ:
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.
2. What delivery method do you use? and delivery time?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question?
You can contact us online or leave us messages below.
