Rohde And Schwarz RT-ZS60 Active Single-Ended Probe 6 GHz Bandwidth USB Sensor

Brand Name: Rohde and Schwarz
Model Number: RT-ZS60
MOQ: 1 Piece
Price: Negotiation
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Detail Information
Place of Origin:
Germany
Certification:
ce
Product Name:
USB Sensor
Frequency Range:
10MHz-6Ghz
Power Measurements:
-50 DBm To +30 DBm
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
Form Factor:
Plug-In
Packaging Details:
Carton
Supply Ability:
In Stock
Highlight:

RT-ZS60 Active Single-Ended Probe

,

6 GHz Active Single-Ended Probe

,

RT-ZS60 USB Sensor

Product Description

Rohde and Schwarz RT-ZS60 - Active Single-ended Probe, 6 GHz Bandwidth



Description



Rohde and Schwarz RT-ZS60 - Active Single-ended Probe, 6 GHz Bandwidth

High signal fidelity with active probes

Single-ended active probes are used to accurately measure ground-referenced signals. They precisely measure both high-speed and low-frequency signals for which it is critical that the probe impedance place only a minimal load on the test point. Rohde & Schwarz offers a variety of models with a maximum bandwidth of up to 6 GHz. Rohde & Schwarz single-ended active probes feature a high input impedance of 1 MΩ, a low input capacitance down to 0.3 pF and noise down to 2 mV (RMS) referenced to the input.

Wide dynamic range with additional offset compensation

In addition to the wide dynamic range, Rohde & Schwarz single-ended active probes also offer an offset compensation. As a result, the DC component of the measured signal can be compensated so that the signal components of interest are displayed on the oscilloscope at maximum resolution. The maximum input voltage of 30 V ensures that the probe is not damaged by overloads. A low voltage, single-ended probe is typically used for measuring high-speed, ground-referenced signals up to 12 V.

Exceptionally low offset and gain errors, minimal temperature drift

Rohde & Schwarz single-ended active probes are characterized by impressively low offset and gain errors. The minimal gain drift coupled with the offset compensation permits precise measurements – even over extended periods of time and at varying temperatures. Frequent compensation during the measurement is no longer necessary, simplifying everyday measurement tasks.




Features:



6.0GHz Voltage Probe, Active, Single-ended, 1MOhm, 0.3pF, ProbeMeter, Microbutton, 1.2m Cable, including Accessories (Accessory)



  • Catalog number 1418.7307.02
  • Bandwidth: 6 GHz
  • Maximum voltage: ±8 V (±10 V offset compensation)
  • 10:1 attenuation factor
  • Input impedance: 1 MΩ || 0.3 pF

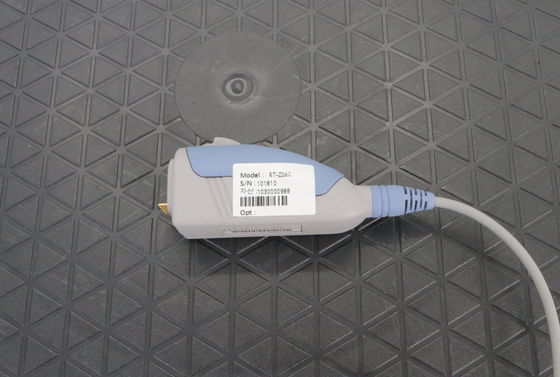

Rohde And Schwarz RT-ZS60 Active Single-Ended Probe 6 GHz Bandwidth USB Sensor 0









 Choosing the operating site



Only use the product indoors. The product casing is not waterproof. Water that enters can electrically connect the casing with live parts, which can lead to electric shock, serious personal injury or death if you touch the casing. If Rohde & Schwarz provides accessories designed for outdoor use of your product, e.g. a protective cover, you can use the product outdoors. Unless otherwise specified in the data sheet, you can operate the product up to an altitude of 2000 m above sea level. The product is suitable for pollution degree 2 environments where nonconductive contamination can occur. For more information on environmental conditions such as ambient temperature and humidity, see the data sheet.



Performing measurements Take the following measures for your safety:



● To ascertain voltage-free state, use an appropriate voltage tester. Any measurement setup including an oscilloscope is not suitable for this purpose.

● The maximum input voltage on channel inputs and the external trigger input must not exceed the value specified in the data sheet. ● Observe all voltage and current ratings of the instrument, the probes, and the accessories. Exceeding the allowed voltages can lead to an electric shock. Limits and ratings are marked on the products and listed in the data sheets.




Our service
One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.


FAQ

1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.

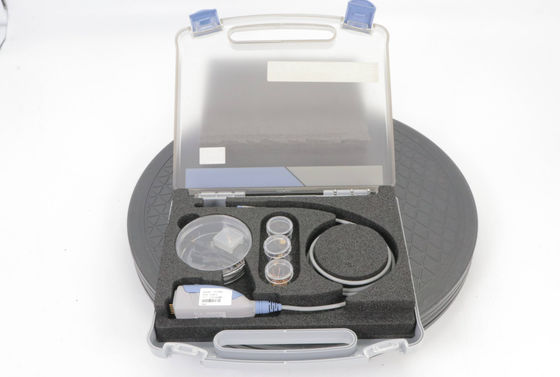

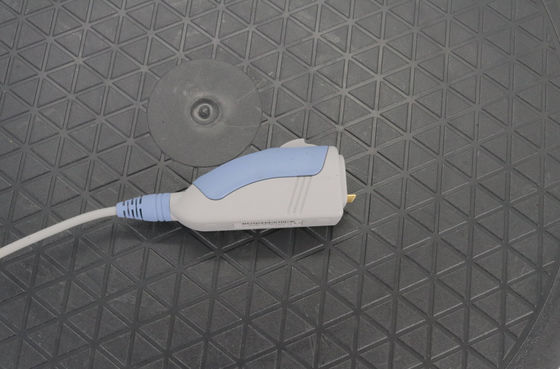

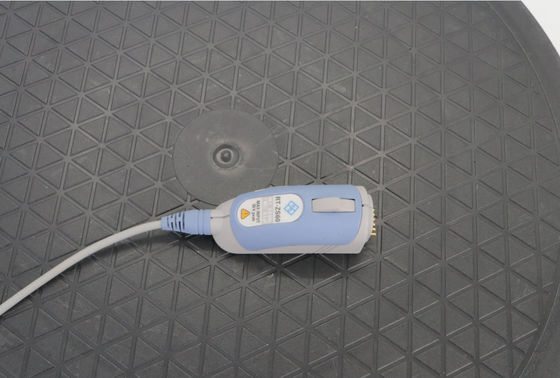

Rohde And Schwarz RT-ZS60 Active Single-Ended Probe 6 GHz Bandwidth USB Sensor 1Rohde And Schwarz RT-ZS60 Active Single-Ended Probe 6 GHz Bandwidth USB Sensor 2Rohde And Schwarz RT-ZS60 Active Single-Ended Probe 6 GHz Bandwidth USB Sensor 3Rohde And Schwarz RT-ZS60 Active Single-Ended Probe 6 GHz Bandwidth USB Sensor 4
