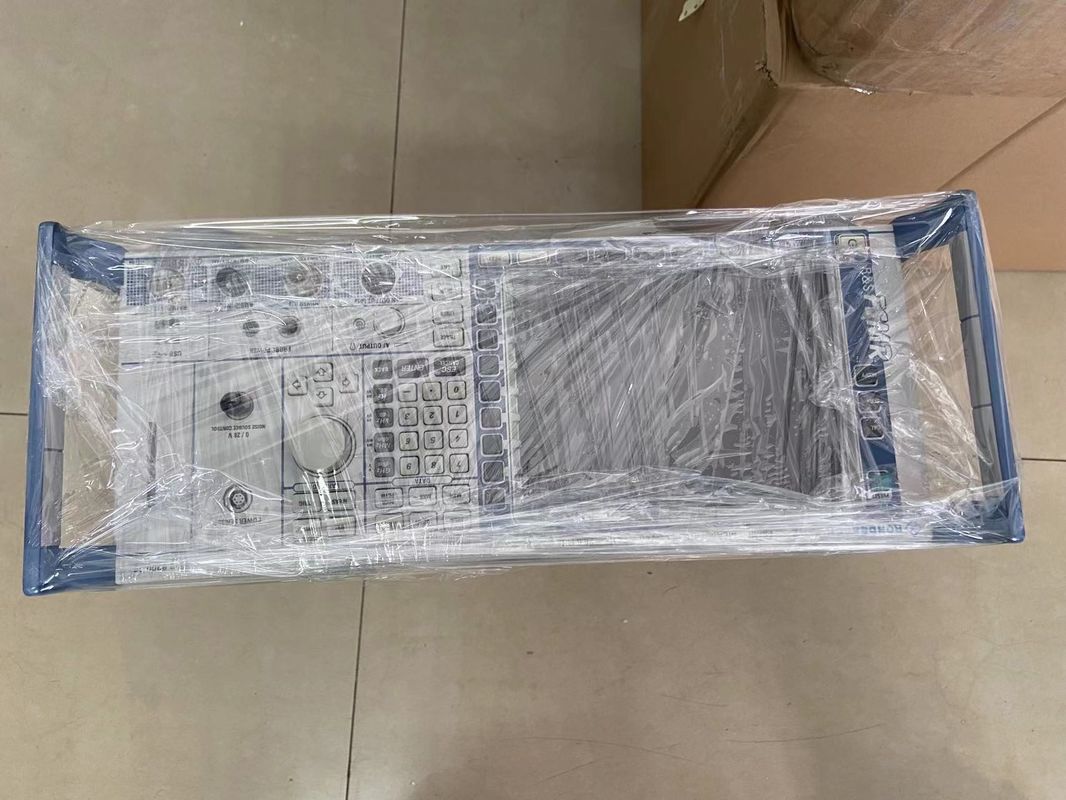

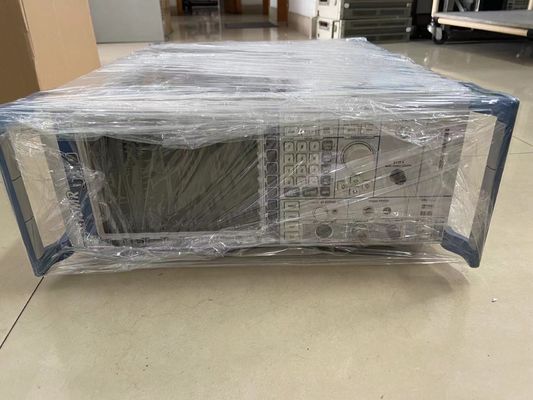

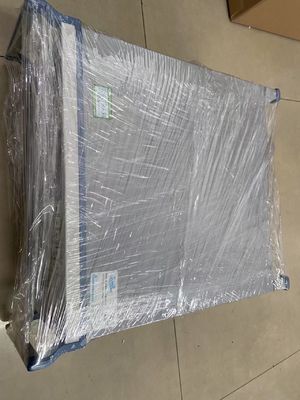

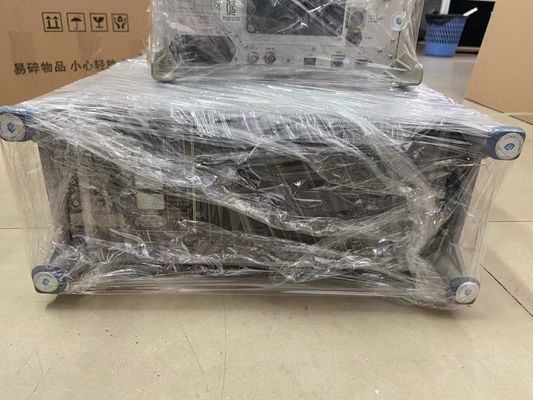

Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz

Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz

  • Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz
  • Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz
  • Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz
  • Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz
Rohde And Schwarz FSMR26 Measuring Receiver Analyzer 20Hz To 26.5GHz
Product Details:
Place of Origin: Czech Republic
Brand Name: Rohde and Schwarz
Model Number: FSMR26
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Carton
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Measuring Receiver Frequency: 20Hz To 26GHz
Form Factor: Benchtop Portable Average Noise Level: -155 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Rohde And Schwarz Measuring Receiver

,

FSMR26 Measuring Receiver

Rohde and Schwarz FSMR26 Analyzer MEASURING RECEIVER 20Hz to 26.5GHz All-in-one calibration of signal generators



Description of FSMR26 Analyzer MEASURING RECEIVER



The R&S FSMR26 Measuring Receiver (FSMR series) is a one box solution for calibrating RF level and analog modulation parameters of signal generators and attenuation. The R&S FSMR combines the functionalities of a level calibrator, modulation and audio analyzer, power meter and spectrum analyser, all in a single instrument.

Due to its high level linearity and frequency range of up to 26.5GHz, the R&S FSMR26 is ideal for measurement tasks in calibration and test and measurement labs. The R&S FSMR26 from Rohde & Schwarz performs all measurements that are necessary for the calibration of signal generators and fixed or variable attenuators.

As a level calibrator, the R&S FSMR achieves a linearity value of 0.015 dB + 0.005 dB/10 dB, which fully corresponds to that of the current industry standard. The R&S FSMR26 offers a wide measurement range from +30dBm to -130dBm. In addition, the measurement bandwidth can be set to broad limits between 100Hz and 10MHz. During level measurements, this prevents the frequency offset or residual FM of the signal generator to be calibrated from having any effect.

All modulation parameters and the DUT's modulation generator can be calibrated solely with the R&S FSMR. A modulation analyser and an audio analyser for the analogue modulation modes AM, FM and PM are already integrated into the instrument. In addition, the FSMR is equipped with a full-featured spectrum analyzer and a power meter to which the power sensors of the R&S NRP family can be connected.

The R&S FSMR also supports power meters from other manufacturers, which it controls via an IECIEEE bus connection. Investments that have already been made by calibration and development departments within the military, at mobile radio manufacturers or at metrology labs are protected since they can continue to use their existing instruments.

All functional components of the R&S FSMR26 such as level calibrator, modulation analyser, audio analyser, power meter as well as spectrum analyser, and even externally connected power meters, can be operated directly via its front panel. The R&S FSMR26 also has GPIB and LAN interfaces, thus allowing convenient integration and remote control in measuring systems.

Functions combined in one instrument:

  • High precision level calibrator
  • Modulation Analyzer for AM/FM/PM
  • Audio Analyzer with THD and SINAD
  • Support for NRP power sensors for absolute power measurements
  • High-performance spectrum analyzer

Functions and properties tailored to the needs of calibration labs:

  • Very high level stability over time
  • Easy to use, with complete operation control from the R&S FSMR front panel
  • Traceable calibration
  • Documented calibration procedure
  • Specifications equal to or exceeding the HP 8902 with option 050

Specfications of the Rohde & Schwarz FSMR Measuring Receiver include:

  • Frequency Range: 20 Hz - 26.5 GHz
  • Level
    • Linearity: 0.015 + 0.005dB / 10 dB
    • Level range: +10 dBm to – 130 dBm
  • Modulation Measurements:
    • Measurement Range:
      • Amplitude Modulation: 0 to 100% modulation depth
      • Frequency Modulation: Max 500 kHz deviation
      • Phase Modulation: Max 10 000 rad phase deviation
    • Modulation Frequency:
      • Amplitude Modulation: 50 Hz to 100 kHz
      • Frequency Modulation: 50 Hz to 200 kHz
      • Phase Modulation: 50 Hz to 100 kHz
    • Uncertainty:
      • Amplitude Modulation: 0.5 to 1.5%
      • Frequency Modulation: 1 to 3%
      • Phase Modulation: 1%
    • Distortion:
      • Amplitude Modulation: 0.1%
      • Frequency Modulation: 0.1%
      • Phase Modulation: 0.1%
  • Audio Filters
    • Lowpass 3 kHz, 15 kHz, 23 kHz, 100 kHz
    • Highpass 20 Hz, 50 Hz , 300 Hz
    • Deemphasis 25/50/75/750 µs
    • Weighting filters CCITT, CCIR unweighted
  • Audio Input
    • Input impedance 50 Ohm/1 MOhm
    • Level range up to 4 V
    • Frequency range 20 Hz to 1 MHz
    • Internal harmonic distortion 0.1%
  • Spectrum Analyzer
    • Spectrum Analyzer R&S FSU26

Features of the R&S FSMR26 Measuring Receiver include:

  • Wide level range +10 dBm to – 130 dBm
  • Modulation analysis: Modulation depth, frequency and phase deviation
  • Audio analysis with automatically tuned THD and SINAD
  • FFT on the audio signal and on the demodulated signal
  • Audio spectrum and spectrum display of the demodulated signal
  • Time domain display of audio signal and demodulated signal
  • Low/high pass audio filters and demphasis
  • Separate audio input for calibration of audio signals
  • Fast RF counter with 0.1 Hz resolution
  • Spectrum analyzer functions as for the high performance Spectrum Analyzer R&S FSU
  • High immunity against drifting or unstable signals
  • Fully programmable via GPIB/LAN

The Rohde & Schwarz FSMR series of Measuring Receivers supports the following technologies:

  • WCDMA / HSPA / HSPA+
  • GSM / EGPRS / EDGE Evolution
  • CDMA2000® 1xEV-DO
  • CDMA2000® 1xRTT
  • TD-SCDMA
  • GSM-R
  • TETRA
  • cdmaOne
  • DECT
  • Bluetooth
  • ZigBee
  • MBMS
  • FM
  • AM

Wealth of functions



Highly selective digital filters from 10 Hz to 100 kHz

PC-compatible screenshots on diskette, hard disk or USB stick

Fast FFT filters from 1 Hz to 30 kHz

Up to 80 measurements/s in manual mode Channel filters from 100 Hz to 5 MHz

Up to 70 measurements/s on GPIB interface RRC filters SCPI-compatible

GPIB command set Resolution bandwidth from 1 Hz to 50 MHz ¸

FSE/¸FSIQ-compatible GPIB command set

QP detector and EMI bandwidths 200 Hz, 9 kHz, 120 kHz 8566A/B/859x-compatible

GPIB command set 2.5 ms sweep time in frequency domain

Fast ACP measurement in time domain

1 µs sweep time in time domain

Statistical signal analysis with CCDF function

Number of measurement points/trace selectable between 155 and 10001

RMS detector of 100 dB dynamic range

Time-selective spectrum analysis with gating function

Transducer factors for correcting antenna or cable frequency responses

GPIB interface, IEEE 488.2 Limit lines with PASS/FAIL evaluation

RS-232-C serial interface, 9-pin D-Sub Peak list function for fast spurious measurement

VGA output, 15-pin D-Sub External reference from 1 MHz to 20 MHz in 1 Hz steps



List of Options
6-C3 Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
6-C5 Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data.
6-R3 Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
6-R5 Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by th 12
6DKD FSMR26 DKD(ISO17025) calibration incl. ISO 9000 calibration (order only with device)
B18 Removable hard disk (factory installed)
B19 Second removable hard disk for FSMR-B18
B2 YIG preselection for image suppression for f > 3.6 GHz for FSMR26 (only ex factory)
B223 YIG preselection with 20 dB preamplifier 3.6 - 26.5 GHz for FSMR26, FSU-B25 required
B23 Preamplfier 20 dB for FSMR26. 3.6 - 26.5 GHz FSU-B25 required
B73 Vector signal analysis 28 MHz demodulation bandwidth, broadband demodulation hardware included
C3 Three years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibrations
C5 Five years of depot calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibrations
DCV-2 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
FS-K15 VOR/ILS measurements for FSMR
FS-K30 Application firmware for noise figure and gain measurements for FSMR, FSP, FSQ, FSU
FS-K40 Application firmware for phase noise measurements for FSMR, FSP, FSQ, FSU
FS-K5 Application firmware GSM/EDGE tests for FSP, FSU, FSQ
FS-K7 FM demodulator, allows measurement of FM specific parameters (for FMU, FSP, FSU)
FS-K72 Application firmware 3GPP-FDD BTS transmitter test for FSMR, FSP, FSU, FSQ
FS-K73 Application firmware 3GPP-FDD UE transmitter test for FSMR, FSP, FSU, FSQ
FS-K73+ 3GPP HSPA+ UE transmitter test, application firmware (for FSMR, FSP, FSQ, FSU, FSUP,
FS-K74 3GPP HSDPA base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K74+ 3GPP HSPA plus, base station test. Application firmware (for FSP, FSQ, FSU, FSG;
FS-K76 3GPP TD-SCDMA base station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K77 3GPP TD-SCDMA mobile station test; application firmware for FSMR, FSP, FSQ, FSU
FS-K8 Application firmware for Bluetooth measurement on FSP, FSU and FSQ
FS-K82 CDMA2000/1xEV-DV base station test application firmware for FSMR, FSP, FSU, FSQ
FS-K83 CDMA2000/1xEV-DV mobile station application firmware for FSMR, FSP, FSQ, FSU
FS-K84 1xEV-DO base station test application firmware for FSMR, FSU, FSP, FSQ
FS-K85 1xEV-DO mobile station test application firmware for FSMR, FSP, FSQ, FSU
FS-K9 Measurements with NRP power sensors NRP-Z11/Z21/Z22/Z23/Z24/Z51/Z55/Z91 requires NRP-Z3 or NRP-Z4
FSMR26DKD FSMR26 DKD(ISO17025) calibration incl. ISO 9000 calibration (order only with device)
FSP-B28 Trigger port for FSP,FSQ,FSU; for indication of trigger conditions
FSQ-B512 CPU RAM upgrade to 512 MB for instruments with CPU board 1091.2520
FSU-B12 Output attenuator for tracking generator for FSU, FSQ
FSU-B24 Preamplifier 30dB, 100 kHz to 50GHz (for FSMR26/43/50, FSQ26/40, FSU26/43/46/50;
FSU-B25 Electronic attenuator 0 to 30 dB, Preamplifier 20 dB, 10MHz - 3.6 GHz for FSU, FSQ
FSU-B4 OCXO 10 MHz aging/year: 0.35*10E-7 for FSU, FSQ, FSMR
FSU-B5 Output for low phase noise 640MHz reference signal for FSU3, FSU8, FSQ3 und FSQ8
FSU-B9 Tracking generator for FSU and FSQ, 100 kHz - 3.6 GHz
FSU-U73 Vector signal analysis demodulation bandwidth 8 MHz (FSU, 28 MH broadband demodulation hardware included
R3 Three years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by the 12-month new product warranty
R5 Five years of depot repair coverage, including recalibration and test data if necessary to complete a repair – 1st year of repair coverage is provided by the 12-month new product warranty
ZZA-411 19" adapter, 4 HU, 1/1 for BW2000 cabinets

FAQ:
1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
100% T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below .
