Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor

Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor

  • Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor
  • Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor
  • Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor
  • Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor
Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor
Product Details:
Place of Origin: USA
Brand Name: Keysight (Agilent)
Model Number: U8485A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Product Name: USB Thermocouple Power Sensor Frequency Range: 10MHz To 33 GHz
Power Measurements: -33dBm To +20dBm Condition: Pre-Owned
Functions: Tested, In Full Working Conditions Form Factor: Plug-In

Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor

Description of U8485A Thermocouple Power Sensor



The U8480 series is Keysight’s first power sensor with the capability to measure down to DC (with option 200). This is especially useful for Signal Source/Network Analyzer calibration and power references as well as EMC applications.

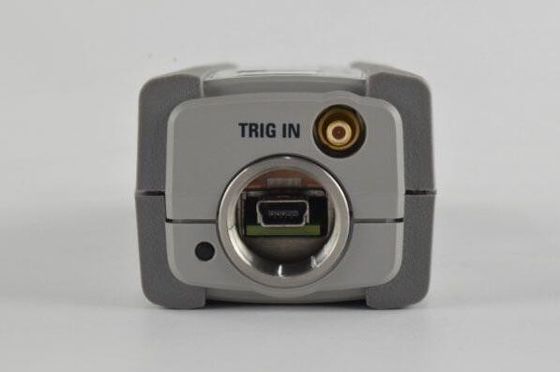

External trigger will enable accurate trigger of small signals close to the signal noise floor. With the built-in trigger in connection on the U8480-series power sensors; you can connect an external trigger signal from a signal source or the device under test directly to the USB sensor through a standard BNC to SMB cable.



The U8480 series is supported by the Keysight BenchVue software. BenchVue makes it easy to control your power meter to log data and visualize measurements in a wide array of display options without any programming. Simply connect the sensor to your PC installed BenchVue BV0007B Power Meter/Sensor Control and Analysis app to perform average power measurement and analysis.



Features

  • Frequency range of DC/10MHz to 33 GHz
  • Fastest measurement speed for thermocouple sensor, > 400 readings/s (free run/fast buffer mode)
  • Best-in-class power linearity of less than 0.8%
  • Wide dynamic range from -35 dBm to +20 dBm
  • Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) or National Physical Laboratory (NPL)
  • A BenchVue software license (BV0007B) is now included with your instrument. BenchVue makes it simple to connect, control instruments, and automate test sequences
List of Options



100



Standard option – 10 MHz to 33 GHz



200



DC coupled option – DC to 33 GHz



A6J



ANSI 540 compliant calibration and test data



Our service


One-stop service from manufacture to shipping.
1. Your inquiry related to our products or prices will be replied in 24hours.
2. Well-trained and experienced staffs to answer all your enquires influent English.
3. Distributor ship is offered for your unique desigh and some our current models.
4. Protection of your sales area, ideas of design and all your private information.


FAQ


1.Can you ship order to Canada or Australia ?
Yes,we can .We send orders worldwide .
2. What delivery method do you use ? and delivery time ?
We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.
3. What is your payment term?
T/T payment before shipment.
4. How can I ask any other question ?
You can contact us online or leave us messages below.

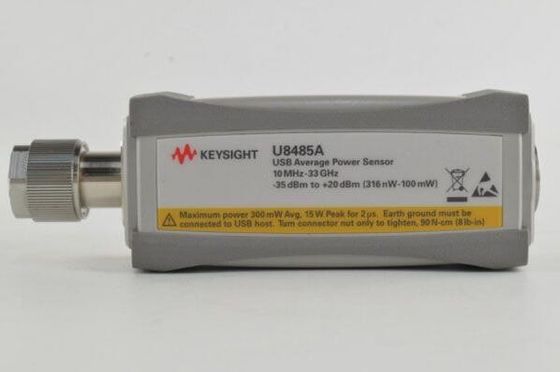

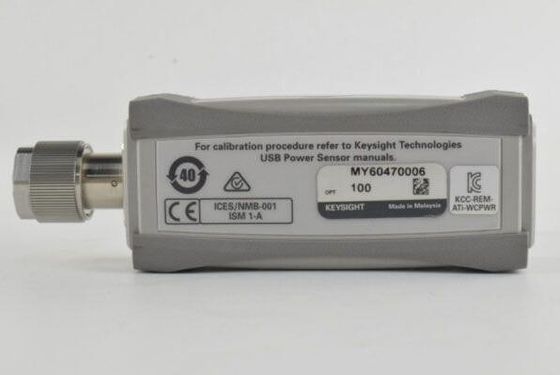

Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor 0Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor 1

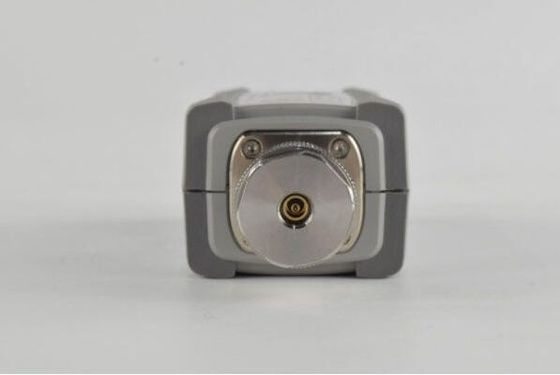

Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor 2Used Portable Multpurpose U8485A DC 10 MHz To 33 GHz USB Thermocouple Power Sensor 3
