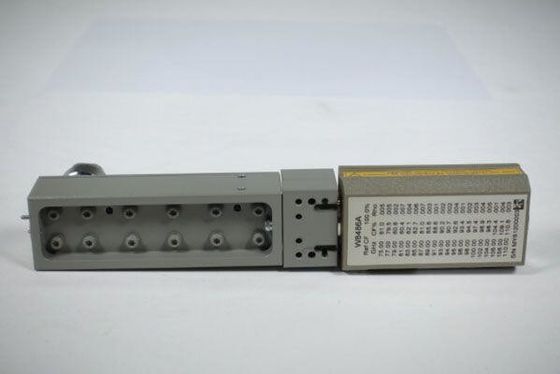

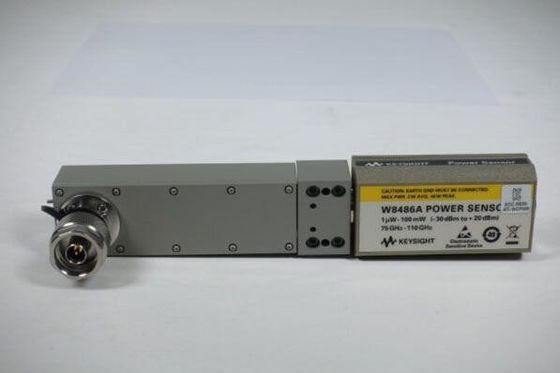

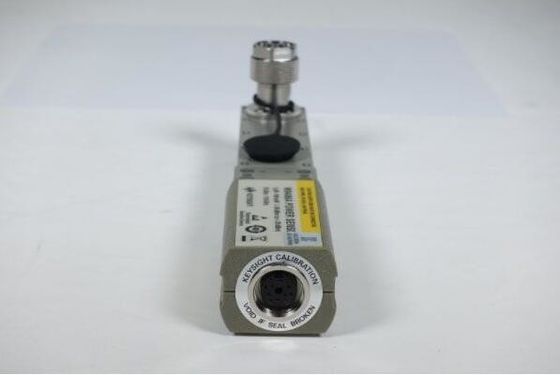

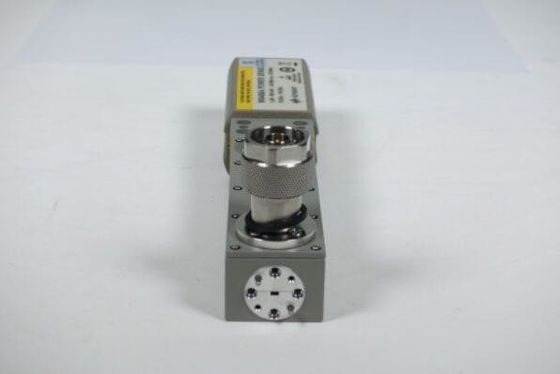

Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz

Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz

  • Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz
  • Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz
  • Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz
  • Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz
Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz
Product Details:
Place of Origin: USA
Brand Name: Keysight (Agilent)
Model Number: W8486A
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiation
Packaging Details: Carton
Delivery Time: 1~3 Working Days
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: In Stock
Contact Now
Detailed Product Description
Product Name: RF Power Sensor Frequency Range: 75 GHz - 110 GHz
Power Measurements: -30 To +20 DBm Power Meter: 43X
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
Form Factor: Plug-In Calibration Port: 50 MHz

Used Portable Agilent W8486A RF Waveguide Power Sensor 75 GHz - 110 GHz

Description of W8486A RF Power Sensor



The Agilent W8486A diode power sensor is designed for use with the EPM series, EPM-P series,

70100A, E1416A and the discontinued 43x power meters, and provides extraordinary accuracy and stability.





The W8486D power sensor gives you low SWR and is traceable to the U.S. National Institute of Standards and Technology (NIST). A 50 MHz calibration port is included with the power sensor for calibration with the power meter. This calibration eliminates the uncertainties due to temperature changes and the variance in making measurements with different meter/sensor combinations.





Features:

  • Excellent SWR for reducing mismatch uncertainty
  • 50 MHz calibration port
  • Accurate calibration and traceability to US National Institute of Standards and Technology (NIST) millimeter-wave sensor calibration
  • Compatible with EPM, EPM-P and P-series power meters, plus the E1416A VXI and discontinued 70100A and 43X power meter
  • Accurate average power measurements over -30 to +20 dBm
  • Frequency range 75 GHz to 110 GHz
  • Diode power sensing element
List of Options



033



Increase Freq. Range to 33 GHz



1BN



Military Standard 45662A Calibration Certification



A6J



Certificate of compliance calibration - ANSI Z540 with test data, printed



R-50C-011-3



Agilent Calibration - 3 years



R-50C-011-5



Agilent Calibration - 5 years



R-50C-021-3



ANSI Z540-1-1994 Calibration - 3 years



R-50C-021-5



ANSI Z540-1-1994 Calibration - 5 years



R-51B-001-3C



Return to Agilent Warranty - 3 years



R-51B-001-5C



Return to Agilent Warranty - 5 years



R-51B-001-C



Return to Agilent Warranty - 1 year
