Durable Portable RF Spectrum Analyzer 30 Hz to 13.2 GHz with -151 dBm Noise Level

Name: Durable Portable RF Spectrum Analyzer 30 Hz to 13.2 GHz with -151 dBm Noise Level
Brand: Shenzhen Meigaolan Electronic Instrument Co. Ltd
SKU: 8562EC
Availability: InStock

Brand Name:	Keysight/Agilent
Model Number:	8562EC
MOQ:	1 set
Price:	Negotiation
Payment Terms:	T/T

Detail Information

Product Description

Ratings & Reviews

Detail Information

Place of Origin:

Malaysia

Product Name:

Spectrum Analyzer

Frequency:

30 Hz To 13.2 GHz

Form Factor:

Plug-In ( /104 /944 /946 ) Portable Rackmount ( /C91 ) Benchtop ( /E4444A )

Average Noise Level:

-151 DBm

Condition:

Pre-Owned

Functions:

Tested, In Full Working Conditions

Supply Ability:

in stock

Highlight:

Durable RF Spectrum Analyser

Benchtop RF Spectrum Analyser

8562EC Agilent RF Spectrum Analyzer

Product Description

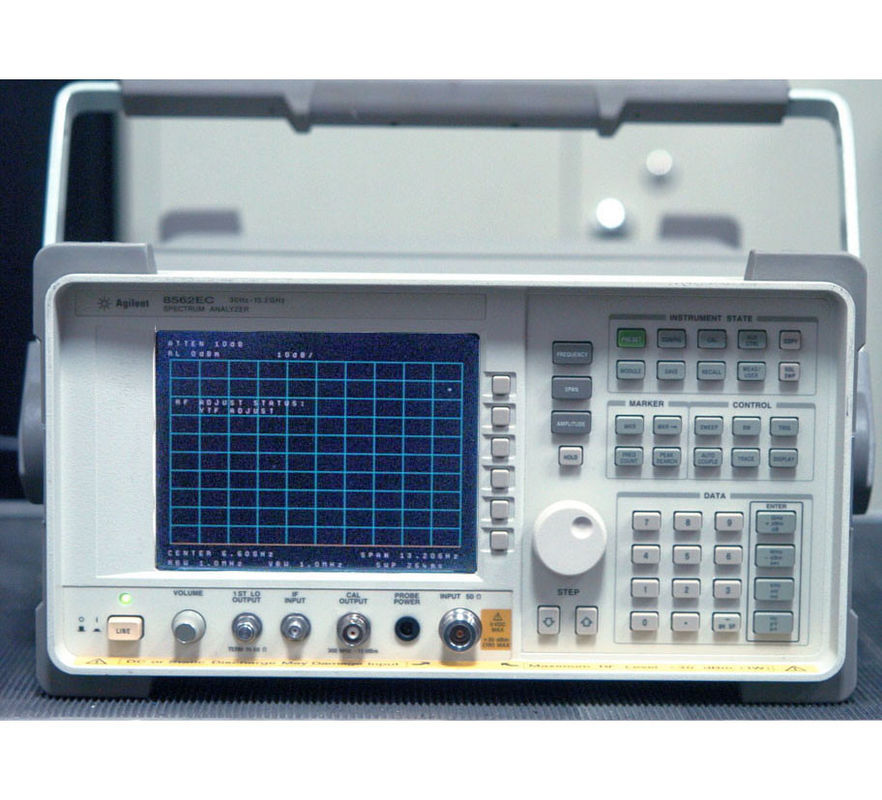

Durable Benchtop RF Spectrum Analyser Keysight Agilent 8562EC

Product Overview

Keysight Agilent 8562EC Portable Spectrum Analyzer with frequency range of 30 Hz to 13.2 GHz, featuring a color display and covering spur-search ranges specified by leading standards organizations in Europe and the United States for GSM. Fast DLP execution speed reduces test times in production environments.

Performance Specifications

±1.0 dB absolute amplitude accuracy
-151 dBm/Hz displayed average noise level (DANL)
<-113 dBc/Hz phase noise at 10 kHz offset

Key Features

Fast digital resolution bandwidths of 1 Hz to 3 MHz
Portable, MIL-PRF-28800, Class 3 rugged construction
Easy screen image or trace data transfer to PC with BenchLink software

Technical Specifications

Form Factor	Plug-In (/104 /944 /946), Portable, Rackmount (/C91), Benchtop (/E4444A)
Application Software	Phase Noise
Average Noise Level	-151 dBm
Frequency	30 Hz to 13.2 GHz

Available Options

Option Code	Description
FA 001	Second IF output rear panel connector (310.7MHz)
FA 005	Add alternate sweep output
FA 007	Digitized fast time domain sweeps (standard)
FA 008	Signal Identification
FA 042	Gray spectrum analyzer backpack
FA 044	Yellow spectrum analyzer backpack
FA 0B0	Do not include manuals
FA 0Q8	Factory Delivered Service Training
FA 103	Delete Precision Frequency Reference, and 1 Hz and 3 Hz RBWs
FA 104	Delete HP 85620A Mass Memory Module
FA 1BN	MLTR Standard 45662A Calibration Certification
FA 1BP	MLTR Standard 45662A Calibration with Test Data
82350B	PCI High-Performance GPIB Interface Card
82357B	USB/GPIB Interface High-Speed USB 2.0
8ZE	Factory Refurbished
908	Rack Flange Kit for Use without Handles
909	Front Handle & Rack Flange Kit
910	Additional operating and service manual
915	Additional Service Manual
916	Extra pocket-size Quick Reference Guide
944	Mass memory module manual - U.S. - English
946	Mass memory module manual - Japanese localization (includes U.S. - English)
AB2	China Quick Users Guide (Chinese localization)
ABD	Germany Quick Users Guide (German localization)
ABE	Spain Quick Users Guide (Spanish localization)
ABF	France Quick Users Guide (French localization)
ABJ	Japan Quick Users Guide (Japanese localization)
ABZ	Italy Quick Users Guide (Italian localization)
B70	BenchLink Spectrum Analyzer Software
C90	Factory installed rackmount kit with handles and flanges
C91	Factory installed rackmount kit without handles and flanges
E35	ACPR Test Set
E4444A	BenchLink Spectrum Analyzer Connectivity Software
E5810A	LAN/GPIB Gateway
H35	Firmware Upgrade for option K35
J67	Bundles options UK6,006 & 007
K35	System with CDMA Test Set Attached
R08	Signal identification retrofit kit
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6	Commercial calibration with test results data
UKS	Certificate of Calibration

Frequently Asked Questions

Can you ship order to Canada or Australia?

Yes, we can. We send orders worldwide.

What delivery method do you use? and delivery time?

We can ship by EMS, DHL, FedEx, UPS, TNT with tracking number. Usual delivery time is 4-7 workdays.

What is your payment term?

100% T/T payment before shipment.

How can I ask any other question?

You can contact us online or leave us messages below.
