Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical

Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical

  • Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical
  • Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical
Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight/Agilent
Model Number: 8563E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 9 KHz To 26.5 GHz
Form Factor: Portable Rackmount ( /908 ) Average Noise Level: -148 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

8563E RF Spectrum Analyzer


26.5GHz RF Spectrum Analyzer


Practical 8563E Spectrum Analyzer

Keysight Agilent 8563E Portable Spectrum Analyzer 9 kHz to 26.5 GHz

Description of Keysight Agilent 8563E

The Agilent 8563E portable microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.

The 8563E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions.


  • Continuous 30 Hz to 26.5 GHz sweep
  • Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
  • Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
  • Precision timebase and 1 Hz counter resolution
  • MIL-T-28800 rugged
  • Measurement personalities for digital radio and phase noise measurements
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Rackmount ( /908 )
Application Software
Phase Noise ( /85671A )
Average Noise Level
-148 dBm
30Hz - 26.5GHz ( /006 )
List of Options
001 Second IF output rear panel connector (310.7MHz)
005 Add alternate sweep output
006 Frequency coverage down to 30 Hz
007 Digitized fast time domain sweeps
008 Signal Identification
026 APC 3.5 mm input connector
042 Gray spectrum analyzer backpack
0B0 Do not include manuals
0Q8 Factory Delivered Service Training
103 Delete Precision Frequency Reference, and 1 Hz and 3 Hz RBWs
104 Delete HP 85620A Mass Memory Module
1BN Military Standard 45662A Calibration Certification
1BP Military Standard 45662A Calibration with Test Data
327 Delete Video output connector on rear panel
8ZE Factory Refurbished
908 Rack Flange Kit for Use without Handles
909 Front Handle & Rack Flange Kit
910 Additional operating and service manual
915 Additional Service Manual
916 Extra pocket-size Quick Reference Guide
B70 BenchLink Spectrum Analyzer
C03 Rear RF input - deletes 2nd IF rear panel.
C2X 2x Calibration Service Agreement
C3X 3x Calibration Service Agreement
E35 ACPR Test Set
H35 Firmware Upgrade for option K35
J67 Bundles options UK6,006 & 007
K15 Reduced Height Rackmount kit 7"
K35 System with CDMA Test Set Attached
LCD LCD Display Upgrade
LCD Optional LCD Display (12 month warranty)
LCD-5 Optional LCD Display (5 Year warranty)
R07 Digital fast time domain sweep
R08 Signal identification retrofit kit
R24 Extended 24 Month Warranty
R36 Extended 36 Month Warranty
RC24 Extended 24 Month Warranty & 2x Calibration Service Agreement
RC36 Extended 36 Month Warranty & 3x Calibration Service Agreement
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data
W30 3 Years Return for Repair Service

1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.

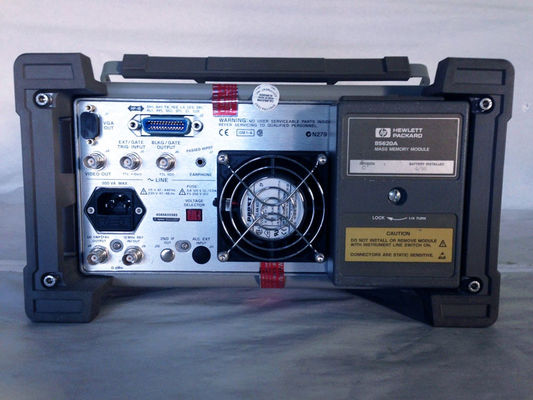

Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical 0Keysight Agilent 8563E RF Spectrum Analyzer 9kHz-26.5GHz Practical 1
