Product Details:
Place of Origin: Malaysia
Brand Name: Keysight/Agilent
Model Number: 8563EC
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 9 KHz To 26.5 GHz
Form Factor: Plug-In ( /104 /944 /946 ) Portable Rackmount ( /C91 ) Benchtop ( /E4444A ) Average Noise Level: -149 DBm - +11 DBm
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

Plug In 8563EC Spectrum Analyzer

,

Rackmount 8563EC Spectrum Analyzer

,

Portable Microwave Spectrum Analyzer

Keysight Agilent 8563EC Portable Spectrum Analyzer, 9 kHz to 26.5 GHz

Description of Keysight Agilent 8563EC

8563EC was discontinued on 1 September 2009. For more information, refer to 856xE/EC Migration Assistance

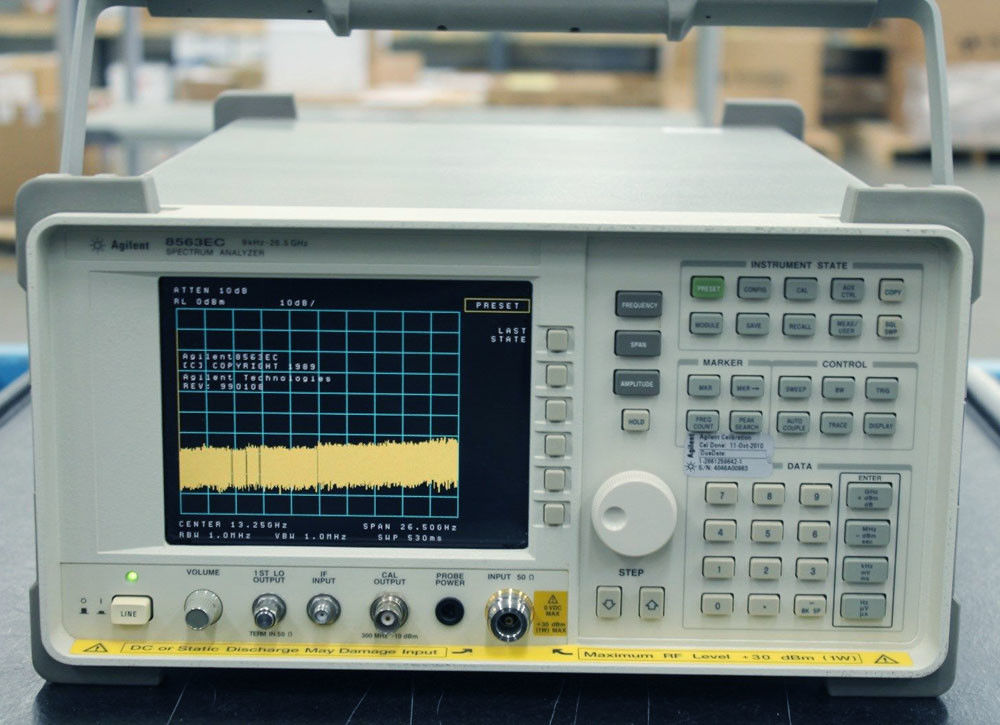

The Agilent 8563EC portable, color display microwave spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. This analyzer has a standard frequency range of 9 kHz to 26.5 GHz (preselected from 2.75 GHz to 26.5 GHz), with optional low-end frequency coverage to 30 Hz.



Performance

  • +/-1.0 dB absolute amplitude accuracy
  • -149 dBm/Hz displayed average noise level (DANL)
  • <-113 dBc/Hz phase noise at 10 kHz offset

Features

  • Fast digital resolution bandwidths of 1 Hz to 3 MHz
  • Portable, MIL-PRF-28800, Class 3 rugged
  • Easily transfer screen image or trace data to PC with BenchLink software E4444A BenchLink software
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Plug-In ( /104 /944 /946 )
Portable
Rackmount ( /C91 )
Benchtop ( /E4444A )
Application Software
Phase Noise
Average Noise Level
-149 dBm - +11 dBm
Frequency
30 Hz ( /006 )
9 KHz to 26.5 GHz
List of Options
001 Second IF output rear panel connector (310.7MHz)
005 Add alternate sweep output
006 30Hz to Frequency Coverage
007 Digitized fast time domain sweeps (standard)
008 Signal Identification
026 APC 3.5 mm Input Connector
042 Gray spectrum analyzer backpack
044 Yellow spectrum analyzer backpack
0B0 Do not include manuals
0Q8 Factory Delivered Service Training
103 Delete Precision Frequency Reference, and 1 Hz and 3 Hz RBWs
104 Delete HP 85620A Mass Memory Module
1BN Military Standard 45662A Calibration Certification
1BP Military Standard 45662A Calibration with Test Data
552 Mass memory module
553
555
82350B PCI High-Performance GPIB Interface Card
82357B USB/GPIB Interface High-Speed USB 2.0
8ZE Factory Refurbished
908 Rack Flange Kit for Use without Handles
909 Front Handle & Rack Flange Kit
910 Additional operating and service manual
915 Additional Service Manual
916 Extra pocket-size Quick Reference Guide
944 Mass memory module manual - U.S. - English
946 Mass memory module manual - Japanese localization (includes U.S. - English)
AB2 China Quick Users Guide (Chinese localization)
ABD Germany Quick Users Guide (German localization)
ABE Spain Quick Users Guide (Spanish localization)
ABF France Quick Users Guide (French localization)
ABJ Japan Quick Users Guide (Japanese localization)
ABZ Italy Quick Users Guide (Italian localization)
B70 BenchLink Spectrum Analyzer Software
C2X 2x Calibration Service Agreement
C3X 3x Calibration Service Agreement
C90 Factory installed rackmount kit with handles and flanges
C91 Factory installed rackmount kit without handles and flanges
E01 Mixer SYS consisting of 11970A with option 009, 11970Q, K281C
E35 ACPR Test Set
E4444A BenchLink Spectrum Analyzer Connectivity Software
E5810A LAN/GPIB Gateway
H18 10.7 MHz IF output, rear panel, SMA connector
H35 Firmware Upgrade for option K35
H74
J67 Bundles options UK6,006 & 007
K35 System with CDMA Test Set Attaced
R08 Signal identification retrofit kit
R24 Extended 24 Month Warranty
R36 Extended 36 Month Warranty
RC24 Extended 24 Month Warranty & 2x Calibration Service Agreement
RC36 Extended 36 Month Warranty & 3x Calibration Service Agreement
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data

FAQ:
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.

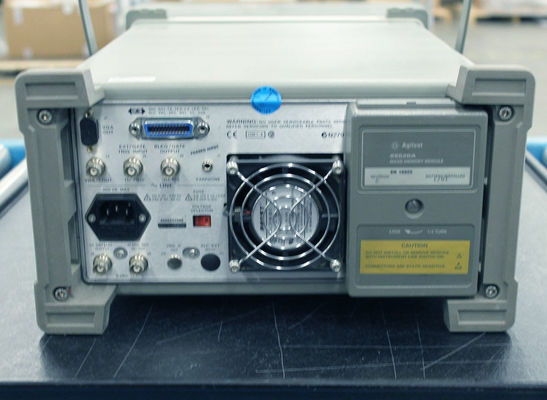

Plug In Rackmount 8563EC Spectrum Analyzer Portable Microwave Spectrum Analyzer 0Plug In Rackmount 8563EC Spectrum Analyzer Portable Microwave Spectrum Analyzer 1
