9kHz-40GHz RF Spectrum Analyzer Durable Keysight Agilent 8564E

9kHz-40GHz RF Spectrum Analyzer Durable Keysight Agilent 8564E

  • 9kHz-40GHz RF Spectrum Analyzer Durable Keysight Agilent 8564E
  • 9kHz-40GHz RF Spectrum Analyzer Durable Keysight Agilent 8564E
  • 9kHz-40GHz RF Spectrum Analyzer Durable Keysight Agilent 8564E
9kHz-40GHz RF Spectrum Analyzer Durable Keysight Agilent 8564E
Product Details:
Place of Origin: Malaysia
Brand Name: Keysight/Agilent
Model Number: 8564E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Payment Terms: T/T
Supply Ability: in stock
Contact Now
Detailed Product Description
Product Name: Spectrum Analyzer Frequency: 9 KHz To 40 GHz
Form Factor: Benchtop Feature: Portable
Condition: Pre-Owned Functions: Tested, In Full Working Conditions
High Light:

40GHz RF Spectrum Analyzer

,

Durable RF Spectrum Analyzer

,

Agilent 8564E Spectrum Analyzer

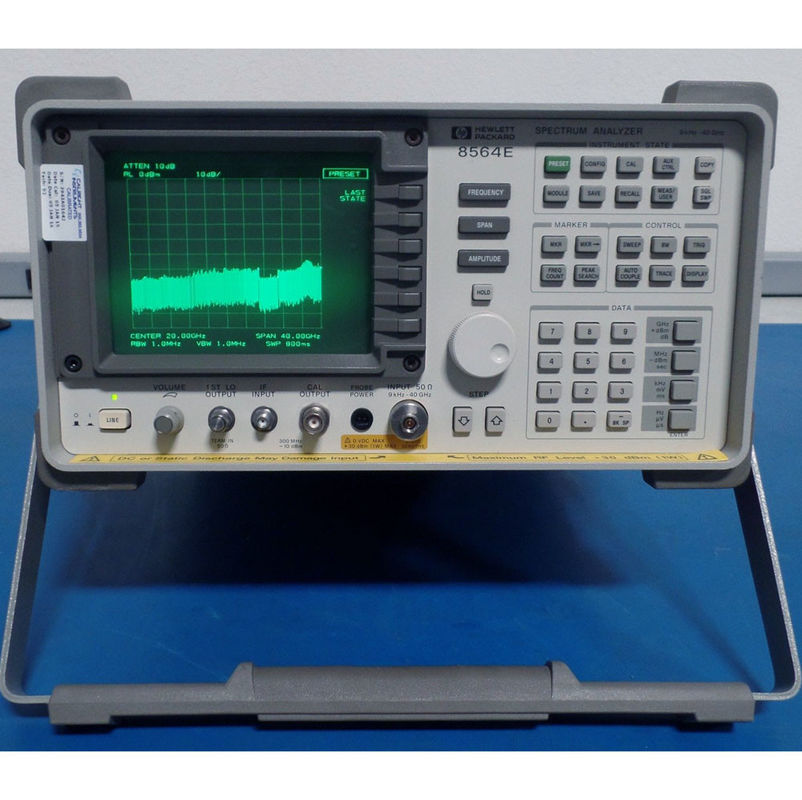

Keysight Agilent 8564E Portable Spectrum Analyzer 9 kHz to 40 GHz

Description of Keysight Agilent 8564E

The Agilent 8564E portable millimeter spectrum analyzer offers the measurement capability and performance previously found in larger, more expensive benchtop analyzers. You can measure signals from 30 Hz to 40 GHz (preselected above 2.75 GHz) with a single coaxial connection.

The 8564E combines outstanding phase noise, sensitivity, 1 Hz resolution bandwidths, synthesized tuning and wide dynamic range in a MIL-rugged package built to withstand harsh environmental conditions. It offers a complete solution for adjacent-channel power (ACP) testing of burst carrier signals using digital modulation, and the ability to measure occupied bandwidth percentage.

Features:
  • Continuous 30 Hz to 40 GHz sweep
  • Fast digital resolution bandwidths of 1, 3, 10, 30 and 100 Hz
  • Adjacent channel power, channel power, carrier power, occupied bandwidth percentage and time-gated measurements standard
  • Precision timebase and 1 Hz counter resolution
  • MIL-T-28800 rugged
  • Measurement personalities for digital radio and phase noise measurements
Specifications & Attributes (Spectrum Analyzers)
Form Factor
Benchtop
Portable
Application Software
Noise Figure
Phase Noise
Frequency
40 GHz - 40 GHz
List of Options
001 Second IF output rear panel connector (310.7MHz)
005 Add alternate sweep output
006 Frequency coverage down to 30 Hz
007 Digitized fast time domain sweeps
008 Signal Identification
042 Gray spectrum analyzer backpack
0B0 Do not include manuals
0Q8 Factory Delivered Service Training
103 Delete Precision Frequency Reference, and 1 Hz and 3 Hz RBWs
104 Delete HP 85620A Mass Memory Module
1BN Military Standard 45662A Calibration Certification
1BP Military Standard 45662A Calibration with Test Data
8ZE Factory Refurbished
908 Rack Flange Kit for Use without Handles
909 Rackmount kit without handles and flanges
B70 BenchLink Spectrum Analyzer
C2X 2x Calibration Service Agreement
C3X 3x Calibration Service Agreement
C91
E35 ACPR Test Set
H18
H35 Firmware Upgrade for option K35
J67 Bundles options UK6,006 & 007
K35 System with CDMA Test Set Attaced
R07 Digital fast time domain sweep
R08 Signal identification retrofit kit
R24 Extended 24 Month Warranty
R36 Extended 36 Month Warranty
RC24 Extended 24 Month Warranty & 2x Calibration Service Agreement
RC36 Extended 36 Month Warranty & 3x Calibration Service Agreement
RMKT Agilent Refurbished Product (Do Not Use - Certiprime Option)
UK6 Commercial calibration with test results data

FAQ:
1.Can you ship order to Canada or Australia?
Yes,we can .We send orders worldwide.

2. What delivery method do you use? and delivery time?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question?

You can contact us online or leave us messages below.
