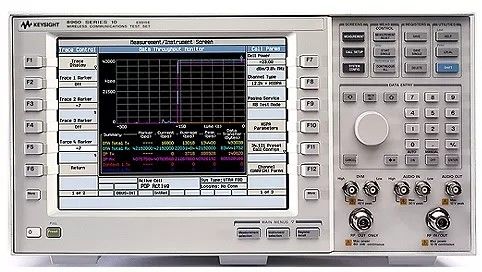

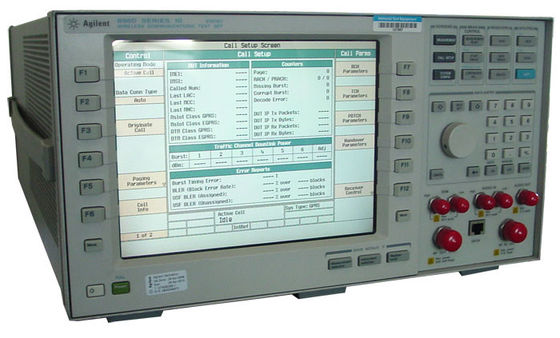

Remote Keysight RF Communications Test Set Agilent 8960 Series 10 E5515C

Name: Remote Keysight RF Communications Test Set Agilent 8960 Series 10 E5515C
Brand: Keysight (Agilent)
SKU: E5515C
Rating: 4.9 (147 reviews)

Product Details:

Place of Origin:	Malaysia
Brand Name:	Keysight (Agilent)
Model Number:	E5515C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	in stock

Contact Now

Detailed Product Description

Product Name:

Agilent E5515C 10 Wireless Communications Test Set

Support:

W-CDMA HSPA TD-SCDMA TD-HSDPA Cdma2000 1xEV-DO IS-95 GSM GPRS EGPRS TIA/EIA-136 AMPS

GPIB Interface:

Remotely Controllable

Frequency:

292 To 2700 MHz

High Light:

Remote RF Communications Test Set

E5515C RF Communications Test Set

Agilent 8960 Series 10 E5515C

Keysight Agilent E5515C 8960 Series 10 Wireless Communications Test Set

Description of Keysight Agilent E5515C

The Agilent E5515C hardware platform for the 8960 Series 10 wireless communication test set is the only test set with both RF and high data rate test performance for real-world mobile device test – across the lifecycle. The E5515C test set paired with technology-specific test applications and lab applications provide a tailored solution for your testing needs. Automated software packages are available to control the E5515C to automate RF test (using Wireless Test Managers) and functional test (using Interactive Functional Test software). The use of a common platform across the lifecycle enhances communication between engineering groups and speeds time-to-market while reducing asset management workloads across the business.

The proven 8960 test applications, developed for high-volume, automated mobile phone manufacturing test, offer speed, accuracy, repeatability, and ease of programming, all on the format-flexible E5515C architecture. For the mobile manufacturer, this translates into lower test costs and higher production output to help meet customer demand for phones now and into the future.

Agilent’s E5515C one-box test set offers network simulation and software verification tools designed specifically for the needs of wireless developers doing software design verification and integration. These test solutions offer realistic network simulation and give you Internet connectivity with real data traffic flows. Additional capability is provided with extensive real-time protocol logging and analysis tools.

Accelerate wireless device hardware and application design with 8960 solutions.

A virtual network in a box -- Bench top RF parametric measurements and network emulation with full connectivity to the internet for cdma2000®, W-CDMA/HSPA, 1xEV-DO, and GSM/GPRS/EGPRS wireless devices.
A-GPS, battery drain, data throughput test, fading and more: Application Testing with the 8960
Design validation, stress test and realistic ''user experience'' test with the Interactive Functional Test (IFT) software
Automated RF parametric testing to meet 3GPP and 3GPP2 minimum performance standards with the Wireless Test Managers (WTM) software
RF Conformance test with the GS-8800 RF Design Verification Systems
Conformance and Interoperability verification test with Anite/Agilent RF Protocol and Network Emulation Systems

View feature comparison documents for 8960 applications

Download a copy of the 8960 Configuration Guide from the library for detailed information on how to order an 8960 test set to meet your wireless technology testing needs.

Agilent’s GS-8800 Series RF Design Verification and Conformance Test systems are built around the E5515C test set. The GS-8800 is a series of scalable test systems covering cellular device design verification, conformance, and manufacturing test needs. Leveraging the measurement speed, accuracy and repeatability strengths of the E5515C, the GS-8800 systems are reliable, high performance test systems ideal for wireless test laboratories, handset manufacturers, reference design and chipset vendors, and Network Equipment Manufacturers (NEMs) performing full wireless RF conformance test. The software includes pre-defined tests that conform to individual technology standards, which can be easily configured or modified when used in the design verification environment.

cdma2000 is a registered certification mark of the Telecommunications Industry Association. Used under license.

Features

Supports W-CDMA, HSPA, TD-SCDMA, TD-HSDPA, cdma2000, 1xEV-DO, IS-95, GSM, GPRS, EGPRS, TIA/EIA-136, and AMPS mobile phone testing
Software upgradeable
GPIB & LAN interfaces
Remotely controllable through GPIB interface

Specifications

292 to 2700 MHz frequency range
-127 to -10 dBm output
VSWR <1.14:1 400 to 1000 MHz
< +/-1.1dB Level Accuracy

List of Options

001	Factory upgrade to latest HW, 1 year warranty and TA of choice
002	2nd RF source
003	Flexible CDMA base station emulator
004	Digital bus
0B0	Do not include manuals
185	Add Fast Switch and Improve Speed
285	Add Fast Switch and Improve speed
370	E6571A wireless test manager run-time license
371	E6571C wireless test manager run-time license
500	RTI Upgrade
501	Add Fast Tune Capable Step Attenuator
502	Add option 002, replaced by Opt. 622
503	Add Option 003
504	Add Option 004 Digital Bus (Enables fading in cdma2000, 1xEV-DO, and W-CDMA LAs. Requires E5515C-003.
505	ADC Upgrade. Add Functionality Capabilities to early versions
507	DSP Upgrade
508	Protocol Upgrade 3
509	Extended Frequency Capability
513	Add Enhance CDMA Capability
515	5.8 Rear Panel Upgrade
587	Microprocessor Upgrade for early units
589	High Data Rate/ High Performance H/W
607	DSP Upgrade 3
612	Add Option 002 Second RF Source(Required for all GSM, GPRS, and EGPRS E5515C-002 applications.)
613	LSS Digital Upgrade 3
622	Add option 002 and Fast Edge Capability
665	EGPRS HW UPGRADE KIT E5515C (AGI)
687	Add Host Processor Upgrade for E1987A Compatability
765	Add Capabilty for WCDMA for early versions
963	old HW versions to HW 5.8
ABA	U.S. Quick Users Guide (English localization)
ATP02	ATP lead-time item for E5515C NPI applications
AUE	Upgrade service, 2 yr. ext
AUS	Agilent Upgrade service,2yr
AX3	Front handle kit
AX4	Rack flange kit
AX5	Flange and handle kit
B8A	Operation verification at installation
CU508	Protocol
CU515	Rear Panel
CU607	DSP
CU613	Digital LSS
CU687	Host
DEF	Upgrade service deferral
E16	225MHz universal counter - 10 digits
E1960A	GSM Mobile Test Application
E1961A	AMPS/136 mobile test application
E1962B	CDMA2000/IS-95/AMPS mobile test application
E1962B-401	CDMA2000 Rel A new control channels
E1962B-402	Advanced AMPS measurements
E1962B-403	CDMA2000 authentication
E1962B-405	CDMA2000 Digital bus (fading)
E1962B-406	CDMA2000 Multi-unit sync
E1962B-407	CDMA2000 Protocol logging
E1962B-409	CDMA2000 SMS
E1962B-410	CDMA2000 1x Advanced
E1963A	W-CDMA mobile test application
E1963A-401	W-CDMA End-to-End Video
E1963A-402	W-CDMA Video Loopback
E1963A-403	HSDPA test modes
E1963A-405	HSDPA 14.4Mbps Test Mode
E1963A-408	W-CDMA Enhanced Audio
E1963A-409	W-CDMA Adv. SMS
E1963A-413	HSUPA test modes
E1963A-423	HSPA+ Test Mode
E1964A	GPRS Mobile Test Application
E1966A	1xEV-DO terminal test application
E1966A-102	1xEV-DO Rel A and B
E1966A-103	1xEV-DO Multicarrier
E1966A-104	Rel B Optional DRC
E1966A-405	1xEV-DO Digital bus (fading)
E1966A-406	1xEV-DO Multi-unit sync
E1966A-407	1xEV-DO Protocol logging
E1968A	GSM/GPRS mobile test application
E1968A-101	GSM functionality
E1968A-102	GPRS functionality
E1968A-103	EGPRS functionality
E1968A-104	Evolved EDGE functionality
E1968A-201	GSM and GPRS functionality
E1968A-202	GSM,GPRS and EGPRS functionality
E1968A-406	VAMOS
E1968A-408	GSM/GPRS Enhanced Audio
E1968A-409	GSM/GPRS Adv. SMS
E1968A-410	EGPRS phase and amplitude vs time
E1968A-411	IQ capture
E1968A-417	8PSK Distortion calibration
E1968A-419	Mobile Calculated BER
E1968A-430	Class 34
E1968A-431	Class 45
E1969A	TD-SCDMA_GSM Fast switch test application
E1969A-101	TD-SCDMA Non Signaling test mode
E1969A-201	TD-SCDMA Signaling mode
E1969A-301	TD-SCDMA FDT
E1969A-403	TD-HSDPA
E1976A	1xEV-DO Rel 0 FTM test application
E1976A-102	1xEV-DO Rel A and B FTM
E1985A	GSM, AMPS, IS-136 dual band, GPRS, W-CDMA Mobile Test Application
E1985B	GSM, GPRS, EGPRS, IS-136 (800 MHz and 1900 MHz bands), AMPS, and W-CDMA Mobile Test Application
E1985C	GSM, GPRS, EGPRS, cdma2000, IS-95, and AMPS Mobile Test Application
E1985D	Combines E1985B, C and E Mobile Test Applications
E1985E	cdma2000, IS-95, 1xEV-DO, and AMPS Mobile Test Application
E1987A	Fast switching test application
E1990A	CDMA 2000
E1991A	8960 test application suite: E1960A (GSM), E1961A (AMPS/136), E1962B (cdma2000), E1963A (W-CDMA), E1964A (GPRS), and E1985A (fast switching)
E1991B	Mobile test application suiteE1968A (GSM, GPRS, EGPRS), E1963A (W-CDMA), E1962B (cdma2000®, IS-95, AMPS), E1966A (1xEV-DO), and E1987A
E1992A	GSM/GPRS
E1993A	8960 UMTS test application suite
E1996A	CDMA2000/1xEV-DO TA suite
E1999A	E5515 application features
E1999A-201	Fast device tune measurement. Enables fast device tune measurement in E1962B, E1963A, E1966A, and E1987A TAs. (Requires E1962B, E1963A, or E1966A TA
E1999A-202	FDT Enhanced
E1999A-206	Single channel GPS source
E1999A-301	PESQ Measurement
E1999A-501	2-box Voice Handover
E6569C	Wireless Test Manager Suite
E6701D	GSM/GPRS Lab App rev.D
E6701E	GSM/GPRS Lab App rev.E
E6701F	GSM/GPRS Lab App rev.F
E6701G	GSM/GPRS Lab Application
E6701H	GSM/GPRS Lab application
E6701I	GSM/GPRS LA REV I
E6701T	GSM / GPRS Lab Application
E6702B	Special cdma2000 lab application
E6702D	cdma2000 Lab application
E6702T	Special cdma2000 lab application
E6703C	WCDMA LA rev C
E6703D	WCDMA LA rev D
E6703E	WCDMA LA rev E
E6703G	W-CDMA/HSPA Lab application
E6703T	Special High Data Rate W-CDMA/HSDPA Lab Application
E6704A	EGPRS lab application
E6705A	GSM/(E)GPRS Encryption
E6706A	1xEV-DO lab application
E6706B	1xEV-DO lab application Rev. B
E6706D	1xEV-DO Lab application
E6706T	Special high data rate 1xEV-DO lab application
E6715A	W-CDMA/HSPA Encryption
E6716D	cdma2000/1xEV-DO LA suite
E6716T	Special cdma2000/1xEV-DO lab application suite
E6717C	Includes E6701F, E6704A , E6703E, E6785E
E6717E	UMTS Lab application suite
E6717T	Special high data rate UMTS lab application suite
E6719G	Lab application suite
E6719T	Special high data rate lab application suite
E6720A	Lab Application Annual Contract for the 8960
E6720A-001	Annual Contract for GSM/GPRS Lab Application for the 8960
E6720A-17	UMTS Lab Application Annual Contract
E6785E	Special high data rate fast switching lab application
E6785G	Fast Switching Lab application
E6785T	Special high data rate fast switching lab application
H03	E-GPRS capable hardware
H07	Special option to get HSDPA HW capability on new E5515C (HW 5.1)
H08	Add special high data rate/high performance HW to E5515C
H09	Special Extended Frequency Range Hardware
H13	Special Application Revision Required
H16	gpsOne calibration
N5970A	UMTS Interactive Functional Test Software
R-51B-001-3C	1 year Return-to-Agilent warranty extended to 3 years
R2C	Revision to Current - CPL exclude
R45	Hardware revision 4.5
R48	Hardware revision 4.8
R50	Hardware revision 5.0
R51	Hardware revision 5.1
R55	Hardware revision 5.5
R58	Hardware revision 5.8
R70	Hardware Revision 7.0
RMKT	Agilent Refurbished Product (Do Not Use - Certiprime Option)
SS1	Tripp-Lite surge suppresser 120V
SS2	Tripp-Lite surge suppresser 220/240V
UK6	Commercial calibration certificate with test data
W30	3 Years Return for Repair Service
