Ophir Nova II Monochrome LCD Laser Power & Energy Meter

Ophir Nova II Monochrome LCD Laser Power & Energy Meter

Product Overview

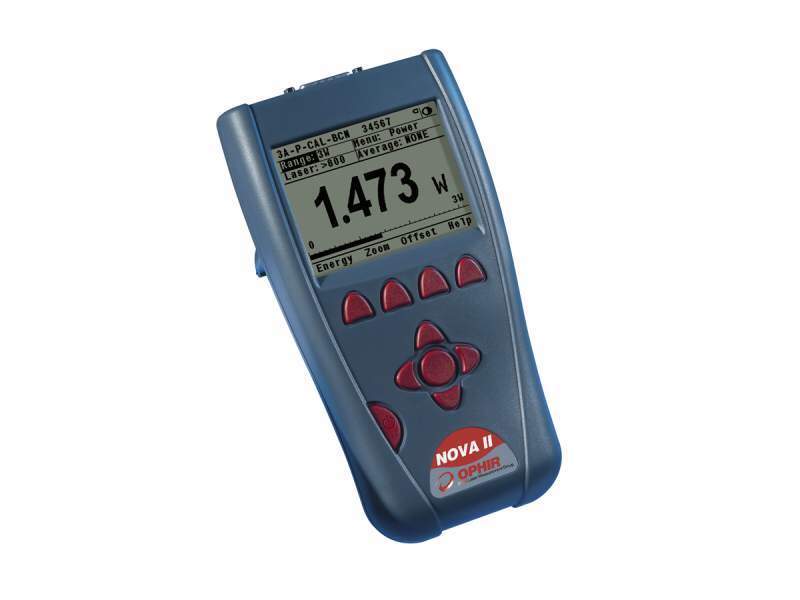

The Nova II is a very versatile and sophisticated handheld laser power/energy meter. Just plug in one of the many Ophir sensors and you have a whole measurement laboratory at your fingertips. The Nova II has many on-board features such as laser tuning, data logging, graphing, normalize, power or energy density units, attenuation scaling, max and min limits. The Nova II can also display the power or energy with a high resolution simulated analog needle display.
The Nova II can be operated either by battery or from an AC source with the charger plugged in at all times. Its backlight allows illumination of the power meter in low light conditions. The built-in USB and RS232 interfaces and StarLab

Just plug in one of the many Ophir sensors and you have a whole measurement laboratory at your fingertips. and StarCom PC software allow on-line processing of data or processing previously stored data; results are displayed graphically on a PC. To support PC interfacing, LabVIEW drivers and COM Object Interface are provided.

Key Features

• Compatible with all standard Ophir thermal, BeamTrack, pyroelectric and photodiode sensors
• Large high definition LCD display
• Choice of digital or analog needle display
• 2 position kickstand
• Backlighting and rechargeable battery
• Select between English and Japanese interfaces
• Analog output
• Log every point at up to 4000Hz with pyro sensors
• Non-volatile data storage up to 59,400 points
• Laser tuning screen and power and energy log
• USB and RS232 interfaces with StarLab and StarCom PC applications, LabVIEW driver and COM Object Interface
• Soft keys and menu driven functions with on line help
• Many software features such as density, min/max, scaling etc.

Specifications

Power Meter :High legibility 320 x 240 pixel graphics LCD with switchable electroluminescent backlight. Large 18mm digits. High resolution analog
needle also can be chosen.
Features:  Many screen features including power with bar graph, energy, average, exposure, frequency, graphs, scaling, special units, and more.
Complete on line context sensitive help screens.
Outputs : USB, RS232 and 1, 2, 5 and 10 volt full scale analog output.
Screen Refresh: 15 times/sec
Case : Molded high impact plastic with two level kickstand.
Size: Folds to a compact 208mm Lx 110mm Wx 43mm H
Weight: 0.550 kg
Battery: Rechargeable NiMH batteries with typically 18 hours between charges. The charger can be ordered from your local distributor. The
charger also functions as an AC adapter.
Data Handling: Data can be viewed on board or transmitted to PC:
On Board: Non-volatile storage of up to 54000 data points in up to 10 files.
Max onboard data logging rate 4000 (a) points/s and Max data logging rate to the PC 2000 (a) points/s.
Sensor Features : Works with Thermopile, BeamTrack, Pyroelectric (PE-C series) and Photodiode sensors (b).
Program Features:  Preferred startup configuration can be set by user. User can recalibrate power, energy, response time and zero offset.
Compliance: CE, UKCA, China RoHS
