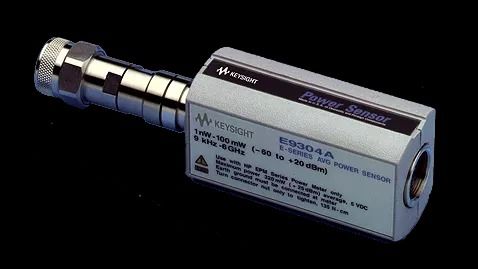

Used Agilent  Keysight (Agilent) E9304A E-Series Average Power Sensor, 9 KHz to 6 GHz, -60 dBm to +20 dBm

Description of Keysight Agilent E9304A E-Series Average Power Sensor

The E9304A wide dynamic range, 9 kHz to 6 GHz, Average Power Sensor is designed for use with the EPM and EPM-P series power meters for measurements on all types of signals, from complex digital modulation formats, such as W-CDMA, CDMA (IS-95), TDMA and OFDM, to multi-tone and CW signals. Also, for comprehensive error correction, the sensor''s calibration factors, linearity and temperature compensation data are stored in EEPROM.

Features of Keysight Agilent E9304A E-Series Average Power Sensor

• Refer to the E9301A for standard power sensor features
• Low frequency coverage (9 kHz to 6 GHz) for EMC/EMI test applications such as the radiated immunity test (IEC61000-4-3)
• High sensitivity (-60 to +20 dBm) and fast measurement speed to reduce the time taken to calibrate radiated field uniformity and EMC/EMI test receivers
• Measure transmitter power and receiver sensitivity at Very Low Frequency (VLF) to microwave frequencies
• Special option available to 18 GHz
• Compatible with the EPM, EPM-P and P-series power meters

Specifications & Attributes (Power Sensor) of Keysight Agilent E9304A E-Series Average Power Sensor

List of Options of Keysight Agilent E9304A E-Series Average Power Sensor
