CMW500

The all-in-one test platform

The R&S®CMW500 wideband radio communication tester is the universal test platform for RF integration and protocol development.

The R&S®CMW500 includes a fully integrated end-toend (E2E) data solution that permits comprehensive IP throughput and quality measurements.

The R&S®CMW500 can be used in all phases – from product development to production to service.

It is the solution with the widest range of supported technologies.

CMW270

The expert for all non-cellular technologies

The R&S®CMW270 wireless connectivity tester is a cost-effective alternative for development, production and service.

The non-cellular specialist offers features comparable to those of the R&S®CMW500.

It supports Bluetooth®, WLAN and broadcast technologies.

CMW290

The compact RF tester for basic functional tests

The R&S®CMW290 functional radio communication tester is the cost-effective compact version of the R&S®CMW500.

The tester is the right instrument for users who need to measure fundamental RF characteristics or verify the functionality of wireless devices.

The R&S®CMW290 provides service companies with a high-quality, customized, automated test environment for functional input and output tests.

Powerful network emulation allows IoT/M2M system integrators to functionally test module integration and custom IP applications.

CMX500

The 5G NR signaling tester

The R&R®CMX500 radio communication tester is the test platform for signaling tests in all 5G frequency bands: sub6 GHz (FR1) and mmWave (FR2).

In non-standalone (NSA) mode, the R&S®CMW500 supports legacy technologies in mixed operation with LTE.

CMP200

The mmWave (FR2) production tester

The R&S®CMP200 radio communication tester consists of a vector signal analyzer and a generator for RF frequencies from 4 GHz to 20 GHz.

Together with the R&S®CMPHEAD30 remote radio head up/downconverter for the higher frequency ranges (mmWave), it forms a compact non-signaling test platform for production testing of 5G FR2 products.

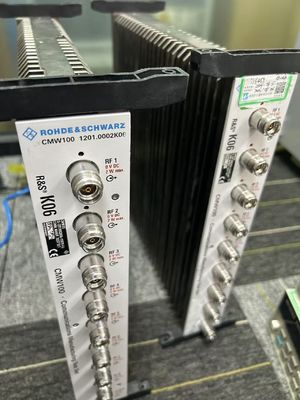

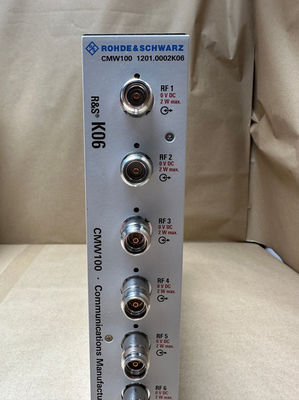

CMW100

The sub6 GHz (FR1) RF tester for production

The R&S®CMW100 communications manufacturing test set is based on the R&S®CMW platform.

The flexible RF interface permits simultaneous testing of up to eight RF ports.

The R&S®CMW100 remote control and measurement concepts are compatible with the R&S®CMW500.

Both testers use the same methods for optimizing test time and capacity utilization.

The R&S®CMW100 can be used to cost-effectively calibrate and verify wireless devices in non-signaling mode (analyzer/generator).
