RF Communications Test Set
Created with Pixso. Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control

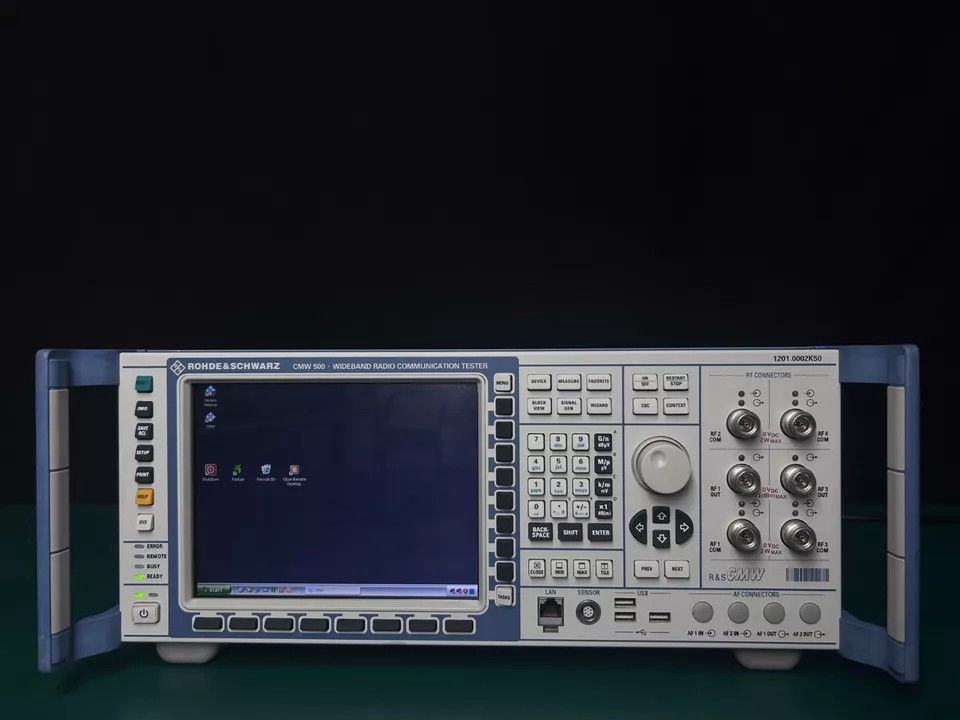

Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control

Brand Name: R&S
Model Number: CMW500
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Germany
Product Name:
Wideband Radio Communication Tester
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
SCPI Remote Control:
LAN/GPIB
Signaling:
Functional Sample Testing
Supply Ability:
in stock
Highlight:

Durable Wideband Radio Communication Tester

,

Rohde & Schwarz CMW500

,

SCPI Remote Control Radio Communication Tester

Product Description

R&S Rohde And Schwarz CMW500 Wideband Radio Communication Tester

  • Brief Description of R&S Rohde And Schwarz CMW500

  • Future-ready test platform designed to handle all major technologies

  • In the fast-paced world of wireless communications, existing technologies are continuously being optimized and new standards are adopted. A tester designed for the future must therefore be able to handle tomorrow’s requirements today. Owing to its large transmit and receive bandwidths, a frequency range up to 6 GHz, exceptional measurement accuracy and support of a variety of applications, the R&S®CMW500 is clearly a safe investment.

  • The multitechnology platform supports GSM with EDGE Evolution, WCDMA up to HSPA+, CDMA2000® 1), TD-SCDMA, LTE TDD/FDD and several noncellular standards such as WLAN. Therefore, it is the ideal equipment for mobile phone testing. In the development and production of mobile phones in line with the TD-SCDMA (time division synchronous code division multiple access) standard, the R&S®CMW500 wideband radio communication tester offers comprehensive test and measurement capabilities.

  •

    Designed for high first pass yield
    The R&S®CMW500 has been specially designed for production applications: Top priority was placed on accuracy, repeatability and linearity. These parameters have a direct impact on production yield: The better the instrument’s performance in terms of these parameters, the lower the number of DUTs that are found to be faulty even though they comply with specifications.



    Significant reduction in test time owing to R&S®Multi-Evaluation measurement
    The R&S®CMW500 can perform various measurements (for example, spectrum emission mask, code domain power, error vector magnitude and more) in parallel on the same signal sample. This yields a drastic reduction in measurement time as compared to the conventional sequential approach.


    Shortest possible alignment times owing to R&S®Smart Alignment
    In the R&S®CMW500, predefined frequency/power sequences can be stored in list format exactly as done in the mobile phone’s chipset. After being started in sync, the mobile phone and the tester follow the sequence without requiring any further interaction. The calibration time during production can be reduced down to 10 % of the original value


    Reliable receiver test in nonsignaling and signaling mode
    Featuring single-ended BER and loop-based BER analysis, the R&S®CMW500 offers two alternatives for testing receiver quality in the non-signaling mode. Alternatively, the R&S®CMW500 offers a TD-SCDMA base station emulator to verify network entry and functional performance in signaling mode. BLER (block error rate) and BER (bit error rate) tests after connection can be used to verify the receiver performance in signaling mode.


    Dual-channel mode – two in one
    The R&S®CMW500 can be operated in either the singlechannel or the dual-channel mode. In the dual-channel mode, two mobile phones can be tested simultaneously yet fully independently of one another, even while applying different standards.


    TX measurements
    The implementation of the transmitter measurements in the R&S®CMW500 is based on the 3GPP TS 25.102 and 3GPP TS 34.122 test specifications. The following transmitter measurements are supported: ❙ Power measurements
    ❙ Spectrum measurements
    ❙ Modulation accuracy measurements
    The measurements can be performed in nonsignaling mode with any desired TD-SCDMA uplink signal. Plus, the “combined signal path” scenario allows RF measurements with signaling provided by the TD-SCDMA base station emulator to analyze the RF performance of the TD-SCDMA mobile phone in real operation.
  •

    Optimized handling for production test systems
    The R&S®CMW500 unites three basic functions in one box: RF generator, RF analyzer and signaling (network emulation). As a result, it can be flexibly used in all stages of production – from calibration and verification to functional testing. The extreme scalability, test speed and measurement accuracy translate into minimum test costs. The compact tester approach with SCPI remote control concept minimizes the effort involved in planning and upkeeping production test systems.
  •
    Key facts of CMW500 Wideband Radio Communication Tester
  • Multi-RAT signaling: LTE, WCDMA, GSM, WLAN, Bluetooth
  • LTE-Advanced: 8DL CC up to 4x4/8x2 MIMO fading, 2 UL CA
  • WLAN 11 a / b / g / n / ac / ax SISO and MIMO signaling test
  • Internal server for application testing
List of Options
0-C3 3 years of calibration coverage based on the R&S recommended calibration interval - includes test data.
0-C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
0-R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
0-R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
ACA1 DAkkS (formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/280/500 with one TRX (order only with device)
ACA2 DAkkS (formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500 with two TRX (order only with device)
ACA4 DAkkS (formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500 with four TRX (order only with device)
B100A CMW H100A Baseband Measurement Unit
B100AX2 Extra Baseband Measurement Unit, Retrofittable In R&S Service, Cmw Module H100a
B100D Extra Baseband Measurement Unit, with 4GByte digitizer memory, retrofittable in R&S service, R&S®CMW module H100D (hardware option)
B110A CMW H110A ARB+Realtime Baseband Generator Module
B110D Baseband Generator, with 4GByte ARB memory, retrofittable in R&S Service, R&S®CMW module H110D (hardware option)
B200A CMW H200A Signaling Unit Universal(SUU)
B210A G SM G PR S ED G E R elease 6 , sign alin g/n etw o rk em u latio n , b asic.
B220A CDMA2000® 1xRTT signaling module for SUU, retrofittable in R&S Service,
B230A CMW H230A 1xEV-DO Signalling Extension Module for H200A
B270A CMW H270A WiMAX Signaling Extension Module for H200A
B300A CMW H300A Signaling Unit Wideband (SUW)
B300Ax2 B300A CMW H300A Signaling Unit Wideband (SUW) (QTY 2)
B300B Signaling Unit Wideband (SUW), for WCDMA / LTE, R&S®CMW module H300B, retrofittable in Rohde & Schwarz service (hardware option)
B300Bx2 Signaling Unit Wideband (SUW), for WCDMA / LTE, R&S®CMW module H300B, retrofittable in Rohde & Schwarz service (hardware option) (qty 2)
B400B Audio Analyzer/Generator, For New Units And Units Delivered After September 2011, Retrofittable In R&S Service, Cmw Module H400b (Hardware Option)
B405A Speech Codec, Retrofittable In R&S Service, Cmw Module H405a (Hardware Option)
B450A Data application unit
B450B Data Application Unit, Retrofittable In R&S Service, R&S?Cmw Module H450b (Hardware Option)
B450D Data Application Unit, retrofittable in R&S service, R&S®CMW module H450D (hardware option)
B450H Data Application Unit H450H
B500I Signaling Unit Advanced (SUA), H500I (HW opt.)
B510A CMW H510A, four digital IQ interfaces (inputs/outputs/monitor)
B510F Four digital IQ interfaces, in/out/monitor, connectors 1 to 4, retrofittable in R&S service, R&S®CMW module H510F (hardware option)
B520A Digital I/Q 5 to 8 H520A
B520F Four digital IQ interfaces, in/out/monitor, connectors 5 to 8, retrofittable in R&S service, R&S®CMW module H520F (hardware option)
B555M Extension set for MultiCMW synchronisation board, required to synchronize 4 instruments, R&S®CMW module H555M (hardware option)
B570A CMW H570A RF converter module (TRX)
B570B CMW H570B RF converter module (TRX)
B570BX2 Extra Rf Converter (Trx), Retrofittable In R&S Service With Ucs, Cmw Module H570b
B570Bx4 CMW H570B RF converter module (TRX) (qty 4)
B570H Extra RF Converter (TRX), BW 160 MHz, H570H (HW opt.)
B571B RF Up-Converter (TX), retrofittable in R&S Service with UCS, CMW module H571B
B590A CMW H590A RF Frontend module
B590D Extra RF Frontend, advanced functionality, retrofittable in R&S Service with UCS,
B590Dx2 CMW H590A RF Frontend module (qty 2)
B612A CMW H612A IEEE Bus Interface Module (single connector)
B612B CMW H612B IEEE Bus Interface Module (dual connector)
B620A CMW H620A Digital Video Interface (DVI) Module (only required for units with display/ke
B660A CMW H660A Option Carrier
B660H Option Carrier, H660H (hw opt.)
B661A CMW H661A Ethernet Switch Board
B661H Ethernet Switch, H661H (hw opt.)
B668A Control and sync interface, allows to control the R&S®CMWS, retrofittable in R&S Service, CMW module H668A (hardware option)
B690A CMW H690A OCXO Module
B690B CMW H690B OCXO Module (highly stable)
C3 3 years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 single channel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 dual c hannel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 triple channel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 4 chan nel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 4 chan nel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 triple channel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 dual c hannel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 single channel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 single channel. Including 1 scheduled calibration according to the 24 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 dual c hannel. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 triple channel. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 4 chan nel. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 4 chan nel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 triple channel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 dual c hannel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 single channel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CMW-KM721 Bluetooth LE R5 , TX measurements
CMW-KS611 Bluetooth Low Energy signaling / direct testmode support via USB interface,basic functionality
CMW-KS721 Bluetooth LE R5 DTM
CMWDKD03 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/280/500, 1 RF channel / 3.3GHz (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD06 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/280/500, 1 RF channel / 6GHz (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD33 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500, 2 RF channels / 3.3GHz each (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD36 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500, 2 RF channel / 3.3GHz and 6GHz (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD66 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500, 2 RF channels / 6GHz each (order only with device) [PhOut ann. w.subst. (81)]
CMWU5035 Basic assembly change-over kit 12,FMR9 FMR11 PS505Var04/06 + SSD
CMWU5055 Basic assembly change over kit
CMWU579D Change-over 2x TRX160 incl. FE-Advanced
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 0 scheduled calibrations according to the 24 month recommended cali
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calib
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calibrat
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calib
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calibration
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended calibratio
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended cali
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended calibra
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended cali
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 24 month recommended calib
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 24 month recommended calib
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended cali
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended calibra
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended cali
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended calibratio
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended calibratio
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended cali
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended calibra
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended cali
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 24 month recommended cali
DCV-2 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
DKD03 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/280/500,
DKD06 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/280/500,
DKD33 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/500,
DKD36 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/500,
DKD66 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/500,
H051F Controller FMR9/5
H052F Harddisk (standard)
H054B Power Supply
H055H Motherboard
H090A Reference
H100A BB Measurement
H110A BB Generator
H200 Hardware
H300B Signaling
H500I Signal Unit
H550A CMW_GPRF_Gen
H550M Baseband interconnection, flexible link, for multibox/non-signaling/signaling/IQ access, retrofittable in R&S service with UCS
H550M BB Flexible Link
H570B RF TRX
H590A CMW_GSM_Meas
H590D RF Front End
H600A CMW_LTE_eNodeB_Meas
H600B FPW/MMI
H605A Front Panel IP
H605A Front Panel Board IP
H612A IEEE
H612B CMW_LTE_Sig
K998 Enable customer path correction (software license)
KA065 Enabling test software for WLAN Offloading (software license)
KA100 Enabling of IP-Data interface for IPV4 (software license)
KA150 Extension of IP-Data interface for IPV6 (software license)
KA700 Permanent CMW license: Application Enabler, extension Convergence Sublayer IPv4, WiMAX(IEEE802.16e)
KAA10 Supl Serving Scenario (software license)
KAA20 Ims Basic Service
KAA20 Ims Basic Service (Software License)
KAC06 OMA SUPL 1.0 test cases (software license)
KAF45 at&t IOT SUPL 2.0 test cases (software license)
KAF46 at&t IOT VoLTE, test cases (software license)
KAF73 VzW IOT IMS VoIP test cases (software license)
KAF74 VzW IOT IMS Rich Communication Suite video calling + enhanced address book/presence test cases (software license)
KAF75 VzW IOT LTE IMS registration and registration retry, testcases (software license)
KB036 Permanent CMW license : Extended Frequency Range 3.3 GHz to 6 GHz
KB036 x 4 (PK364) Extended frequency range, 3.3 GHz to 6 GHz, per RF converter
KC001 LTE RRM 3GPP 36.521-3 Phase 1 FDD Test Case Executables (software license)
KC002 LTE RRM 3GPP 36.521-3 FDD InterRAT WCDMA Test Case Executables (software license)
KC003 LTE RRM 3GPP 36.521-3 FDD InterRAT GSM Test Case Executables (software license)
KC004 LTE RRM 3GPP 36.521-3 FDD InterRAT 1xEV-DO Test Case Executables (software license)
KC005 WCDMA RRM 3GPP 34.121-8 InterRAT FDD LTE test case executables (software license)
KC006 LTE RRM 3GPP 36.521-3 Release 9 FDD test case executables (software license)
KC007 LTE RRM 3GPP 36.521-3 Release 9 FDD IRAT WCDMA test case executables (software license)
KC008 LTE RRM 3GPP 36.521-3 Release 9 FDD IRAT GSM test case executables (software license)
KC009 LTE RRM 3GPP 36.521-3 release 8 FDD single mode mit LTE BW 5MHz test executables (software license) [New in production (20)]
KC010 LTE RRM 3GPP 36.521-3 FDD TDD HO test case executables (software license)
KC011 LTE RRM 3GPP 36.521-3 Prio 1 TDD test case executables (software license)
KC012 LTE RRM 3GPP 36.521-3 TDD InterRAT WCDMA test case executables (software license)
KC013 LTE RRM 3GPP 36.521-3 TDD InterRAT GSM test case executables (software license)
KC016 LTE RRM 3GPP 36.521-3 Release 9 TDD test case executables (software license)
KC018 LTE RRM 3GPP 36.521-3 Release 9 TDD IRAT WCDMA test case executables (software license)
KC020 LTE-A RRM 3GPP 36.521-3 release 10CA FDD single mode test case executables Enhancement Release 10 (software license)
KC021 LTE-A RRM 3GPP 36.521-3 release 10 CA FDD InterRAT WCDMA test cases executables (software license)
KC024 LTE RRM 3GPP 36.521-3 Release 9 IRAT FDD-TDD test case executables
KC026 LTE-A RRM 3GPP 36.521-3 release 10 CA TDD single mode test cases executables (software license)
KC050 WCDMA RRM 3GPP 34.121-3 non InterRAT test case executables (software license)
KC052 WCDMA RRM 3GPP 34.121-3 InterRAT GSM test case executables (software license)
KC060 LTE RRM 3GPP TS36.521-3 release 8 TDD IRAT TD-SCDMA downlink only test case executables (software license)
KC061 LTE RRM 3GPP TS34.122-8 release 8 TDD IRAT TD-SCDMA test case executables (software license)
KC201 GSM CS TC pack 1, Sec. 11.x, 12.2, 15.1, 17.1/2, 19.1/3, 32.11/12, 26.2-5 (software license)
KC205 GSM CS TC Pack 5, Sec. 26.16/17/19, AMR Signalling - speech version 3, 4, 5 (software license)
KC206 GSM CS TC Pack 6, Sec. 29.3, Non transparent data services(RLP tests) (software license)
KC207 GSM CS TC Pack 7, Sec. 31.x, 34.x, Supplementary services, Short message service (SMS) (software license)
KC208 GSM CS TC Pack 8, Sec. 70.x, Location Based services (software license)
KC209 GSM CS TC Pack 9, Sec. 27.x, 33.6, Testing of the SIM/ME interface (software license)
KC210 GSM TC PACK Dual SIM testing (software license)
KC211 GSM TC PACK, A5/4, GEA4 and USIM related testcases (software license)
KC212 GSM Dual SIM test case package 2 (software license)
KC214 GSM minimum performance testcase package (software license)
KC221 GSM GPRS TC Pack 1, Sec. 15.6, 20.22, 41.x, GPRS timing, GPRS Paging, GPRS cell selection and reselection, TBF establ./release (software license)
KC222 GSM GPRS TC Pack 2, Sec. 42.x, 43.x, Test of Medium Access Control (MAC) and RLC Test Cases (software license)
KC223 GSM GPRS TC Pack 3, Sec. 44.x, GPRS mobility management (software license)
KC231 GSM EGPRS TC Pack 1, Sec. 51.x, 52.x, 53.x, EGPRS Paging, TBF establ./release, EGPRS Test of MAC prot., EGPRS RLC prot. (software license)
KC232 GSM EDGE EVO TC Pack 1, Sec. 58b.x, Downlink Dual Carrier test cases (software license)
KC233 GSM TC PACK eCALL (software license)
KC241 GSM DTM TC Pack 1, Sec. 41.x, 44.x, 47.x, 51.x, 53.x, Dual Transfer Mode test cases (software license)
KC280 GSM conformance test cases VAMOS (software license)
KC401 3GPP 34.123 Test Cases R99, Single Mode,NAS RRC IDLE RLC MAC RAB SMS WI-010,012
KC402 WCDMA test cases R99 IRAT, 3GPP 34.123 WI-010, 012, 017 (software license)
KC403 3GPP 34.123 Test Cases A-GPS WI-015, R99 (software license)
KC404 WCDMA test cases Rel.5 HSDPA, 3GPP 34.123 WI-013, 014 SM and IRAT
KC405 WCDMA test cases, Rel.6 Enhancements,HSDPA and HSUPA IRAT, 3GPP 34.123 WI-024, 025
KC406 WCDMA test cases R99,R5, 3GPP 34.123 WI-047,051,052,053, FDD Interband Handover (software license)
KC408 WCDMA test cases, PTCRB RFT067 and RFT080 (software license)
KC420 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 Ciphering GCF WI-101
KC421 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 CPC Tests GCF WI-070
KC422 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 64QAM tests
KC423 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 L2 enhancements tests
KC424 3GPP 34.123 test cases, Enhanced CELL_FACH Down Link (software license)
KC425 WCDMA R7 test cases 3GPP 34.123 MIMO, WI-067 & WI-118 (software license)
KC426 WCDMA R7 Test Cases 3GPP 34.123 16QAM UL, WI-112 (software license)
KC427 3GPP 34.123 test cases CS Voice over HSPA R8 (software license)
KC428 WCDMA test cases, Rel.8 Dual Carrier, 3GPP 23.123 (software license)
KC429 WCDMA Conformance test cases 3GPP 34.123 R8 ENH L2 UL, WI-130 and ENH CELL FACH UL, WI-131 (software license)
KC430 WCDMA Rel. 7 NISPC (Network Initiated Secondary PDP Context Activation), WI-140 test cases (software license)
KC431 WCDMA Rel.8 64QAM+MIMO test cases (software license)
KC432 WCDMA test cases ETWS, (earthquake Tsunami warning system), 3GPP 34.123, WI-127 (software license)
KC433 WCDMA test cases eCall, 3GPP 34.123 (software license)
KC434 WCDMA Rel.8 HNB (Home NodeB) test cases (software license)
KC436 WCDMA Conformance test cases, Rel.9 DC-HSUPA, 3GPP 34.123 (software license)
KC501 LTE 3GPP 36.523 FDD TTCN-3 Test Cases GCF priority 1/2 (software license)
KC502 LTE FDD Rel.8/9 conformance test cases TEIR8/9-enhancements (software license)
KC503 LTE 3GPP 36.523 FDD TTCN-3 test cases, GCF priority 3/4 (software license)
KC504 LTE FDD conformance test cases IMS emergency call over LTE (software license)
KC506 LTE 3GPP 36.523 FDD-GERAN TTCN-3 test cases, GCF priority 3/4 (software license)
KC507 LTE 3GPP 36.523 FDD-UTRAN TTCN-3 Test Cases GCF priority 1/2 (software license)
KC508 LTE 3GPP 36.523 FDD-UTRAN TTCN-3 test cases, GCF priority 3/4 (software license)
KC511 LTE Conformance Test Cases, FDD/TDD Dual mode Rel.9 (software license)
KC512 LTE 3GPP 36.523 R9 FDD-UTRAN TTCN-3 IRAT test cases GCF WI-167 (software license)
KC514 LTE 3GPP 36.523 ZUC algorithm TTCN-3 test cases for R&S®CMW500 GCF WI-173 (software license)
KC515 LTE FDD Rel. 10 Conformance Test Cases: Technical small enh. and improvements (software license)
KC516 LTE FDD Rel. 10 Conformance Test Cases: Carrier Aggregation (software license)
KC520 LTE 3GPP 34.229 IMS-CC and MTSI TTCN-3 test cases for R&S®CMW500, TP92 (software license)
KC521 LTE 3GPP 34.229 SMS over IMS TTCN-3 test cases for R&S®CMW500, TP92 (software license)
KC535 LTE FDD conformance test cases LTE positioning protocol (LPP) (software license)
KC551 LTE 3GPP 36.523 TDD TTCN-3 Test Cases, GCF priority 1/2 (software license)
KC552 LTE TDD Rel.8/9 conformance test cases TEIR8/9-enhancements (software license)
KC553 LTE 3GPP 36.523 TDD TTCN-3 test cases, GCF priority 3/4 (software license)
KC556 LTE 3GPP 36.523 TDD-GERAN TTCN-3 test cases GCF priority 1/2, WI-097 (software license)
KC558 LTE 3GPP 36.523 TDD-UTRAN TTCN-3 test cases GCF priority 1/2, WI-096 (software license) [New in production (20)]
KC563 LTE 3GPP 36.523 TDD-TDSCDMA TTCN-3 Testfälle GCF Prio 1/2 for R&S®CMW500(TP92), WI-096/099 (software license)
KC564 LTE 3GPP 36.523 TDD-TDSCDMA TTCN-3 test cases for R&S®CMW500 (TP92) GCF WI-169 (software license)
KC566 LTE TDD Rel. 10 Conformance Test Cases: Carrier Aggregation (software license)
KC567 LTE 3GPP 36.523 TDD-TDSCDMA TTCN-3 test cases GCF Prio 1/2 for Datang (TP135), WI-096/099 (software license)
KC571 LTE FDD InterRAT Conformance test cases, 3GPP2 HRPD GCF Prio 1/2, WI-088 (software license)
KC572 LTE FDD InterRAT Conformance test cases 3GPP2 1xRTT GCF Prio 1/2, WI-088 (software license)
KC573 LTE FDD InterRAT R9 enhancements, Conformance Test Cases 3GPP2 CDMA2000®, WI-159 (software license)
KC585 LTE TDD conformance test cases LTE positioning protocol (LPP) (Software-Lizenz)
KE100 Basic Fading Support, Awgn Generator (Software License)
KE200 GSM Fading profiles TS45.005 C.3 (RAx, HTx 6tap, TUx 6tap, EQx, TIx) (software license)
KE400 WCDMA Fading profiles TS25.101 B.2.x (B2.2 table B.1, C, D, B2.5, B2.6) (software license)
KE500 Basic Fading Profiles Ts36.521 (B1.1, B2.1, B2.3, B2.4, B3) (Software License)
KE501 LTE fading profiles MIMO 4x2 from TS36.521 B2.3 (software license)
KE750 TD-SCDMA fading profiles from TS34.122 Annex D.2 (excerpt) (software license)
KE800 C2K/EV-DO fading profiles from C.S0032-C6.4.1 and C.S0011-C6.4.1 (software license)
KF001 LTE RRM R&D Scenarios FDD RSCP Measurement, Mobility, RRC Connection Control (software license)
KF200 GSM MLAPI example scenarios (software license)
KF400 WCDMA MLAPI example scenarios (software license)
KF401 WCDMA MLAPI Scenarios. Single Cell HSDPA/HSUPA, Dual Cell Soft HO HSDPA
KF402 WCDMA MLAPI Scenarios. Dual Cell HHO and SHO HSUPA, Triple Cell SHO HSDPA, Quad Cell SHO
KF411 WCDMA MLAPI scenarios, Public Warning System (PWS) (software license)
KF414 WCDMA MLAPI scenarios for CSG and Home NodeB (software license)
KF420 WCDMA-GSM handover, MLAPI test scenarios (software licnense)
KF428 Dual SIM Dual Mode Test Case Pack 1, Standalone TCs (software license)
KF429 Dual SIM Dual Mode Test Case Pack 2, Multi CMW TCs (software license)
KF431 WCDMA IOT scenarios AT&T IOT RRC inkl.IRAT test plan (software license)
KF432 WCDMA IOT scenarios AT&T IOT HSDPA test plan (software license)
KF433 WCDMA IOT scenarios AT&T IOT AMR test plan (software license)
KF434 WCDMA IOT scenarios AT&T IOT network selection test plan (software license)
KF435 WCDMA IOT scenarios AT&T IOT UMTS Multi RAB test plan (software license)
KF436 WCDMA IOT scenarios AT&T IOT call processing test plan (software license)
KF437 WCDMA IOT scenarios ENS test plan (software license)
KF438 WCDMA IOT scenarios AT&T IOT EONS test plan (software license)
KF440 Release 7 HSPA, WCDMA at&t test scenarios (software license)
KF441 WCDMA IOT at&t fast dormancy test plan (software license)
KF451 WCDMA R7 MLAPI scenarios L2 enhancements (software license)
KF452 WCDMA HSPA+ MLAPI scenarios, CPC, enh. CELL_FACH and CS Voice HSPA, 16 QAM UL
KF453 WCDMA HSPA+ MLAPI scenarios, package 3 (software license)
KF454 WCDMA HSPA+ scenarios Pack 4 (software license)
KF500 LTE MLAPI example scenarios (software license)
KF502 Permanent CMW License: LTE FDD MLAPI Basic Procedures
KF503 LTE FDD MLAPI EPS Bearer Verification
KF504 Intra-LTE Handover and Mobility
KF505 LTE MLAPI scenarios package 4, IO(D)T and Field Trial Tests (software license)
KF506 LTE FDD LLAPI PHY test scenarios package 1 (software license)
KF507 LTE FDD LLAPI PHY Test Scenarios Pack 2 (software license)
KF511 LTE Rel.9 CMAS MLAPI scenarios, Commercial Mobile Alert System (software license)
KF512 LTE Rel.8 LLAPI PHY Scenarios TTI Bundling/SPS (software license)
KF513 LTE Rel. 10 PHY/MAC scenarios FDD/TDD (software license)
KF514 LTE Rel. 10 MLAPI scenarios, Carrier Aggregation, incl. Mobility (software license)
KF515 LTE Rel.10 MLAPI scenarios eICIC (software license)
KF520 LTE MLAPI IRAT Handover GSM test scenarios (software license)
KF521 LTE-GSM Single Radio Voice Call Continuity (SRVCC) H/O, MLAPI scenarios (software license)
KF530 LTE MLAPI IRAT Handover WCDMA test scenarios (software license)
KF531 LTE-WCDMA Single Radio Voice Call Continuity (SRVCC) H/O, MLAPI scenarios (software license)
KF532 LTE-WCDMA-GSM Triple RAT Handover MLAPI scenarios (software license)
KF540 LTE FDD IOT scenarios, MM Mobility (software license)
KF541 LTE FDD IOT scenarios, RRC & Encryption (software license)
KF542 LTE FDD IOT scenarios, Intra-RAT Mobility Idle (software license)
KF543 LTE FDD IOT scenarios, Intra-RAT Mobility Active (software license)
KF544 LTE FDD IOT scenarios, Inter-Rat Mobility Idle (software license)
KF545 LTE FDD IOT scenarios, Inter-RAT Mobility Active (software license)
KF546 LTE IOT scenarios AT&T IOT ENS Test Plan (software license)
KF547 LTE IOT scenarios, AT&T IOT EONS test plan (software license)
KF548 LTE IOT scenarios, AT&T IOT Circuit Switch Fall Back test plan (software license)
KF549 LTE IOT scenarios, AT&T IOT AGPS E911 test plan (software license)
KF556 LTE TDD LLAPI scenarios (software license)
KF570 LTE FDD IOT scenarios, Data Retry (software license)
KF571 LTE FDD 3GPP Band 13 Signaling, Conformance Batch #1 (software license)
KF572 LTE FDD 3GPP Band 13 Signaling, Conformance Batch #2 (software license)
KF573 LTE FDD 3GPP Band 13 Signaling, Conformance Batch #3 (software license)
KF574 LTE FDD 3GPP Band 13 to CDMA Inter-RAT performance tests (software license)
KF575 eHRPD Compliance Tests (software license)
KF576 LTE FDD IOT scenarios, SMS over IMS (software license)
KF577 LTE FDD IOT scenarios, Supplementary Signaling Conformance test plan
KF578 LTE IOT szenarien, VzW IOT LTE CDMA IRAT operations test plan (software license)
KF579 LTE IOT szenarien VzW IOT SVLTE IRAT testplan (software license)
KF588 LTE FDD MLAPI scenario package 1 Handover from LTE FDD to CDMA2000
KG200 Permanent CMW licence: Generator, GSM/GPRS/EDGE, Downlink
KG400 Permanent CMW licence: Generator, WCDMA, Downlink
KG401 Permanent CMW license: Generator, WCDMA HSPA extension of CMW-KG400, Downlink
KG800 CDMA2000® 1xRTT, generator, forward link (software license)
KM0012 Tx Measurement, Multi Evaluation List Mode / Melm (Software License)
KM010 Permanent CMW license: FTT spectrum analyzer
KM011 Permanent CMW license: TX measurement "IQ Versus Slot", Uplink
KM012 Permanent CMW license: TX measurement Multi Evaluation List Mode
KM050 IP based measurements, in combination with technology specific IP data enabling
KM051 Ip Traffic Analysis (Software License)
KM200 Permanent CMW license: TX Measurement, GSM/GPRS/EDGE, Uplink
KM201 GSM Release 7 EGPRS2-A, TX measurement, uplink (software license)
KM400 Permanent CMW license: TX Measurement, WCDMA, uplink
KM401 Permanent CMW license: TX measurement, WCDMA HSPA, extension of CMW-KM400, Uplink
KM403 Permanent CMW license: TX measurement, WCDMA HSPA+ extension of CMW-KM401, Uplink
KM405 WCDMA Release 9 HSPA+, TX measurement, uplink (software license)
KM500 Permanent CMW license: TX measurement LTE FDD, Uplink
KM502 LTE FDD Release 10 UL CA, TX measurement, Uplink (software license)
KM550 LTE TDD (TD-LTE) Release 8, TX measurement, uplink (software license)
KM552 LTE TDD Release 10 UL CA, TX measurement, Uplink (software license)
KM610 Permanent CMW license: TX measurement, Bluetooth
KM611 Bluetooth® Low Energy, TX measurement, (software license)
KM645 FM Stereo Radio, TX measurement, (software license)
KM650 Permanent CMW license: TX Measurement WLAN (IEEE 802.11a/b/g)
KM651 WLAN IEEE 802.11n SISO, TX measurement, (software license)
KM652 WLAN IEEE 802.11n MISO, TX measurement (software license)
KM653 WLAN IEEE 802.11n MIMO, switched TX measurement (software license)
KM655 WLAN IEEE 802.11p, TX measurement (software license)
KM656 WLAN IEEE 802.11ac SISO, Tx measurement (software license)
KM700 Permanent CMW license: TX Measurements, Mobile WiMAX (IEEE 802.16e)
KM701 Permanent CMW license: TX measurement, extension for R&D applications, WiMAX(IEEE802.16e), Wave 1
KM750 Permanent CMW license: TX Measurement, TD-SCDMA, uplink
KM751 TD-SCDMA enhancement, TX measurement, Uplink (software license)
KM800 Permanent CMW license: TX Measurement, CMDA2000® 1xRTT, Reverse Link
KM880 Permanent CMW license: TX Measurement, 1xEV-DO, Reverse Link
KN500 LTE FDD Release 8/9, eNode B TX measurement, Downlink (software license)
KN550 LTE TDD Release 8/9, eNode B TX measurement, Downlink (software license)
KO410 WCDMA IOT IRAT HO protocol tests (software license)
KO420 WCDMA IOT NTT DOCOMO CELL BARR/AREA MAIL test plan (software license)
KO421 WCDMA RE-ESTS/RE-SEL/REL test plan (software license)
KO422 WCDMA IOT NTT DOCOMO SMS/SS/EUL/OTHER test plan (software license)
KO423 WCDMA IOT NTT DOCOMO handover/cm test plan (software license)
KO424 WCDMA IOT NTT DOCOMO status CHG/PRES test plan (software license)
KO425 WCDMA IOT NTT DOCOMO TX DIVERSITY test plan (software license)
KO426 WCDMA IOT NTT DOCOMO VIDEO/UDI/LCS test plan (software license)
KO427 LTE IOT DCM Docomo RC Feature List Test plan (software license)
KO431 WCDMA IOT scenarious AT&T IOT RRC incl. IRAT test plan, including source code (software license)
KO432 WCDMA IOT scenarious AT&T IOT HSDPA test plan, including source code (software license)
KO433 WCDMA IOT scenarious AT&T IOT AMR test plan, including source code (software license)
KO434 WCDMA IOT scenarious AT&T IOT network slection test plan, including source code (software license)
KO435 WCDMA IOT Szenarien AT&T IOT UMTS multi RAB test plan included source code (software license)
KO436 WCDMA IOT Szenarien AT&T IOT call processing test plan included source code (software license)
KO437 WCDMA IOT Szenarien ENS test plan included source code (software license)
KO438 WCDMA IOT scenarios AT&T IOT EONS test plan included source code (software license)
KO441 WCDMA IOT at&t fast dormancy test plan incl. source code (software license)
KO460 WCDMA HSPA+ IOT t-mobile US package 1 protocol tests (software license)
KO461 WCDMA HSPA+ IOT t-mobile US package 2 protocol tests (software license)
KO480 WCDMA IOT scenarios CHINA-UNICOM IOT 3G functional test plan (software license)
KO481 WCDMA IOT scenarios CHINA-UNICOM IOT network selection & reselection test plan (software license)
KO482 WCDMA IOT scenarios CHINA-UNICOM IOT AMR CALL processing test plan (software license)
KO483 WCDMA IOT scenarios CHINA-UNICOM IOT SMS & SUPPLEMENTARY Service test plan (software license)
KO484 WCDMA IOT scenarios CHINA-UNICOM IOT MULTIRAB test plan (software license)
KO485 WCDMA IOT Szenarien CHINA-UNICOM IOT INTERRAT test plan (software license)
KO486 WCDMA IOT Szenarien CHINA-UNICOM IOT HSXPA test plan (software license)
KO487 WCDMA IOT Szenarien CHINA-UNICOM IOT HSPA+ test plan (software license)
KO500 LTE IOT at&t femto cell protocol tests (software license)
KO501 LTE IOT at&t cell broadcast protocol tests (software license)
KO502 LTE IOT at&t Femto cell protocol tests incl. source code (software license)
KO503 LTE IOT at&t Cell Broadcast protocol tests incl. source code (software license)
KO504 LTE IOT at&t IPV6 IRAT Protocol Tests (software license)
KO510 LTE IOT scenarios KDDI IOT test plan (software license)
KO511 LTE IOT scenarios KDDI IOT InterRAT eHRPD test plan (software license)
KO512 LTE IOT szenarien KDDI IOT CSFB 1xRTT Testplan (software license)
KO513 LTE IOT KDDI LTE CA/TD-LTE IRAT protocol tests (software license)
KO515 LTE FDD IOT KDDI test plan including source code (software license)
KO516 LTE FDD IOT KDDI IRAT test plan including source code (software license)
KO517 LTE FDD IOT KDDI CSFB 1xRTT test plan including source code (software license)
KO520 LTE IOT NTT DOCOMO emergency call test plan (software license)
KO521 LTE FDD IOT NTT DOCOMO BARRED/AREA MAIL test plan (software license)
KO522 LTE FDD IOT NTT DOCOMO reselect and measurement test plan (software license)
KO523 LTE FDD IOT NTT DOCOMO HO redirection and re-establishment test plan (software license)
KO524 LTE FDD IOT NTT DOCOMO inter-rat test plan (software license)
KO525 LTE FDD IOT NTT DOCOMO band 19/21 test plan (software license)
KO526 LTE INTER-RAT signalling recovery NTT Docomo LTE test plan (software license)
KO531 LTE IOT at&t VoLTE protocol tests (software license)
KO532 LTE IOT at&t SRVCC protocol tests (software license)
KO533 LTE IOT at&t advanced network selection (>2 CMW) protocol tests (software license)
KO534 LTE IOT at&t Rel 10 carrier aggregation protocol tests (software license)
KO535 LTE IOT at&t VoLTE protcol tests incl. source code (software license)
KO536 LTE IOT at&t SRVCC protocol tests inkl. source code (software license)
KO537 LTE IOT at&t advanced network selection (> 2 CMW) protocol tests incl. source code (software license)
KO538 LTE IOT at&t Rel10 carrier aggregation protocol tests incl. source code (software license)
KO539 LTE IOT at&t E911 protocol tests (software license) [New in production (20)]
KO540 LTE FDD IOT scenarious MM mobility including source code (software license)
KO541 LTE FDD IOT scenarious RRC & encryption including source code (software license)
KO542 LTE FDD IOT scenarious Intra-RAT mobility Idle including source code (software license)
KO543 LTE FDD IOT scenarious Intra-RAT mobility active including source code (software license)
KO544 LTE FDD IOT scenarious Intra-RAT mobility idle including source code (software license)
KO545 LTE FDD IOT scenarious Intra-RAT mobility active including source code (software license)
KO546 WCDMA IOT scenarious AT&T IOT ENS test plan including source code (software license)
KO547 LTE IOT scenarious AT&T IOT EONS test plan including source code (software license)
KO548 LTE IOT scenarious AT&T IOT circuit switch fall back test plan including source code (software license)
KO549 LTE IOT scenarious IOT AT&T LTE AGPS E911 test plan including source code (software license)
KO550 LTE FDD IOT T-Mobile LTE test plan (software license)
KO551 LTE FDD IOT T-Mobile IRAT test plan (software license)
KO552 LTE FDD IOT T-Mobile IMS test plan (software license) [New in production (20)]
KO561 LTE IOT T-Mobile US package 1 protocol tests (software license)
KO562 LTE IOT t-mobile US package 2 protocol tests (software license)
KO563 LTE IOT t-mobile US package 3 protocol tests (software license)
KO570 LTE FDD IOT scenatrios, data retry tor multimode devices (software license)
KO571 LTE IOT VzW interband protocol tests (software license)
KO572 LTE IOT VZW E911 for VoLTE capable Devices Section 5 - C-Plane Fallback Protocol Tests (software license)
KO574 LTE IOT VZW E911 for VoLTE capable Devices Section 2 System Selection Protocol Tests (software license)
KO575 VzW IOT E911 for VoLTE capable Devices Section 3 Calling features and location determination protocol Tests (software license)
KO577 LTE IOT VzW SVD interband protocol tests (software license)
KO578 LTE IOT VZW CMAS Protocol Tests (software license)
KO580 LTE IOT Szenarien, CMCC IOT Mobility test plan (software license)
KO581 LTE IOT scenarios, CMCC IOT Mobility test plan (software license)
KO590 LTE IOT Telus roaming protocol tests (software license)
KP040 CMWcards Signaling Tester framework (software license)
KP080 Permanent CMW license: Protocol tester framework. Network emulation
KP200 GSM InterRAT MLAPI Programming Interface (software license)
KP220 GSM stack extension GSM/GPRS/EGPRS (software license)
KP280 GSM stack extension VAMOS (software license)
KP400 Permanent CMW license: WCDMA MLAPI interface for netwerk emulation
KP401 Permanent CMW licence:WCDMA CPC extension of API interfaces
KP402 Permanent CMW license: WCDMA 64 QAM extension of API interfaces
KP403 Permanent CMW license: WCDMA Downlink L2 Enhancements, extension of API interfaces
KP404 WCDMA enhanced CELL_FACH extension of the API interfaces (software license)
KP405 Permanent CMW license: WCDMA MIMO 2x2 extension of API interfaces for Tx diversity and spatial multiplexing
KP406 WCDMA R7 UL 16 QAM extension of API interfaces (software license)
KP407 WCDMA CS-VOICE HSPA extension of API interface (software license)
KP408 WCDMA Stack Extension R8 Dual Carrier HSDPA (software license)
KP409 WCDMA Stack Extension R8 Enhancements (software license)
KP410 WCDMA Rel.9 DC HSDPA + MIMO2x2 stack extension, Dual Carrier + MIMO2x2 CAT28 (software license)
KP411 WCDMA Rel.9 DC HSUPA stack extension, Dual Carrier HSUPA (software license)
KP420 WCDMA/GSM Handover Signaling Extension (software license)
KP440 WCDMA Stack extension R99/R4/R5/R6 (software license)
KP451 3GPP 34.123, Development environment ETSI ATS R3, WI-010, 012, 015, 017 (software license)
KP452 3GPP 34.123 Development environment ETSI ATS R5 WI-013,014 (software license)
KP453 3GPP 34.123 Development Environment ETSI ATS R6 WI-024,025,049 (software license)
KP454 3GPP 34.123, Development Environment ETSI ATS R7 WI-067, 068, 069, 070, 101
KP455 Development environment ETSI ATS R8 (software license)
KP500 Permanent CMW license: LTE FDD MLAPI interface for network emulation
KP501 Permanent CMW license: LTE FDD LLAPI interface for network emulation
KP502 Permanent CMW license: LTE FDD virtual physical layer with SW interface to device under test
KP505 LTE Stack Extension FDD mode (software license)
KP510 Permanent CMW license: LTE FDD MIMO 2x2 extension of API interfaces for
KP511 LTE MIMO 4x2 signaling extension (software license)
KP514 LTE Circuit switched voice fallback stack extension (software license)
KP520 LTE/GSM Handover signaling extension (software license)
KP530 LTE/WCDMA Handover signaling extension (software license)
KP542 RRM extension for MLAPI (software license)
KP550 LTE TDD Stack extension
KP563 LTE TTCN-3 Programming Interface for 3GPP 36.523 Test Cases (software license)
KP564 LTE TTCN-3 programming interface for 3GPP 36.523 IRAT Test Cases (software license)
KP565 LTE R9 TTCN-3 development environment (software license)
KP566 LTE R8 TTCN-3 API for 3GPP 36.523 IRAT TD-SCDMA Test Cases for R&S®CMW500 (TP92) (software license)
KP567 LTE R8 TTCN-3 API for 3GPP 36.523 IRAT TD-SCDMA Test Cases for Datang (TP135) (software license)
KP569 LTE R10 TTCN-3 API extension for 3GPP 36.523 Test Cases (software license)
KP570 LTE TTCN-3 programming interface for 1xRTT & 1xEV-DO InterRAT test cases (software license)
KP577 TD-LTE TD-SCDMA IRAT stack extension (software license)
KP577 TD-LTE TD-SCDMA IRAT stack extension (company license)
KP588 LTE Stack Extension: Handover from LTE to 1xEV-DO
KP590 LTE Rel.8/9 beamforming TM7/8 stack extension (software license)
KP591 LTE Rel.9 PWS/ETWS, Public-/Earthquake and Tsunami Warning System, stack extension (software license)
KP592 LTE Rel.9 eMBMS stack extension (software license)
KP593 LTE R9 LBS stack extension (software license)
KP594 LTE Rel. 10 Stack extension, Carrier Aggregation, 2DL Component Carriers (software license)
KP595 LTE Rel. 10 Stack extension, eICIC (enhanced inter cell interference coordination) (software license)
KP596 LTE Rel. 10 Stack extension, Transmission Mode 9 (TM9) and 8x2 MIMO DL (software license)
KP597 LTE Rel. 10 Stack extension, Carrier Aggregation Uplink (software license)
KP750 TD-SCDMA stack extension (software license)
KP880 LTE Stack Extension: CDMA2000 1xEV-DO Support
KQ001 LTE TTCN-3 test adapter, sim.lib. for LTE USIM test cases (software license)
KQ002 LTE TTCN-3 test adapter, Sim. Lib. for LTE USAT Conformance test cases (software license)
KQ003 LTE TTCN-3 test adapter, Sim. Lib. for SIM Roaming test cases (software license)
KQ004 LTE TTCN-3 test adapter, sim. lib. for feature explorer app (Software-Lizenz)
KQ006 LTE TTCN-3 Test Adapter Sim. Lib. for SIM Roaming TD-SCDMA Test Cases 7Layers (software license)
KS170 Alerting network support, CMAS for WCDMA, generic feature (software license)
KS200
KS201 GSM Release 7 EDGE Evolution, signaling/network emulation, basic functionality
KS203 GSM Release 9 VAMOS, signaling/network emulation, basic functionality
KS210 GSM GPRS EDGE Release 6, signaling/network emulation, advanced functionality
KS211 GSM Release 7, signaling/network emulation, advanced functionality
KS400 Permanent CMW License: WCDMA Signaling
KS401 Permandent CMW license: WCDMA HSPA Signaling
KS403 WCDMA Release 7 HSPA+, SISO, signaling/network emulation,
KS404 Wcdma Release 8, Signaling/ Network Emulation, Basic Functionality
KS404 Wcdma Release 8, Signaling/ Network Emulation, Basic Functionality (Software License)
KS405 WCDMA Release 9 HSPA+, signaling/network emulation, basic functionality (software license)
KS410 WCDMA Release 99, signaling/network emulation, advanced functionality
KS411 WCDMA Release 5/6 HSPA, signaling/network emulation, advanced functionality
KS413 WCDMA Release 7 HSPA+, signaling/network emulation, advanced functionality
KS425 WCDMA, user defined bands, signaling/network emulation, generic feature
KS500 Permanent CMW license: LTE FDD Signaling
KS502 LTE FDD Release 10, Carrier Aggregation, signaling/network emulation, basic functionality (software license)
KS504 LTE FDD Release 12, signaling/network emulation, basic functionality.
KS510 LTE Release 8, SISO, signaling/network emulation,
KS512 LTE FDD Release 10, Carrier Aggregation, signaling/network emulation, advanced functionality (software license)
KS520 LTE MIMO2x2, signaling/network emulation, generic feature
KS521 LTE MIMO 4x2, downlink, signaling/network emulation, generic feature (software license)
KS525 LTE, user defined bands, signaling/network emulation, generic feature (software license)
KS550 Lte Tdd (Td-Lte) Release 8, Signaling/Network Emulation, Basic Functionality
KS550 Lte Tdd (Td-Lte) Release 8, Signaling/Network Emulation, Basic Functionality (Software License)
KS552 LTE TDD Release 10, Carrier Aggregation, signaling/network emulation, basic functionality (software license)
KS554 LTE TDD Release 12, signaling/network emulation, basic functionality.
KS590 LTE FDD/TDD MTC, eMTC signaling/network analyzer
KS600 Bluetooth®, signaling / connection setup, basic functionality (software license)
KS602 Bluetooth signaling/hands free audio profile, basic functionality.
KS603 Bluetooth signaling/A2DP audio profile basic functionality.
KS610 Bluetooth® Basic Rate/Enhanced Data Rate signaling / test mode support, basic fuctionality (software license)
KS650 Wlan Ieee 802.1a/B/G, Siso Signaling/Base Station Emulation, Basic Functionality (Software License)
KS651 Wlan Ieee 80211n, Signaling /Base Station Emulation, Basic Functionality (Software License)
KS656
KS660 WLAN IEEE 802.11a/b/g signaling/access point emulation, advanced functionality (software license)
KS670 WLAN IEEE 802.11n, MIMO 2x2 5 GHz band, DL MIMO / UL SISO, signaling/access point emulation, generic functionality (software license)
KS700 Permanent CMW license: Signaling (Base Station emulator), Mobile WiMAX (IEEE 802.16e)
KS701 Permanent CMW license: Signaling (Base Station Emulator) extension for R&D applications, WiMAX (IEEE 802.16e),
KS702 WiMAX# IEEE 802.16e MIMO 2x2, signaling/base station emulation, generic feature
KS750 TD-SCDMA Release 4, signaling/network emulation, basic signaling (software license)
KS760 TD-SCDMA Release 4, signaling / network emulation, advanced functionality (software license)
KS800 CDMA2000® 1xRTT, signaling/network emulation, basic functionality
KS810 CDMA2000® 1xRTT, signaling/network emulation, advanced functionality
KS880 CDMA2000® 1xEV-DO Revision 0/A, signaling/network emulation, basic functionality
KS881 Cdma2000? 1xev-Do Revision B, Signaling/Network Emulation, Basic Funktionality (Software License)
KS888 CDMA2000® 1xEV-DO/1xRTT Hybrid Mode, signaling/network emulation, generic feature (software license)
KS890 CDMA2000® 1xEV-DO Revision 0/A, signaling/network emulation, advanced functionality
KT001 Permanent CMW license: Protocol Testing Tool TTCN-2 Editor
KT002 Permanent CMW license: Protocol testing tool TTCN-2 Analyzer
KT003 Protocol Testing Tool TTCN-2 Compiler (software license)
KT004 Protocol Testing Tool TTCN3 Compiler and Editor
KT010 Permanent CMW license: PROJECT EXPLORER, test sequence execution management
KT011 Permanent CMW license: MESSAGE ANALYZER. Protocol message analysis
KT012 Permanent CMW license: MESSAGE COMPOSER. Protocol message editing
KT013 L1, Test GUI (software license)
KT014 Permanent CMW license: Protocol testing tool, Automation Manager
KT016 WCDMA Protocol Testing Monitor (software license)
KT017 LTE FDD Protocol testing monitor (Timed license, 12 months
KT019 Permanent CMW license: PICS/PIXIT Editor
KT020 Test Case Explorer
KT021 CMWmars, Message analyzer advanced (software license)
KT022 CMWcards, graphical test script definition tool (software license)
KT050 Cmw Run Sequencer Suite, Gsm, Wcdma, Lte, Cdma2000 1xrtt 1xev-Do, Wimax, Supports Basic Signaling Functions (Software License)
KT051 Permanent CMW license: CMWrun Sequencer Software Tool, General purpose Applications
KT053 CMWrun sequencer software tool, GSM and WCDMA applications
KT054 TD-SCDMA, R&S®CMWrun Sequenzer Software Tool (software license)
KT055 LTE, CMWrun sequencer software tool (software license)
KT057 Permanent CMW license: CMWrun Sequencer software tool, WiMAX applications
KT058 CDMA2000® 1xRTT/1xEV-DO, CMWrun sequencer software tool (software license)
KT100 CMWrun sequencer software tool, IP performance measurements (software license)
KT105 R&S®CMWrun sequenzer software tool, Audio/Video difference analysis with VTx instruments (software license)
KT150 PQA Multi Flow, IMS Enabling and analysis toolset (software license)
KT151 PQA power drain measurement (software license)
KT157 PQA Video Performance Measurement (software license)
KT400 WCDMA Throughput measurement and analysis toolset (software license)
KT405 WCDMA Call Performance Toolset (software license)
KT410 WCDMA Handover Throughput Recovery analysis toolset (software license) [New in production (20)]
KT425 WCDMA Dual Carrier Throughput analysis toolset (software license)
KT500 LTE Throughput measurement and analysis toolset (software license)
KT504 LTE FDD latency analysis toolset (software license)
KT505 LTE Mobility Performance analysis toolset (software license)
KT506 PQA InterRAT ANR Analysis (software license)
KT507 LTE PQA device aggression management analysis tool set (software license)
KT510 LTE Handover Throughput Recovery analysis toolset (software license)
KT530 LTE WCDMA Handover Throughput Recovery analysis toolset (software license)
KT535 LTE PQA SRVCC and VoLTE performance analysis toolset (software license)
KT540 LTE PQA Rel 10 carrier aggregation throughput analysis toolset (software license)
KT550 LTE TDD Throughput analysis toolset (software license)
KT555 Throughput Configuration Tool for LTE (software license)
KT560 LTE RRM measurement report analyses toolset (software license)
KT570 LTE OTDOA/eCID analyses toolset (software license)
KT650 WLAN IEEE 802.11 message analyzer software tool, online analysis, CMW based (software license)
KT700 Permanent CMW license: Message Analyzer software tool, WiMAX(IEEE802.16e) applications, online analysis,
KT950 R&S®CMWrun sequencer software tool, SEQUANS library 1, SEQUANS tools required in addition (software license)
KT960 R&S®CMWrun sequencer software tool, QUALCOMM® library 1, QUALCOMM® tools required in addition (software license)
KU540 LTE IOT at&t SRVCC E911 Protocol Tests (software license) [New in production (20)]
KU541 LTE IOT at&t ISIM Protocol Tests (software license)
KU542 LTE IOT at&t VoLTE Border protocol tests (software license)
KU574 LTE IOT VzW supplementary interband protocol tests (software license)
KV110 Waveforms for ARB generator, library 1 (software license)
KV112 Waveforms for ARB generator, library 2 (software license)
KV113 Waveforms for ARB generator, library 3 (software license)
KV114 Waveforms For Arb Generator, Library 2 (Software License)
KV114 Waveforms For Arb Generator, Library 4 (Company License)
KV114 Waveforms For Arb Generator, Library 4 (Software License)
KV115 Waveforms for ARB generator, library 5 (software license)
KV116 Waveforms for ARB generator, library 6 (software license)
KV118 Waveforms for ARB generator, library 8 (software license)
KV636 ISDB-T Brazil, waveforms for ARB generator, IQ stream with video/audio content (software license)
KV645 FM Stereo Radio, waveforms for ARB generator (software license)
KW010 Enable WinIQSIM2 waveforms for ARB generator, additional white gaussion noise / AWGN (software license)
KW200 Permanent CMW license: Enabling WinIQSIM2 Waveforms, GSM/EDGE
KW201 GSM Release 7 EDGE Evolution, enable WinIQSIM2 waveforms for ARB generator
KW400 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WCDMA
KW401 Permanent CMW license: Enabling WinIQSIM 2 Waveforms, WCDMA,HSDPA Extension of CMW-KW400
KW402 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WCDMA, HSUPA Extension of CMW-KW400
KW403 WCDMA Release 7 HSPA+, enable WinIQSIM2 waveforms for ARB generator
KW500 Permanent CMW license: Enabling WinIQSIM2 Waveforms EUTRA/LTE
KW610 Permanent CMW license: Enabling R&S WinIQSIM 2 Waveforms, BLUETOOTH
KW620 GPS, enable WinIQSIM2 waveforms for ARB generator
KW621 Glonass, enable WinIQSIM2 waveforms for ARB generator (software license)
KW622 Galileo, enable WinIQSIM2 waveforms for ARB generator (software license)
KW623 Compass/Beidou, enables WinIQSIM2 waveforms for ARB generator (software license)
KW630 Permanent CMW license: Enabling WinIQSIM2 Waveforms, DVB
KW650 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WLAN (IEEE 802.11a/b/g)
KW651 WLAN IEEE 802.11n, enable WinIQSIM2 waveforms for ARB generator
KW656 WLAN IEEE 802.11ac, enables WinIQSIM2 waveforms for ARB generator (software license)
KW700 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WiMAX (IEEE 802.16)
KW750 Permanent CMW license: Enabling WinIQSIM2 Waveforms, TD-SCDMA
KW751 TD-SCDMA enhancement, enable WinIQSIM2 waveforms for ARB generator
KW800 Permanent CMW license: Enabling WinIQSIM2 Waveforms, CDMA2000®
KW880 Permanent CMW license: Enabling of WinIQSIM2 Waveforms, 1xEV-DO
P752 CMW270 WiMAX Communication Tester, Mainframe 01
PK010 Protocol test tools bundle (bundles R&S®CMW-KT010,012,014,016,017, 019,020 and 021) (software license)
PK10S Base software bundle for systems, includes : KT010, KT011, KT012, KT014, KAA20, KA100, KA150, KM050, KE100, KF400, KF500 (software license)
PK20 Gsm Call Box Bundle, Including Measurements R&S?Cmw-Km200/201 And Signaling R&S?Cmw-Ks200/201/203/210 (Software License)
PK364 6GHz Flat Rate, enabling extended frequency range 3.3GHz to 6GHz on up to 4 RF converters (TRXs), retrofittable in R&S service with UCS only (software license)
PK40 WCDMA call box bundle, inclding measurements : R&Su®CMW-KM400/401/403 und signaling : R&S®CMW-KS400/401/403/404/410/411/413 (software license)
PK400 WCDMA HSPA+ R7 64QAM/L2 enh. Throughput Test Suite (timed license, 12 month)
PK401 WCDMA stacks bundle for Rel. 7 and 8 (bundles R&S®CMW-KP401 - KP409) (software license)
PK40S WCDMA software bundle for systems, includes : KE400, KM400, KM401, KM403, KP401, KP402, KP403, KP404, KP405, KP406, KP408, KP440 (software license)
PK45 Application testing / IMS bundle, including : IP data interface R&S®CMW-KA100/150, measurements R&S®CMW-KM050/051, IMS services R&S®CMW-KAA20
PK50 Lte Call Box Bundle, Including Measurements R&S?Cmw-Km500/550 And Signaling R&S?Cmw-Ks500/510/520/550 (Software License)
PK500 Associated Signaling (network emulation) LTE FDD
PK505 LTE RRM 3GPP 36.521-3 Release 8 FDD Bundle for single mode test cases and InterRATs WCDMA/GSM/1xEVDO CMW-KC001/-KC002/-KC003/-KC004/-KC005
PK50S LTE software bundle for systems, includes : KE500, KM500, KM550, KP505, KP510, KP511, KP550, KP590, KP592 (software license)
PK532 InterRAT stack bundle for protocol test (bundles R&S®CMW-KP220,401-409,420,440, 505,510,511,514,520,530,550,590,591,593) (software license)
PK533 MLAPI bundle for protocol test (bundles R&S®CMW-KP200,400,500 and R&S®CMW-KF200,400-402,420,451-454, 500-504,520,530,532,588) (Software-Lizenz)
PK53S IRAT software bundle for systems, includes : KP220, KP520, KP530, KP588, KP750, KP770, KP880 (software license)
PK555 LTE RRM 3GPP 36.521-3 Release 8 TDD Bundle for single mode test cases and InterRATs WCDMA/GSM CMW-KC011/-KC012/-KC013
PK60 WLAN IEEE 802.11a/b/g/n SISO, Bluetooth® BR EDR, GPS, FM Stereo Radio, RF testing bundle,
PK65 Wlan Call Box Bundle, Including Measurements R&S?Cmw-Km650/651 And Signaling R&S?Cmw-Ks650/651 (Software License)
PK70 WiMAX call box bundle, including measurements R&S®CMW-KM700/701 and signaling R&S®CMW-KS700/701/702 (software license)
PK75 TD-SCDMA call box bundle, including measurements R&S®CMW-KM750/751 and signaling R&S®CMW-KS750 (software license)
PK80 CDMA2000® 1xRTT call box bundle, including measurements R&S®CMW-KM800 and signaling R&S®CMW-KS800/810 (software license)
PK88 CDMA2000® 1xEV-DO call box bundle, including measurements R&S®CMW-KM880 and signaling R&S®CMW-KS880/881/888/890 (software license)
PS275 CMW270 Basic Assembly (mainframe), 70 MHz to 3.3GHz (selection)
PS502 CMW500 Wideband Radio Communication Tester, Mainframe
PS503 R&S®CMW500 Basic Assembly (mainframe), 70MHz to 3.3GHz (selection)
PS503 CMW500 Mainframe
PS505 R&S®CMW500 Basic Assembly(mainframe), 70MHz to 3.3GHz (sel.)
PU010 Protocol test tools (Software maintenance license,12 months)
PU200 Protocol test, GSM GCF/PTCRB conformance test cases (Software maintenance license,12 months)
PU210 Protocol test, GSM stack (Software maintenance license,12 months)
PU400 Software maintenance license, protocol test, WCDMA GCF/PTCRB conformance test cases
PU410 Protocol test, WCDMA stack (Software maintenance license,12 months)
PU420 Software maintenance license, protocol test, WCDMA MLAPI R&D test szenarios
PU500 Protocol test, LTE GCF/PTCRB conformance test cases (Software maintenance license,12 months)
PU510 Protocol test, LTE stack (Software maintenance license,12 months)
PU520 Protocol test, LTE LLAPI and MLAPI R&D test scenarios (Software maintenance license,12 months)
PU810 Protocol test, C2K stack (Software maintenance license,12 months)
PU820 Protocol test, C2K MLAPI R&D test scenarios (Software maintenance license,12 months)
R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair. First year of repair coverage is provided by the 12-month new product warranty.
S052S Solid State Drive (SSD), H052S (sel.)
S100A Baseband Measurement Unit, with 1GByte digitizer memory, not installable post factory, R&S®CMW module H100A (selection)
S100D Baseband measurement unit, with 4GByte digitizer memory, not installable post factory, R&S®CMW module H100D (selection)
S100H Measurement Unit Advanced (MUA), H100H (sel.)
S550A CMW selection: H550A Baseband Interconnection Board (fixed link)
S550B CMW selection: H550B Baseband Interconnection Board (flexible link)
S550M Baseband interconnection, flexible link, for multibox/nonsignaling/signaling/IQ access,
S550N Baseband interconnection, flexible link H550N (sel.)
S570B RF Converter (TRX), not installable post factory, CMW module H570B (selection)
S570H RF Converter (TRX), BW 160 MHz, H570H (sel.)
S590A CMW selection: H590A RF Frontend Module
S590D RF Frontend, advanced functionality, not installable post factory,
S600A CMW500 selection: H600A Frontpanel Without Display/Keypad (contains DVI interface)
S600B CMW500 selection: H600B Frontpanel With Display/Keypad
S600D CMW270 selection: H600D Frontpanel With display/Keypad
WE1CMW500 Product Warranty plus 1 year Warranty Extension for CMW500 single channel. Including all repairs and all necessary calibrations in case of repair.
WE1CMW500 Product Warranty plus 1 year Warranty Extension for CMW500 dual channel. Including all repairs and all necessary calibrations in case of repair.
WE1CMW500 Product Warranty plus 1 year Warranty Extension for CMW500 triple channel. Including all repairs and all necessary calibrations in case of repair.
WE1CMW500 Product Warranty plus 1 year Warranty Extension for CMW500 4 channel. Including all repairs and all necessary calibrations in case of repair.
WE2CMW500 Product Warranty plus 2 year Warranty Extension for CMW500 4 channel. Including all repairs and all necessary calibrations in case of repair.
WE2CMW500 Product Warranty plus 2 year Warranty Extension for CMW500 triple channel. Including all repairs and all necessary calibrations in case of repair.
WE2CMW500 Product Warranty plus 2 year Warranty Extension for CMW500 dual channel. Including all repairs and all necessary calibrations in case of repair.
WE2CMW500 Product Warranty plus 2 year Warranty Extension for CMW500 single channel. Including all repairs and all necessary calibrations in case of repair.
WE3CMW500 Product Warranty plus 3 year Warranty Extension for CMW500 single channel. Including all repairs and all necessary calibrations in case of repair.
WE3CMW500 Product Warranty plus 3 year Warranty Extension for CMW500 dual channel. Including all repairs and all necessary calibrations in case of repair.
WE3CMW500 Product Warranty plus 3 year Warranty Extension for CMW500 triple channel. Including all repairs and all necessary calibrations in case of repair.
WE3CMW500 Product Warranty plus 3 year Warranty Extension for CMW500 4 channel. Including all repairs and all necessary calibrations in case of repair.
WE4CMW500 Product Warranty plus 4 year Warranty Extension for CMW500 4 channel. Including all repairs and all necessary calibrations in case of repair.
WE4CMW500 Product Warranty plus 4 year Warranty Extension for CMW500 triple channel. Including all repairs and all necessary calibrations in case of repair.
WE4CMW500 Product Warranty plus 4 year Warranty Extension for CMW500 dual channel. Including all repairs and all necessary calibrations in case of repair.
WE4CMW500 Product Warranty plus 4 year Warranty Extension for CMW500 single channel. Including all repairs and all necessary calibrations in case of repair.
XT015 Permanent CMW license: Development environment for CMW500



FAQ:

1.Can you ship order to Canada or Australia ?

Yes,we can .We send orders worldwide .

2. What delivery method do you use ? and delivery time ?

We can ship by EMS,DHL,FedEx,UPS,TNT with tracking number. Usual delivery time is 4-7 workdays.

3. What is your payment term?

100% T/T payment before shipment.

4. How can I ask any other question ?

You can contact us online or leave us messages below .

Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control 0

Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control 1

Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control 2

Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control 3

good price online

Products Details

Created with Pixso. Home Created with Pixso. Products Created with Pixso.
RF Communications Test Set
Created with Pixso. Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control

Rohde & Schwarz CMW500 Durable Wideband Radio Communication Tester with SCPI Remote Control

Brand Name: R&S
Model Number: CMW500
MOQ: 1 set
Price: Negotiation
Payment Terms: T/T
Detail Information
Place of Origin:
Germany
Brand Name:
R&S
Model Number:
CMW500
Product Name:
Wideband Radio Communication Tester
Condition:
Pre-Owned
Functions:
Tested, In Full Working Conditions
SCPI Remote Control:
LAN/GPIB
Signaling:
Functional Sample Testing
Minimum Order Quantity:
1 set
Price:
Negotiation
Payment Terms:
T/T
Supply Ability:
in stock
Highlight:

Durable Wideband Radio Communication Tester

,

Rohde & Schwarz CMW500

,

SCPI Remote Control Radio Communication Tester

Product Description

R&S Rohde And Schwarz CMW500 Wideband Radio Communication Tester

  • Brief Description of R&S Rohde And Schwarz CMW500

  • Future-ready test platform designed to handle all major technologies

  • In the fast-paced world of wireless communications, existing technologies are continuously being optimized and new standards are adopted. A tester designed for the future must therefore be able to handle tomorrow’s requirements today. Owing to its large transmit and receive bandwidths, a frequency range up to 6 GHz, exceptional measurement accuracy and support of a variety of applications, the R&S®CMW500 is clearly a safe investment.

  • The multitechnology platform supports GSM with EDGE Evolution, WCDMA up to HSPA+, CDMA2000® 1), TD-SCDMA, LTE TDD/FDD and several noncellular standards such as WLAN. Therefore, it is the ideal equipment for mobile phone testing. In the development and production of mobile phones in line with the TD-SCDMA (time division synchronous code division multiple access) standard, the R&S®CMW500 wideband radio communication tester offers comprehensive test and measurement capabilities.

  •

    Designed for high first pass yield
    The R&S®CMW500 has been specially designed for production applications: Top priority was placed on accuracy, repeatability and linearity. These parameters have a direct impact on production yield: The better the instrument’s performance in terms of these parameters, the lower the number of DUTs that are found to be faulty even though they comply with specifications.



    Significant reduction in test time owing to R&S®Multi-Evaluation measurement
    The R&S®CMW500 can perform various measurements (for example, spectrum emission mask, code domain power, error vector magnitude and more) in parallel on the same signal sample. This yields a drastic reduction in measurement time as compared to the conventional sequential approach.


    Shortest possible alignment times owing to R&S®Smart Alignment
    In the R&S®CMW500, predefined frequency/power sequences can be stored in list format exactly as done in the mobile phone’s chipset. After being started in sync, the mobile phone and the tester follow the sequence without requiring any further interaction. The calibration time during production can be reduced down to 10 % of the original value


    Reliable receiver test in nonsignaling and signaling mode
    Featuring single-ended BER and loop-based BER analysis, the R&S®CMW500 offers two alternatives for testing receiver quality in the non-signaling mode. Alternatively, the R&S®CMW500 offers a TD-SCDMA base station emulator to verify network entry and functional performance in signaling mode. BLER (block error rate) and BER (bit error rate) tests after connection can be used to verify the receiver performance in signaling mode.


    Dual-channel mode – two in one
    The R&S®CMW500 can be operated in either the singlechannel or the dual-channel mode. In the dual-channel mode, two mobile phones can be tested simultaneously yet fully independently of one another, even while applying different standards.


    TX measurements
    The implementation of the transmitter measurements in the R&S®CMW500 is based on the 3GPP TS 25.102 and 3GPP TS 34.122 test specifications. The following transmitter measurements are supported: ❙ Power measurements
    ❙ Spectrum measurements
    ❙ Modulation accuracy measurements
    The measurements can be performed in nonsignaling mode with any desired TD-SCDMA uplink signal. Plus, the “combined signal path” scenario allows RF measurements with signaling provided by the TD-SCDMA base station emulator to analyze the RF performance of the TD-SCDMA mobile phone in real operation.
  •

    Optimized handling for production test systems
    The R&S®CMW500 unites three basic functions in one box: RF generator, RF analyzer and signaling (network emulation). As a result, it can be flexibly used in all stages of production – from calibration and verification to functional testing. The extreme scalability, test speed and measurement accuracy translate into minimum test costs. The compact tester approach with SCPI remote control concept minimizes the effort involved in planning and upkeeping production test systems.
  •
    Key facts of CMW500 Wideband Radio Communication Tester
  • Multi-RAT signaling: LTE, WCDMA, GSM, WLAN, Bluetooth
  • LTE-Advanced: 8DL CC up to 4x4/8x2 MIMO fading, 2 UL CA
  • WLAN 11 a / b / g / n / ac / ax SISO and MIMO signaling test
  • Internal server for application testing
List of Options
0-C3 3 years of calibration coverage based on the R&S recommended calibration interval - includes test data.
0-C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data.
0-R3 Three years of depot repair coverage, including re-calibration if necessary to complete the repair.
0-R5 Five years of depot repair coverage, including re-calibration if necessary to complete the repair.
ACA1 DAkkS (formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/280/500 with one TRX (order only with device)
ACA2 DAkkS (formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500 with two TRX (order only with device)
ACA4 DAkkS (formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500 with four TRX (order only with device)
B100A CMW H100A Baseband Measurement Unit
B100AX2 Extra Baseband Measurement Unit, Retrofittable In R&S Service, Cmw Module H100a
B100D Extra Baseband Measurement Unit, with 4GByte digitizer memory, retrofittable in R&S service, R&S®CMW module H100D (hardware option)
B110A CMW H110A ARB+Realtime Baseband Generator Module
B110D Baseband Generator, with 4GByte ARB memory, retrofittable in R&S Service, R&S®CMW module H110D (hardware option)
B200A CMW H200A Signaling Unit Universal(SUU)
B210A G SM G PR S ED G E R elease 6 , sign alin g/n etw o rk em u latio n , b asic.
B220A CDMA2000® 1xRTT signaling module for SUU, retrofittable in R&S Service,
B230A CMW H230A 1xEV-DO Signalling Extension Module for H200A
B270A CMW H270A WiMAX Signaling Extension Module for H200A
B300A CMW H300A Signaling Unit Wideband (SUW)
B300Ax2 B300A CMW H300A Signaling Unit Wideband (SUW) (QTY 2)
B300B Signaling Unit Wideband (SUW), for WCDMA / LTE, R&S®CMW module H300B, retrofittable in Rohde & Schwarz service (hardware option)
B300Bx2 Signaling Unit Wideband (SUW), for WCDMA / LTE, R&S®CMW module H300B, retrofittable in Rohde & Schwarz service (hardware option) (qty 2)
B400B Audio Analyzer/Generator, For New Units And Units Delivered After September 2011, Retrofittable In R&S Service, Cmw Module H400b (Hardware Option)
B405A Speech Codec, Retrofittable In R&S Service, Cmw Module H405a (Hardware Option)
B450A Data application unit
B450B Data Application Unit, Retrofittable In R&S Service, R&S?Cmw Module H450b (Hardware Option)
B450D Data Application Unit, retrofittable in R&S service, R&S®CMW module H450D (hardware option)
B450H Data Application Unit H450H
B500I Signaling Unit Advanced (SUA), H500I (HW opt.)
B510A CMW H510A, four digital IQ interfaces (inputs/outputs/monitor)
B510F Four digital IQ interfaces, in/out/monitor, connectors 1 to 4, retrofittable in R&S service, R&S®CMW module H510F (hardware option)
B520A Digital I/Q 5 to 8 H520A
B520F Four digital IQ interfaces, in/out/monitor, connectors 5 to 8, retrofittable in R&S service, R&S®CMW module H520F (hardware option)
B555M Extension set for MultiCMW synchronisation board, required to synchronize 4 instruments, R&S®CMW module H555M (hardware option)
B570A CMW H570A RF converter module (TRX)
B570B CMW H570B RF converter module (TRX)
B570BX2 Extra Rf Converter (Trx), Retrofittable In R&S Service With Ucs, Cmw Module H570b
B570Bx4 CMW H570B RF converter module (TRX) (qty 4)
B570H Extra RF Converter (TRX), BW 160 MHz, H570H (HW opt.)
B571B RF Up-Converter (TX), retrofittable in R&S Service with UCS, CMW module H571B
B590A CMW H590A RF Frontend module
B590D Extra RF Frontend, advanced functionality, retrofittable in R&S Service with UCS,
B590Dx2 CMW H590A RF Frontend module (qty 2)
B612A CMW H612A IEEE Bus Interface Module (single connector)
B612B CMW H612B IEEE Bus Interface Module (dual connector)
B620A CMW H620A Digital Video Interface (DVI) Module (only required for units with display/ke
B660A CMW H660A Option Carrier
B660H Option Carrier, H660H (hw opt.)
B661A CMW H661A Ethernet Switch Board
B661H Ethernet Switch, H661H (hw opt.)
B668A Control and sync interface, allows to control the R&S®CMWS, retrofittable in R&S Service, CMW module H668A (hardware option)
B690A CMW H690A OCXO Module
B690B CMW H690B OCXO Module (highly stable)
C3 3 years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 2 additional depot calibration(s).
C5 Five years of calibration coverage based on the R&S recommended calibration interval - includes test data. The first calibration is included with product delivery with 4 additional depot calibration(s).
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 single channel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 dual c hannel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 triple channel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC2CMW500 Calibration Coverage 2 years from delivery for CMW500 4 chan nel. Including 1 scheduled calibration according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 4 chan nel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 triple channel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 dual c hannel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC3CMW500 Calibration Coverage 3 years from delivery for CMW500 single channel. Including 2 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 single channel. Including 1 scheduled calibration according to the 24 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 dual c hannel. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 triple channel. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC4CMW500 Calibration Coverage 4 years from delivery for CMW500 4 chan nel. Including 3 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 4 chan nel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 triple channel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 dual c hannel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CC5CMW500 Calibration Coverage 5 years from delivery for CMW500 single channel. Including 4 scheduled calibrations according to the 12 month recommended calibration interval and all necessary calibrations in case of repair or option upgrade.
CMW-KM721 Bluetooth LE R5 , TX measurements
CMW-KS611 Bluetooth Low Energy signaling / direct testmode support via USB interface,basic functionality
CMW-KS721 Bluetooth LE R5 DTM
CMWDKD03 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/280/500, 1 RF channel / 3.3GHz (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD06 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/280/500, 1 RF channel / 6GHz (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD33 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500, 2 RF channels / 3.3GHz each (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD36 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500, 2 RF channel / 3.3GHz and 6GHz (order only with device) [PhOut ann. w.subst. (81)]
CMWDKD66 DAkks(formerly DKD) calibration according to ISO 17025 and ISO 9000, for R&S®CMW270/500, 2 RF channels / 6GHz each (order only with device) [PhOut ann. w.subst. (81)]
CMWU5035 Basic assembly change-over kit 12,FMR9 FMR11 PS505Var04/06 + SSD
CMWU5055 Basic assembly change over kit
CMWU579D Change-over 2x TRX160 incl. FE-Advanced
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 0 scheduled calibrations according to the 24 month recommended cali
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calib
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calibrat
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calib
CW1CMW500 Product Warranty plus 1 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 12 month recommended calibration
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended calibratio
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended cali
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended calibra
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 12 month recommended cali
CW2CMW500 Product Warranty plus 2 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 24 month recommended calib
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 1 scheduled calibration according to the 24 month recommended calib
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended cali
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended calibra
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended cali
CW3CMW500 Product Warranty plus 3 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 3 scheduled calibrations according to the 12 month recommended calibratio
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 4 channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended calibratio
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 triple channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended cali
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 dual channel. Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended calibra
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 4 scheduled calibrations according to the 12 month recommended cali
CW4CMW500 Product Warranty plus 4 year Warranty Extension and Calibration Coverage for CMW500 single channel . Including all repairs, all necessary calibrations in case of repair/option upgrade and 2 scheduled calibrations according to the 24 month recommended cali
DCV-2 Documentation of calibration values
DCV-ZP Printout of DCV (additional, in combination with DCV-Option only)
DKD03 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/280/500,
DKD06 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/280/500,
DKD33 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/500,
DKD36 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/500,
DKD66 DKD (ISO17025) calibration incl. ISO 9000 calibration for R&S®CMW270/500,
H051F Controller FMR9/5
H052F Harddisk (standard)
H054B Power Supply
H055H Motherboard
H090A Reference
H100A BB Measurement
H110A BB Generator
H200 Hardware
H300B Signaling
H500I Signal Unit
H550A CMW_GPRF_Gen
H550M Baseband interconnection, flexible link, for multibox/non-signaling/signaling/IQ access, retrofittable in R&S service with UCS
H550M BB Flexible Link
H570B RF TRX
H590A CMW_GSM_Meas
H590D RF Front End
H600A CMW_LTE_eNodeB_Meas
H600B FPW/MMI
H605A Front Panel IP
H605A Front Panel Board IP
H612A IEEE
H612B CMW_LTE_Sig
K998 Enable customer path correction (software license)
KA065 Enabling test software for WLAN Offloading (software license)
KA100 Enabling of IP-Data interface for IPV4 (software license)
KA150 Extension of IP-Data interface for IPV6 (software license)
KA700 Permanent CMW license: Application Enabler, extension Convergence Sublayer IPv4, WiMAX(IEEE802.16e)
KAA10 Supl Serving Scenario (software license)
KAA20 Ims Basic Service
KAA20 Ims Basic Service (Software License)
KAC06 OMA SUPL 1.0 test cases (software license)
KAF45 at&t IOT SUPL 2.0 test cases (software license)
KAF46 at&t IOT VoLTE, test cases (software license)
KAF73 VzW IOT IMS VoIP test cases (software license)
KAF74 VzW IOT IMS Rich Communication Suite video calling + enhanced address book/presence test cases (software license)
KAF75 VzW IOT LTE IMS registration and registration retry, testcases (software license)
KB036 Permanent CMW license : Extended Frequency Range 3.3 GHz to 6 GHz
KB036 x 4 (PK364) Extended frequency range, 3.3 GHz to 6 GHz, per RF converter
KC001 LTE RRM 3GPP 36.521-3 Phase 1 FDD Test Case Executables (software license)
KC002 LTE RRM 3GPP 36.521-3 FDD InterRAT WCDMA Test Case Executables (software license)
KC003 LTE RRM 3GPP 36.521-3 FDD InterRAT GSM Test Case Executables (software license)
KC004 LTE RRM 3GPP 36.521-3 FDD InterRAT 1xEV-DO Test Case Executables (software license)
KC005 WCDMA RRM 3GPP 34.121-8 InterRAT FDD LTE test case executables (software license)
KC006 LTE RRM 3GPP 36.521-3 Release 9 FDD test case executables (software license)
KC007 LTE RRM 3GPP 36.521-3 Release 9 FDD IRAT WCDMA test case executables (software license)
KC008 LTE RRM 3GPP 36.521-3 Release 9 FDD IRAT GSM test case executables (software license)
KC009 LTE RRM 3GPP 36.521-3 release 8 FDD single mode mit LTE BW 5MHz test executables (software license) [New in production (20)]
KC010 LTE RRM 3GPP 36.521-3 FDD TDD HO test case executables (software license)
KC011 LTE RRM 3GPP 36.521-3 Prio 1 TDD test case executables (software license)
KC012 LTE RRM 3GPP 36.521-3 TDD InterRAT WCDMA test case executables (software license)
KC013 LTE RRM 3GPP 36.521-3 TDD InterRAT GSM test case executables (software license)
KC016 LTE RRM 3GPP 36.521-3 Release 9 TDD test case executables (software license)
KC018 LTE RRM 3GPP 36.521-3 Release 9 TDD IRAT WCDMA test case executables (software license)
KC020 LTE-A RRM 3GPP 36.521-3 release 10CA FDD single mode test case executables Enhancement Release 10 (software license)
KC021 LTE-A RRM 3GPP 36.521-3 release 10 CA FDD InterRAT WCDMA test cases executables (software license)
KC024 LTE RRM 3GPP 36.521-3 Release 9 IRAT FDD-TDD test case executables
KC026 LTE-A RRM 3GPP 36.521-3 release 10 CA TDD single mode test cases executables (software license)
KC050 WCDMA RRM 3GPP 34.121-3 non InterRAT test case executables (software license)
KC052 WCDMA RRM 3GPP 34.121-3 InterRAT GSM test case executables (software license)
KC060 LTE RRM 3GPP TS36.521-3 release 8 TDD IRAT TD-SCDMA downlink only test case executables (software license)
KC061 LTE RRM 3GPP TS34.122-8 release 8 TDD IRAT TD-SCDMA test case executables (software license)
KC201 GSM CS TC pack 1, Sec. 11.x, 12.2, 15.1, 17.1/2, 19.1/3, 32.11/12, 26.2-5 (software license)
KC205 GSM CS TC Pack 5, Sec. 26.16/17/19, AMR Signalling - speech version 3, 4, 5 (software license)
KC206 GSM CS TC Pack 6, Sec. 29.3, Non transparent data services(RLP tests) (software license)
KC207 GSM CS TC Pack 7, Sec. 31.x, 34.x, Supplementary services, Short message service (SMS) (software license)
KC208 GSM CS TC Pack 8, Sec. 70.x, Location Based services (software license)
KC209 GSM CS TC Pack 9, Sec. 27.x, 33.6, Testing of the SIM/ME interface (software license)
KC210 GSM TC PACK Dual SIM testing (software license)
KC211 GSM TC PACK, A5/4, GEA4 and USIM related testcases (software license)
KC212 GSM Dual SIM test case package 2 (software license)
KC214 GSM minimum performance testcase package (software license)
KC221 GSM GPRS TC Pack 1, Sec. 15.6, 20.22, 41.x, GPRS timing, GPRS Paging, GPRS cell selection and reselection, TBF establ./release (software license)
KC222 GSM GPRS TC Pack 2, Sec. 42.x, 43.x, Test of Medium Access Control (MAC) and RLC Test Cases (software license)
KC223 GSM GPRS TC Pack 3, Sec. 44.x, GPRS mobility management (software license)
KC231 GSM EGPRS TC Pack 1, Sec. 51.x, 52.x, 53.x, EGPRS Paging, TBF establ./release, EGPRS Test of MAC prot., EGPRS RLC prot. (software license)
KC232 GSM EDGE EVO TC Pack 1, Sec. 58b.x, Downlink Dual Carrier test cases (software license)
KC233 GSM TC PACK eCALL (software license)
KC241 GSM DTM TC Pack 1, Sec. 41.x, 44.x, 47.x, 51.x, 53.x, Dual Transfer Mode test cases (software license)
KC280 GSM conformance test cases VAMOS (software license)
KC401 3GPP 34.123 Test Cases R99, Single Mode,NAS RRC IDLE RLC MAC RAB SMS WI-010,012
KC402 WCDMA test cases R99 IRAT, 3GPP 34.123 WI-010, 012, 017 (software license)
KC403 3GPP 34.123 Test Cases A-GPS WI-015, R99 (software license)
KC404 WCDMA test cases Rel.5 HSDPA, 3GPP 34.123 WI-013, 014 SM and IRAT
KC405 WCDMA test cases, Rel.6 Enhancements,HSDPA and HSUPA IRAT, 3GPP 34.123 WI-024, 025
KC406 WCDMA test cases R99,R5, 3GPP 34.123 WI-047,051,052,053, FDD Interband Handover (software license)
KC408 WCDMA test cases, PTCRB RFT067 and RFT080 (software license)
KC420 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 Ciphering GCF WI-101
KC421 Permanent CMW License: WCDMA R7 Test Cases 3GPP 34.123 CPC Tests GCF WI-070
KC422 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 64QAM tests
KC423 Permanent CMW license: WCDMA R7 test cases 3GPP 34.123 L2 enhancements tests
KC424 3GPP 34.123 test cases, Enhanced CELL_FACH Down Link (software license)
KC425 WCDMA R7 test cases 3GPP 34.123 MIMO, WI-067 & WI-118 (software license)
KC426 WCDMA R7 Test Cases 3GPP 34.123 16QAM UL, WI-112 (software license)
KC427 3GPP 34.123 test cases CS Voice over HSPA R8 (software license)
KC428 WCDMA test cases, Rel.8 Dual Carrier, 3GPP 23.123 (software license)
KC429 WCDMA Conformance test cases 3GPP 34.123 R8 ENH L2 UL, WI-130 and ENH CELL FACH UL, WI-131 (software license)
KC430 WCDMA Rel. 7 NISPC (Network Initiated Secondary PDP Context Activation), WI-140 test cases (software license)
KC431 WCDMA Rel.8 64QAM+MIMO test cases (software license)
KC432 WCDMA test cases ETWS, (earthquake Tsunami warning system), 3GPP 34.123, WI-127 (software license)
KC433 WCDMA test cases eCall, 3GPP 34.123 (software license)
KC434 WCDMA Rel.8 HNB (Home NodeB) test cases (software license)
KC436 WCDMA Conformance test cases, Rel.9 DC-HSUPA, 3GPP 34.123 (software license)
KC501 LTE 3GPP 36.523 FDD TTCN-3 Test Cases GCF priority 1/2 (software license)
KC502 LTE FDD Rel.8/9 conformance test cases TEIR8/9-enhancements (software license)
KC503 LTE 3GPP 36.523 FDD TTCN-3 test cases, GCF priority 3/4 (software license)
KC504 LTE FDD conformance test cases IMS emergency call over LTE (software license)
KC506 LTE 3GPP 36.523 FDD-GERAN TTCN-3 test cases, GCF priority 3/4 (software license)
KC507 LTE 3GPP 36.523 FDD-UTRAN TTCN-3 Test Cases GCF priority 1/2 (software license)
KC508 LTE 3GPP 36.523 FDD-UTRAN TTCN-3 test cases, GCF priority 3/4 (software license)
KC511 LTE Conformance Test Cases, FDD/TDD Dual mode Rel.9 (software license)
KC512 LTE 3GPP 36.523 R9 FDD-UTRAN TTCN-3 IRAT test cases GCF WI-167 (software license)
KC514 LTE 3GPP 36.523 ZUC algorithm TTCN-3 test cases for R&S®CMW500 GCF WI-173 (software license)
KC515 LTE FDD Rel. 10 Conformance Test Cases: Technical small enh. and improvements (software license)
KC516 LTE FDD Rel. 10 Conformance Test Cases: Carrier Aggregation (software license)
KC520 LTE 3GPP 34.229 IMS-CC and MTSI TTCN-3 test cases for R&S®CMW500, TP92 (software license)
KC521 LTE 3GPP 34.229 SMS over IMS TTCN-3 test cases for R&S®CMW500, TP92 (software license)
KC535 LTE FDD conformance test cases LTE positioning protocol (LPP) (software license)
KC551 LTE 3GPP 36.523 TDD TTCN-3 Test Cases, GCF priority 1/2 (software license)
KC552 LTE TDD Rel.8/9 conformance test cases TEIR8/9-enhancements (software license)
KC553 LTE 3GPP 36.523 TDD TTCN-3 test cases, GCF priority 3/4 (software license)
KC556 LTE 3GPP 36.523 TDD-GERAN TTCN-3 test cases GCF priority 1/2, WI-097 (software license)
KC558 LTE 3GPP 36.523 TDD-UTRAN TTCN-3 test cases GCF priority 1/2, WI-096 (software license) [New in production (20)]
KC563 LTE 3GPP 36.523 TDD-TDSCDMA TTCN-3 Testfälle GCF Prio 1/2 for R&S®CMW500(TP92), WI-096/099 (software license)
KC564 LTE 3GPP 36.523 TDD-TDSCDMA TTCN-3 test cases for R&S®CMW500 (TP92) GCF WI-169 (software license)
KC566 LTE TDD Rel. 10 Conformance Test Cases: Carrier Aggregation (software license)
KC567 LTE 3GPP 36.523 TDD-TDSCDMA TTCN-3 test cases GCF Prio 1/2 for Datang (TP135), WI-096/099 (software license)
KC571 LTE FDD InterRAT Conformance test cases, 3GPP2 HRPD GCF Prio 1/2, WI-088 (software license)
KC572 LTE FDD InterRAT Conformance test cases 3GPP2 1xRTT GCF Prio 1/2, WI-088 (software license)
KC573 LTE FDD InterRAT R9 enhancements, Conformance Test Cases 3GPP2 CDMA2000®, WI-159 (software license)
KC585 LTE TDD conformance test cases LTE positioning protocol (LPP) (Software-Lizenz)
KE100 Basic Fading Support, Awgn Generator (Software License)
KE200 GSM Fading profiles TS45.005 C.3 (RAx, HTx 6tap, TUx 6tap, EQx, TIx) (software license)
KE400 WCDMA Fading profiles TS25.101 B.2.x (B2.2 table B.1, C, D, B2.5, B2.6) (software license)
KE500 Basic Fading Profiles Ts36.521 (B1.1, B2.1, B2.3, B2.4, B3) (Software License)
KE501 LTE fading profiles MIMO 4x2 from TS36.521 B2.3 (software license)
KE750 TD-SCDMA fading profiles from TS34.122 Annex D.2 (excerpt) (software license)
KE800 C2K/EV-DO fading profiles from C.S0032-C6.4.1 and C.S0011-C6.4.1 (software license)
KF001 LTE RRM R&D Scenarios FDD RSCP Measurement, Mobility, RRC Connection Control (software license)
KF200 GSM MLAPI example scenarios (software license)
KF400 WCDMA MLAPI example scenarios (software license)
KF401 WCDMA MLAPI Scenarios. Single Cell HSDPA/HSUPA, Dual Cell Soft HO HSDPA
KF402 WCDMA MLAPI Scenarios. Dual Cell HHO and SHO HSUPA, Triple Cell SHO HSDPA, Quad Cell SHO
KF411 WCDMA MLAPI scenarios, Public Warning System (PWS) (software license)
KF414 WCDMA MLAPI scenarios for CSG and Home NodeB (software license)
KF420 WCDMA-GSM handover, MLAPI test scenarios (software licnense)
KF428 Dual SIM Dual Mode Test Case Pack 1, Standalone TCs (software license)
KF429 Dual SIM Dual Mode Test Case Pack 2, Multi CMW TCs (software license)
KF431 WCDMA IOT scenarios AT&T IOT RRC inkl.IRAT test plan (software license)
KF432 WCDMA IOT scenarios AT&T IOT HSDPA test plan (software license)
KF433 WCDMA IOT scenarios AT&T IOT AMR test plan (software license)
KF434 WCDMA IOT scenarios AT&T IOT network selection test plan (software license)
KF435 WCDMA IOT scenarios AT&T IOT UMTS Multi RAB test plan (software license)
KF436 WCDMA IOT scenarios AT&T IOT call processing test plan (software license)
KF437 WCDMA IOT scenarios ENS test plan (software license)
KF438 WCDMA IOT scenarios AT&T IOT EONS test plan (software license)
KF440 Release 7 HSPA, WCDMA at&t test scenarios (software license)
KF441 WCDMA IOT at&t fast dormancy test plan (software license)
KF451 WCDMA R7 MLAPI scenarios L2 enhancements (software license)
KF452 WCDMA HSPA+ MLAPI scenarios, CPC, enh. CELL_FACH and CS Voice HSPA, 16 QAM UL
KF453 WCDMA HSPA+ MLAPI scenarios, package 3 (software license)
KF454 WCDMA HSPA+ scenarios Pack 4 (software license)
KF500 LTE MLAPI example scenarios (software license)
KF502 Permanent CMW License: LTE FDD MLAPI Basic Procedures
KF503 LTE FDD MLAPI EPS Bearer Verification
KF504 Intra-LTE Handover and Mobility
KF505 LTE MLAPI scenarios package 4, IO(D)T and Field Trial Tests (software license)
KF506 LTE FDD LLAPI PHY test scenarios package 1 (software license)
KF507 LTE FDD LLAPI PHY Test Scenarios Pack 2 (software license)
KF511 LTE Rel.9 CMAS MLAPI scenarios, Commercial Mobile Alert System (software license)
KF512 LTE Rel.8 LLAPI PHY Scenarios TTI Bundling/SPS (software license)
KF513 LTE Rel. 10 PHY/MAC scenarios FDD/TDD (software license)
KF514 LTE Rel. 10 MLAPI scenarios, Carrier Aggregation, incl. Mobility (software license)
KF515 LTE Rel.10 MLAPI scenarios eICIC (software license)
KF520 LTE MLAPI IRAT Handover GSM test scenarios (software license)
KF521 LTE-GSM Single Radio Voice Call Continuity (SRVCC) H/O, MLAPI scenarios (software license)
KF530 LTE MLAPI IRAT Handover WCDMA test scenarios (software license)
KF531 LTE-WCDMA Single Radio Voice Call Continuity (SRVCC) H/O, MLAPI scenarios (software license)
KF532 LTE-WCDMA-GSM Triple RAT Handover MLAPI scenarios (software license)
KF540 LTE FDD IOT scenarios, MM Mobility (software license)
KF541 LTE FDD IOT scenarios, RRC & Encryption (software license)
KF542 LTE FDD IOT scenarios, Intra-RAT Mobility Idle (software license)
KF543 LTE FDD IOT scenarios, Intra-RAT Mobility Active (software license)
KF544 LTE FDD IOT scenarios, Inter-Rat Mobility Idle (software license)
KF545 LTE FDD IOT scenarios, Inter-RAT Mobility Active (software license)
KF546 LTE IOT scenarios AT&T IOT ENS Test Plan (software license)
KF547 LTE IOT scenarios, AT&T IOT EONS test plan (software license)
KF548 LTE IOT scenarios, AT&T IOT Circuit Switch Fall Back test plan (software license)
KF549 LTE IOT scenarios, AT&T IOT AGPS E911 test plan (software license)
KF556 LTE TDD LLAPI scenarios (software license)
KF570 LTE FDD IOT scenarios, Data Retry (software license)
KF571 LTE FDD 3GPP Band 13 Signaling, Conformance Batch #1 (software license)
KF572 LTE FDD 3GPP Band 13 Signaling, Conformance Batch #2 (software license)
KF573 LTE FDD 3GPP Band 13 Signaling, Conformance Batch #3 (software license)
KF574 LTE FDD 3GPP Band 13 to CDMA Inter-RAT performance tests (software license)
KF575 eHRPD Compliance Tests (software license)
KF576 LTE FDD IOT scenarios, SMS over IMS (software license)
KF577 LTE FDD IOT scenarios, Supplementary Signaling Conformance test plan
KF578 LTE IOT szenarien, VzW IOT LTE CDMA IRAT operations test plan (software license)
KF579 LTE IOT szenarien VzW IOT SVLTE IRAT testplan (software license)
KF588 LTE FDD MLAPI scenario package 1 Handover from LTE FDD to CDMA2000
KG200 Permanent CMW licence: Generator, GSM/GPRS/EDGE, Downlink
KG400 Permanent CMW licence: Generator, WCDMA, Downlink
KG401 Permanent CMW license: Generator, WCDMA HSPA extension of CMW-KG400, Downlink
KG800 CDMA2000® 1xRTT, generator, forward link (software license)
KM0012 Tx Measurement, Multi Evaluation List Mode / Melm (Software License)
KM010 Permanent CMW license: FTT spectrum analyzer
KM011 Permanent CMW license: TX measurement "IQ Versus Slot", Uplink
KM012 Permanent CMW license: TX measurement Multi Evaluation List Mode
KM050 IP based measurements, in combination with technology specific IP data enabling
KM051 Ip Traffic Analysis (Software License)
KM200 Permanent CMW license: TX Measurement, GSM/GPRS/EDGE, Uplink
KM201 GSM Release 7 EGPRS2-A, TX measurement, uplink (software license)
KM400 Permanent CMW license: TX Measurement, WCDMA, uplink
KM401 Permanent CMW license: TX measurement, WCDMA HSPA, extension of CMW-KM400, Uplink
KM403 Permanent CMW license: TX measurement, WCDMA HSPA+ extension of CMW-KM401, Uplink
KM405 WCDMA Release 9 HSPA+, TX measurement, uplink (software license)
KM500 Permanent CMW license: TX measurement LTE FDD, Uplink
KM502 LTE FDD Release 10 UL CA, TX measurement, Uplink (software license)
KM550 LTE TDD (TD-LTE) Release 8, TX measurement, uplink (software license)
KM552 LTE TDD Release 10 UL CA, TX measurement, Uplink (software license)
KM610 Permanent CMW license: TX measurement, Bluetooth
KM611 Bluetooth® Low Energy, TX measurement, (software license)
KM645 FM Stereo Radio, TX measurement, (software license)
KM650 Permanent CMW license: TX Measurement WLAN (IEEE 802.11a/b/g)
KM651 WLAN IEEE 802.11n SISO, TX measurement, (software license)
KM652 WLAN IEEE 802.11n MISO, TX measurement (software license)
KM653 WLAN IEEE 802.11n MIMO, switched TX measurement (software license)
KM655 WLAN IEEE 802.11p, TX measurement (software license)
KM656 WLAN IEEE 802.11ac SISO, Tx measurement (software license)
KM700 Permanent CMW license: TX Measurements, Mobile WiMAX (IEEE 802.16e)
KM701 Permanent CMW license: TX measurement, extension for R&D applications, WiMAX(IEEE802.16e), Wave 1
KM750 Permanent CMW license: TX Measurement, TD-SCDMA, uplink
KM751 TD-SCDMA enhancement, TX measurement, Uplink (software license)
KM800 Permanent CMW license: TX Measurement, CMDA2000® 1xRTT, Reverse Link
KM880 Permanent CMW license: TX Measurement, 1xEV-DO, Reverse Link
KN500 LTE FDD Release 8/9, eNode B TX measurement, Downlink (software license)
KN550 LTE TDD Release 8/9, eNode B TX measurement, Downlink (software license)
KO410 WCDMA IOT IRAT HO protocol tests (software license)
KO420 WCDMA IOT NTT DOCOMO CELL BARR/AREA MAIL test plan (software license)
KO421 WCDMA RE-ESTS/RE-SEL/REL test plan (software license)
KO422 WCDMA IOT NTT DOCOMO SMS/SS/EUL/OTHER test plan (software license)
KO423 WCDMA IOT NTT DOCOMO handover/cm test plan (software license)
KO424 WCDMA IOT NTT DOCOMO status CHG/PRES test plan (software license)
KO425 WCDMA IOT NTT DOCOMO TX DIVERSITY test plan (software license)
KO426 WCDMA IOT NTT DOCOMO VIDEO/UDI/LCS test plan (software license)
KO427 LTE IOT DCM Docomo RC Feature List Test plan (software license)
KO431 WCDMA IOT scenarious AT&T IOT RRC incl. IRAT test plan, including source code (software license)
KO432 WCDMA IOT scenarious AT&T IOT HSDPA test plan, including source code (software license)
KO433 WCDMA IOT scenarious AT&T IOT AMR test plan, including source code (software license)
KO434 WCDMA IOT scenarious AT&T IOT network slection test plan, including source code (software license)
KO435 WCDMA IOT Szenarien AT&T IOT UMTS multi RAB test plan included source code (software license)
KO436 WCDMA IOT Szenarien AT&T IOT call processing test plan included source code (software license)
KO437 WCDMA IOT Szenarien ENS test plan included source code (software license)
KO438 WCDMA IOT scenarios AT&T IOT EONS test plan included source code (software license)
KO441 WCDMA IOT at&t fast dormancy test plan incl. source code (software license)
KO460 WCDMA HSPA+ IOT t-mobile US package 1 protocol tests (software license)
KO461 WCDMA HSPA+ IOT t-mobile US package 2 protocol tests (software license)
KO480 WCDMA IOT scenarios CHINA-UNICOM IOT 3G functional test plan (software license)
KO481 WCDMA IOT scenarios CHINA-UNICOM IOT network selection & reselection test plan (software license)
KO482 WCDMA IOT scenarios CHINA-UNICOM IOT AMR CALL processing test plan (software license)
KO483 WCDMA IOT scenarios CHINA-UNICOM IOT SMS & SUPPLEMENTARY Service test plan (software license)
KO484 WCDMA IOT scenarios CHINA-UNICOM IOT MULTIRAB test plan (software license)
KO485 WCDMA IOT Szenarien CHINA-UNICOM IOT INTERRAT test plan (software license)
KO486 WCDMA IOT Szenarien CHINA-UNICOM IOT HSXPA test plan (software license)
KO487 WCDMA IOT Szenarien CHINA-UNICOM IOT HSPA+ test plan (software license)
KO500 LTE IOT at&t femto cell protocol tests (software license)
KO501 LTE IOT at&t cell broadcast protocol tests (software license)
KO502 LTE IOT at&t Femto cell protocol tests incl. source code (software license)
KO503 LTE IOT at&t Cell Broadcast protocol tests incl. source code (software license)
KO504 LTE IOT at&t IPV6 IRAT Protocol Tests (software license)
KO510 LTE IOT scenarios KDDI IOT test plan (software license)
KO511 LTE IOT scenarios KDDI IOT InterRAT eHRPD test plan (software license)
KO512 LTE IOT szenarien KDDI IOT CSFB 1xRTT Testplan (software license)
KO513 LTE IOT KDDI LTE CA/TD-LTE IRAT protocol tests (software license)
KO515 LTE FDD IOT KDDI test plan including source code (software license)
KO516 LTE FDD IOT KDDI IRAT test plan including source code (software license)
KO517 LTE FDD IOT KDDI CSFB 1xRTT test plan including source code (software license)
KO520 LTE IOT NTT DOCOMO emergency call test plan (software license)
KO521 LTE FDD IOT NTT DOCOMO BARRED/AREA MAIL test plan (software license)
KO522 LTE FDD IOT NTT DOCOMO reselect and measurement test plan (software license)
KO523 LTE FDD IOT NTT DOCOMO HO redirection and re-establishment test plan (software license)
KO524 LTE FDD IOT NTT DOCOMO inter-rat test plan (software license)
KO525 LTE FDD IOT NTT DOCOMO band 19/21 test plan (software license)
KO526 LTE INTER-RAT signalling recovery NTT Docomo LTE test plan (software license)
KO531 LTE IOT at&t VoLTE protocol tests (software license)
KO532 LTE IOT at&t SRVCC protocol tests (software license)
KO533 LTE IOT at&t advanced network selection (>2 CMW) protocol tests (software license)
KO534 LTE IOT at&t Rel 10 carrier aggregation protocol tests (software license)
KO535 LTE IOT at&t VoLTE protcol tests incl. source code (software license)
KO536 LTE IOT at&t SRVCC protocol tests inkl. source code (software license)
KO537 LTE IOT at&t advanced network selection (> 2 CMW) protocol tests incl. source code (software license)
KO538 LTE IOT at&t Rel10 carrier aggregation protocol tests incl. source code (software license)
KO539 LTE IOT at&t E911 protocol tests (software license) [New in production (20)]
KO540 LTE FDD IOT scenarious MM mobility including source code (software license)
KO541 LTE FDD IOT scenarious RRC & encryption including source code (software license)
KO542 LTE FDD IOT scenarious Intra-RAT mobility Idle including source code (software license)
KO543 LTE FDD IOT scenarious Intra-RAT mobility active including source code (software license)
KO544 LTE FDD IOT scenarious Intra-RAT mobility idle including source code (software license)
KO545 LTE FDD IOT scenarious Intra-RAT mobility active including source code (software license)
KO546 WCDMA IOT scenarious AT&T IOT ENS test plan including source code (software license)
KO547 LTE IOT scenarious AT&T IOT EONS test plan including source code (software license)
KO548 LTE IOT scenarious AT&T IOT circuit switch fall back test plan including source code (software license)
KO549 LTE IOT scenarious IOT AT&T LTE AGPS E911 test plan including source code (software license)
KO550 LTE FDD IOT T-Mobile LTE test plan (software license)
KO551 LTE FDD IOT T-Mobile IRAT test plan (software license)
KO552 LTE FDD IOT T-Mobile IMS test plan (software license) [New in production (20)]
KO561 LTE IOT T-Mobile US package 1 protocol tests (software license)
KO562 LTE IOT t-mobile US package 2 protocol tests (software license)
KO563 LTE IOT t-mobile US package 3 protocol tests (software license)
KO570 LTE FDD IOT scenatrios, data retry tor multimode devices (software license)
KO571 LTE IOT VzW interband protocol tests (software license)
KO572 LTE IOT VZW E911 for VoLTE capable Devices Section 5 - C-Plane Fallback Protocol Tests (software license)
KO574 LTE IOT VZW E911 for VoLTE capable Devices Section 2 System Selection Protocol Tests (software license)
KO575 VzW IOT E911 for VoLTE capable Devices Section 3 Calling features and location determination protocol Tests (software license)
KO577 LTE IOT VzW SVD interband protocol tests (software license)
KO578 LTE IOT VZW CMAS Protocol Tests (software license)
KO580 LTE IOT Szenarien, CMCC IOT Mobility test plan (software license)
KO581 LTE IOT scenarios, CMCC IOT Mobility test plan (software license)
KO590 LTE IOT Telus roaming protocol tests (software license)
KP040 CMWcards Signaling Tester framework (software license)
KP080 Permanent CMW license: Protocol tester framework. Network emulation
KP200 GSM InterRAT MLAPI Programming Interface (software license)
KP220 GSM stack extension GSM/GPRS/EGPRS (software license)
KP280 GSM stack extension VAMOS (software license)
KP400 Permanent CMW license: WCDMA MLAPI interface for netwerk emulation
KP401 Permanent CMW licence:WCDMA CPC extension of API interfaces
KP402 Permanent CMW license: WCDMA 64 QAM extension of API interfaces
KP403 Permanent CMW license: WCDMA Downlink L2 Enhancements, extension of API interfaces
KP404 WCDMA enhanced CELL_FACH extension of the API interfaces (software license)
KP405 Permanent CMW license: WCDMA MIMO 2x2 extension of API interfaces for Tx diversity and spatial multiplexing
KP406 WCDMA R7 UL 16 QAM extension of API interfaces (software license)
KP407 WCDMA CS-VOICE HSPA extension of API interface (software license)
KP408 WCDMA Stack Extension R8 Dual Carrier HSDPA (software license)
KP409 WCDMA Stack Extension R8 Enhancements (software license)
KP410 WCDMA Rel.9 DC HSDPA + MIMO2x2 stack extension, Dual Carrier + MIMO2x2 CAT28 (software license)
KP411 WCDMA Rel.9 DC HSUPA stack extension, Dual Carrier HSUPA (software license)
KP420 WCDMA/GSM Handover Signaling Extension (software license)
KP440 WCDMA Stack extension R99/R4/R5/R6 (software license)
KP451 3GPP 34.123, Development environment ETSI ATS R3, WI-010, 012, 015, 017 (software license)
KP452 3GPP 34.123 Development environment ETSI ATS R5 WI-013,014 (software license)
KP453 3GPP 34.123 Development Environment ETSI ATS R6 WI-024,025,049 (software license)
KP454 3GPP 34.123, Development Environment ETSI ATS R7 WI-067, 068, 069, 070, 101
KP455 Development environment ETSI ATS R8 (software license)
KP500 Permanent CMW license: LTE FDD MLAPI interface for network emulation
KP501 Permanent CMW license: LTE FDD LLAPI interface for network emulation
KP502 Permanent CMW license: LTE FDD virtual physical layer with SW interface to device under test
KP505 LTE Stack Extension FDD mode (software license)
KP510 Permanent CMW license: LTE FDD MIMO 2x2 extension of API interfaces for
KP511 LTE MIMO 4x2 signaling extension (software license)
KP514 LTE Circuit switched voice fallback stack extension (software license)
KP520 LTE/GSM Handover signaling extension (software license)
KP530 LTE/WCDMA Handover signaling extension (software license)
KP542 RRM extension for MLAPI (software license)
KP550 LTE TDD Stack extension
KP563 LTE TTCN-3 Programming Interface for 3GPP 36.523 Test Cases (software license)
KP564 LTE TTCN-3 programming interface for 3GPP 36.523 IRAT Test Cases (software license)
KP565 LTE R9 TTCN-3 development environment (software license)
KP566 LTE R8 TTCN-3 API for 3GPP 36.523 IRAT TD-SCDMA Test Cases for R&S®CMW500 (TP92) (software license)
KP567 LTE R8 TTCN-3 API for 3GPP 36.523 IRAT TD-SCDMA Test Cases for Datang (TP135) (software license)
KP569 LTE R10 TTCN-3 API extension for 3GPP 36.523 Test Cases (software license)
KP570 LTE TTCN-3 programming interface for 1xRTT & 1xEV-DO InterRAT test cases (software license)
KP577 TD-LTE TD-SCDMA IRAT stack extension (software license)
KP577 TD-LTE TD-SCDMA IRAT stack extension (company license)
KP588 LTE Stack Extension: Handover from LTE to 1xEV-DO
KP590 LTE Rel.8/9 beamforming TM7/8 stack extension (software license)
KP591 LTE Rel.9 PWS/ETWS, Public-/Earthquake and Tsunami Warning System, stack extension (software license)
KP592 LTE Rel.9 eMBMS stack extension (software license)
KP593 LTE R9 LBS stack extension (software license)
KP594 LTE Rel. 10 Stack extension, Carrier Aggregation, 2DL Component Carriers (software license)
KP595 LTE Rel. 10 Stack extension, eICIC (enhanced inter cell interference coordination) (software license)
KP596 LTE Rel. 10 Stack extension, Transmission Mode 9 (TM9) and 8x2 MIMO DL (software license)
KP597 LTE Rel. 10 Stack extension, Carrier Aggregation Uplink (software license)
KP750 TD-SCDMA stack extension (software license)
KP880 LTE Stack Extension: CDMA2000 1xEV-DO Support
KQ001 LTE TTCN-3 test adapter, sim.lib. for LTE USIM test cases (software license)
KQ002 LTE TTCN-3 test adapter, Sim. Lib. for LTE USAT Conformance test cases (software license)
KQ003 LTE TTCN-3 test adapter, Sim. Lib. for SIM Roaming test cases (software license)
KQ004 LTE TTCN-3 test adapter, sim. lib. for feature explorer app (Software-Lizenz)
KQ006 LTE TTCN-3 Test Adapter Sim. Lib. for SIM Roaming TD-SCDMA Test Cases 7Layers (software license)
KS170 Alerting network support, CMAS for WCDMA, generic feature (software license)
KS200
KS201 GSM Release 7 EDGE Evolution, signaling/network emulation, basic functionality
KS203 GSM Release 9 VAMOS, signaling/network emulation, basic functionality
KS210 GSM GPRS EDGE Release 6, signaling/network emulation, advanced functionality
KS211 GSM Release 7, signaling/network emulation, advanced functionality
KS400 Permanent CMW License: WCDMA Signaling
KS401 Permandent CMW license: WCDMA HSPA Signaling
KS403 WCDMA Release 7 HSPA+, SISO, signaling/network emulation,
KS404 Wcdma Release 8, Signaling/ Network Emulation, Basic Functionality
KS404 Wcdma Release 8, Signaling/ Network Emulation, Basic Functionality (Software License)
KS405 WCDMA Release 9 HSPA+, signaling/network emulation, basic functionality (software license)
KS410 WCDMA Release 99, signaling/network emulation, advanced functionality
KS411 WCDMA Release 5/6 HSPA, signaling/network emulation, advanced functionality
KS413 WCDMA Release 7 HSPA+, signaling/network emulation, advanced functionality
KS425 WCDMA, user defined bands, signaling/network emulation, generic feature
KS500 Permanent CMW license: LTE FDD Signaling
KS502 LTE FDD Release 10, Carrier Aggregation, signaling/network emulation, basic functionality (software license)
KS504 LTE FDD Release 12, signaling/network emulation, basic functionality.
KS510 LTE Release 8, SISO, signaling/network emulation,
KS512 LTE FDD Release 10, Carrier Aggregation, signaling/network emulation, advanced functionality (software license)
KS520 LTE MIMO2x2, signaling/network emulation, generic feature
KS521 LTE MIMO 4x2, downlink, signaling/network emulation, generic feature (software license)
KS525 LTE, user defined bands, signaling/network emulation, generic feature (software license)
KS550 Lte Tdd (Td-Lte) Release 8, Signaling/Network Emulation, Basic Functionality
KS550 Lte Tdd (Td-Lte) Release 8, Signaling/Network Emulation, Basic Functionality (Software License)
KS552 LTE TDD Release 10, Carrier Aggregation, signaling/network emulation, basic functionality (software license)
KS554 LTE TDD Release 12, signaling/network emulation, basic functionality.
KS590 LTE FDD/TDD MTC, eMTC signaling/network analyzer
KS600 Bluetooth®, signaling / connection setup, basic functionality (software license)
KS602 Bluetooth signaling/hands free audio profile, basic functionality.
KS603 Bluetooth signaling/A2DP audio profile basic functionality.
KS610 Bluetooth® Basic Rate/Enhanced Data Rate signaling / test mode support, basic fuctionality (software license)
KS650 Wlan Ieee 802.1a/B/G, Siso Signaling/Base Station Emulation, Basic Functionality (Software License)
KS651 Wlan Ieee 80211n, Signaling /Base Station Emulation, Basic Functionality (Software License)
KS656
KS660 WLAN IEEE 802.11a/b/g signaling/access point emulation, advanced functionality (software license)
KS670 WLAN IEEE 802.11n, MIMO 2x2 5 GHz band, DL MIMO / UL SISO, signaling/access point emulation, generic functionality (software license)
KS700 Permanent CMW license: Signaling (Base Station emulator), Mobile WiMAX (IEEE 802.16e)
KS701 Permanent CMW license: Signaling (Base Station Emulator) extension for R&D applications, WiMAX (IEEE 802.16e),
KS702 WiMAX# IEEE 802.16e MIMO 2x2, signaling/base station emulation, generic feature
KS750 TD-SCDMA Release 4, signaling/network emulation, basic signaling (software license)
KS760 TD-SCDMA Release 4, signaling / network emulation, advanced functionality (software license)
KS800 CDMA2000® 1xRTT, signaling/network emulation, basic functionality
KS810 CDMA2000® 1xRTT, signaling/network emulation, advanced functionality
KS880 CDMA2000® 1xEV-DO Revision 0/A, signaling/network emulation, basic functionality
KS881 Cdma2000? 1xev-Do Revision B, Signaling/Network Emulation, Basic Funktionality (Software License)
KS888 CDMA2000® 1xEV-DO/1xRTT Hybrid Mode, signaling/network emulation, generic feature (software license)
KS890 CDMA2000® 1xEV-DO Revision 0/A, signaling/network emulation, advanced functionality
KT001 Permanent CMW license: Protocol Testing Tool TTCN-2 Editor
KT002 Permanent CMW license: Protocol testing tool TTCN-2 Analyzer
KT003 Protocol Testing Tool TTCN-2 Compiler (software license)
KT004 Protocol Testing Tool TTCN3 Compiler and Editor
KT010 Permanent CMW license: PROJECT EXPLORER, test sequence execution management
KT011 Permanent CMW license: MESSAGE ANALYZER. Protocol message analysis
KT012 Permanent CMW license: MESSAGE COMPOSER. Protocol message editing
KT013 L1, Test GUI (software license)
KT014 Permanent CMW license: Protocol testing tool, Automation Manager
KT016 WCDMA Protocol Testing Monitor (software license)
KT017 LTE FDD Protocol testing monitor (Timed license, 12 months
KT019 Permanent CMW license: PICS/PIXIT Editor
KT020 Test Case Explorer
KT021 CMWmars, Message analyzer advanced (software license)
KT022 CMWcards, graphical test script definition tool (software license)
KT050 Cmw Run Sequencer Suite, Gsm, Wcdma, Lte, Cdma2000 1xrtt 1xev-Do, Wimax, Supports Basic Signaling Functions (Software License)
KT051 Permanent CMW license: CMWrun Sequencer Software Tool, General purpose Applications
KT053 CMWrun sequencer software tool, GSM and WCDMA applications
KT054 TD-SCDMA, R&S®CMWrun Sequenzer Software Tool (software license)
KT055 LTE, CMWrun sequencer software tool (software license)
KT057 Permanent CMW license: CMWrun Sequencer software tool, WiMAX applications
KT058 CDMA2000® 1xRTT/1xEV-DO, CMWrun sequencer software tool (software license)
KT100 CMWrun sequencer software tool, IP performance measurements (software license)
KT105 R&S®CMWrun sequenzer software tool, Audio/Video difference analysis with VTx instruments (software license)
KT150 PQA Multi Flow, IMS Enabling and analysis toolset (software license)
KT151 PQA power drain measurement (software license)
KT157 PQA Video Performance Measurement (software license)
KT400 WCDMA Throughput measurement and analysis toolset (software license)
KT405 WCDMA Call Performance Toolset (software license)
KT410 WCDMA Handover Throughput Recovery analysis toolset (software license) [New in production (20)]
KT425 WCDMA Dual Carrier Throughput analysis toolset (software license)
KT500 LTE Throughput measurement and analysis toolset (software license)
KT504 LTE FDD latency analysis toolset (software license)
KT505 LTE Mobility Performance analysis toolset (software license)
KT506 PQA InterRAT ANR Analysis (software license)
KT507 LTE PQA device aggression management analysis tool set (software license)
KT510 LTE Handover Throughput Recovery analysis toolset (software license)
KT530 LTE WCDMA Handover Throughput Recovery analysis toolset (software license)
KT535 LTE PQA SRVCC and VoLTE performance analysis toolset (software license)
KT540 LTE PQA Rel 10 carrier aggregation throughput analysis toolset (software license)
KT550 LTE TDD Throughput analysis toolset (software license)
KT555 Throughput Configuration Tool for LTE (software license)
KT560 LTE RRM measurement report analyses toolset (software license)
KT570 LTE OTDOA/eCID analyses toolset (software license)
KT650 WLAN IEEE 802.11 message analyzer software tool, online analysis, CMW based (software license)
KT700 Permanent CMW license: Message Analyzer software tool, WiMAX(IEEE802.16e) applications, online analysis,
KT950 R&S®CMWrun sequencer software tool, SEQUANS library 1, SEQUANS tools required in addition (software license)
KT960 R&S®CMWrun sequencer software tool, QUALCOMM® library 1, QUALCOMM® tools required in addition (software license)
KU540 LTE IOT at&t SRVCC E911 Protocol Tests (software license) [New in production (20)]
KU541 LTE IOT at&t ISIM Protocol Tests (software license)
KU542 LTE IOT at&t VoLTE Border protocol tests (software license)
KU574 LTE IOT VzW supplementary interband protocol tests (software license)
KV110 Waveforms for ARB generator, library 1 (software license)
KV112 Waveforms for ARB generator, library 2 (software license)
KV113 Waveforms for ARB generator, library 3 (software license)
KV114 Waveforms For Arb Generator, Library 2 (Software License)
KV114 Waveforms For Arb Generator, Library 4 (Company License)
KV114 Waveforms For Arb Generator, Library 4 (Software License)
KV115 Waveforms for ARB generator, library 5 (software license)
KV116 Waveforms for ARB generator, library 6 (software license)
KV118 Waveforms for ARB generator, library 8 (software license)
KV636 ISDB-T Brazil, waveforms for ARB generator, IQ stream with video/audio content (software license)
KV645 FM Stereo Radio, waveforms for ARB generator (software license)
KW010 Enable WinIQSIM2 waveforms for ARB generator, additional white gaussion noise / AWGN (software license)
KW200 Permanent CMW license: Enabling WinIQSIM2 Waveforms, GSM/EDGE
KW201 GSM Release 7 EDGE Evolution, enable WinIQSIM2 waveforms for ARB generator
KW400 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WCDMA
KW401 Permanent CMW license: Enabling WinIQSIM 2 Waveforms, WCDMA,HSDPA Extension of CMW-KW400
KW402 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WCDMA, HSUPA Extension of CMW-KW400
KW403 WCDMA Release 7 HSPA+, enable WinIQSIM2 waveforms for ARB generator
KW500 Permanent CMW license: Enabling WinIQSIM2 Waveforms EUTRA/LTE
KW610 Permanent CMW license: Enabling R&S WinIQSIM 2 Waveforms, BLUETOOTH
KW620 GPS, enable WinIQSIM2 waveforms for ARB generator
KW621 Glonass, enable WinIQSIM2 waveforms for ARB generator (software license)
KW622 Galileo, enable WinIQSIM2 waveforms for ARB generator (software license)
KW623 Compass/Beidou, enables WinIQSIM2 waveforms for ARB generator (software license)
KW630 Permanent CMW license: Enabling WinIQSIM2 Waveforms, DVB
KW650 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WLAN (IEEE 802.11a/b/g)
KW651 WLAN IEEE 802.11n, enable WinIQSIM2 waveforms for ARB generator
KW656 WLAN IEEE 802.11ac, enables WinIQSIM2 waveforms for ARB generator (software license)
KW700 Permanent CMW license: Enabling WinIQSIM2 Waveforms, WiMAX (IEEE 802.16)
KW750 Permanent CMW license: Enabling WinIQSIM2 Waveforms, TD-SCDMA
KW751 TD-SCDMA enhancement, enable WinIQSIM2 waveforms for ARB generator
KW800 Permanent CMW license: Enabling WinIQSIM2 Waveforms, CDMA2000®
KW880 Permanent CMW license: Enabling of WinIQSIM2 Waveforms, 1xEV-DO
P752 CMW270 WiMAX Communication Tester, Mainframe 01
PK010 Protocol test tools bundle (bundles R&S®CMW-KT010,012,014,016,017, 019,020 and 021) (software license)
PK10S Base software bundle for systems, includes : KT010, KT011, KT012, KT014, KAA20, KA100, KA150, KM050, KE100, KF400, KF500 (software license)
PK20 Gsm Call Box Bundle, Including Measurements R&S?Cmw-Km200/201 And Signaling R&S?Cmw-Ks200/201/203/210 (Software License)
PK364 6GHz Flat Rate, enabling extended frequency range 3.3GHz to 6GHz on up to 4 RF converters (TRXs), retrofittable in R&S service with UCS only (software license)
PK40 WCDMA call box bundle, inclding measurements : R&Su®CMW-KM400/401/403 und signaling : R&S®CMW-KS400/401/403/404/410/411/413 (software license)
PK400 WCDMA HSPA+ R7 64QAM/L2 enh. Throughput Test Suite (timed license, 12 month)
PK401 WCDMA stacks bundle for Rel. 7 and 8 (bundles R&S®CMW-KP401 - KP409) (software license)
PK40S WCDMA software bundle for systems, includes : KE400, KM400, KM401, KM403, KP401, KP402, KP403, KP404, KP405, KP406, KP408, KP440 (software license)
PK45 Application testing / IMS bundle, including : IP data interface R&S®CMW-KA100/150, measurements R&S®CMW-KM050/051, IMS services R&S®CMW-KAA20
PK50 Lte Call Box Bundle, Including Measurements R&S?Cmw-Km500/550 And Signaling R&S?Cmw-Ks500/510/520/550 (Software License)
PK500 Associated Signaling (network emulation) LTE FDD
PK505 LTE RRM 3GPP 36.521-3 Release 8 FDD Bundle for single mode test cases and InterRATs WCDMA/GSM/1xEVDO CMW-KC001/-KC002/-KC003/-KC004/-KC005
PK50S LTE software bundle for systems, includes : KE500, KM500, KM550, KP505, KP510, KP511, KP550, KP590, KP592 (software license)
PK532 InterRAT stack bundle for protocol test (bundles R&S®CMW-KP220,401-409,420,440, 505,510,511,514,520,530,550,590,591,593) (software license)
